WhatsApp: +8618266249928WhatsApp: +86182662499281.European CE standard electrical components
2.Siemens contactor and emergency stop switch.
3.Full steel gears feeding box controller by three handles.
4.Longitudinal and corss auto-feeding.
5.Milling head with scale to show the feeding depth Min.unit 0.01mm.
6.V type hardened guide way and leadscrew with protection cover.
7.Manual tailstock with double lock.

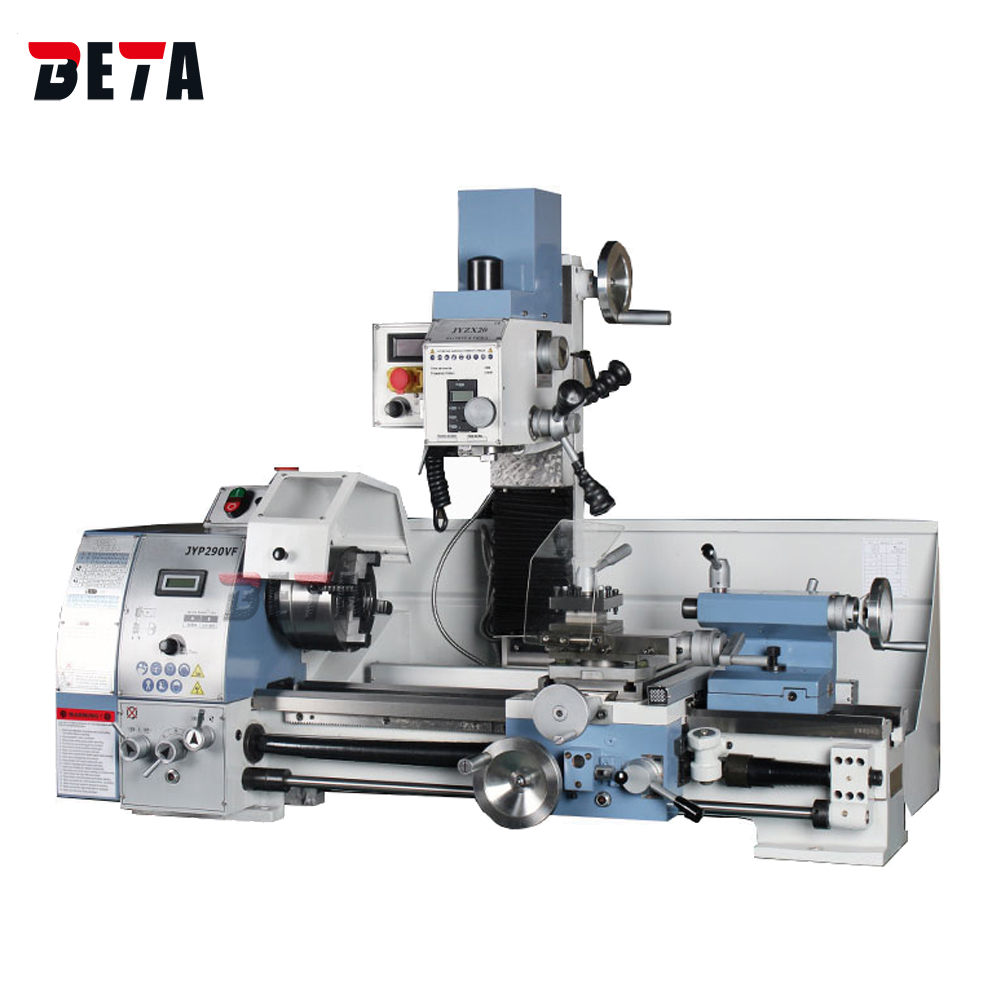

MODEL | JYP290VF |
Distance between centers | 700mm |
Swing over bed | 280mm |
Width of bed | 180mm |
Taper of spindle bore | MT5 |
Spindle bore | 38mm |
Number of spindle speeds | variable speed |
Range of spindle speeds | 50-1800rpm |
Range of longitudinal feeds | 0.07 -0.40mm /r |
Range of inch threads | 8-56T.P.I 21kinds |
Range of metric threads | 0.2 -3.5mm 18kinds |
Cross slide travel | 140mm |
Tailstock quill travel | 94mm |
Taper of tailstock quill | MT3 |
Motor | 1.1KW |
Packing size | 1400*750*1010mm |
Net /Gross weight | 208kg/245kg |
Milling drilling head | |
Drilling capacity | 20mm |
End milling capacity | 16mm |
Face milling capacity | 63mm |
Spindle travel | 50mm |
T-slot width | 10mm |
Spindle speed range | 50-2250rpm |
Motor power | 600W |
Voltage | as your requirements |
Standard accessories:
depth display,
rpm speed display,
tailstock,
3-jaw chuck,
change gears,
oil gun,
leadscrew cover,
toolpost cover,
wrenches & tool box
Optional accessories:
Coolant system
Work light
3-axis SINO digital readout
Europe quick change toolpost
steady rest
follow rest
live center
face plate
4-jaw chuck
drill chuck
drill bit
turning tools
milling collet
