Small manual lathe

JYP300VF

Max.swing over bed 300mm
Max.processing length 700mm
Spindle bore 38mm
Variable speed with 1.5kw frequency converter & inverter motor

INQUIRY

Features
Specification
CONFIGURATION

Features:

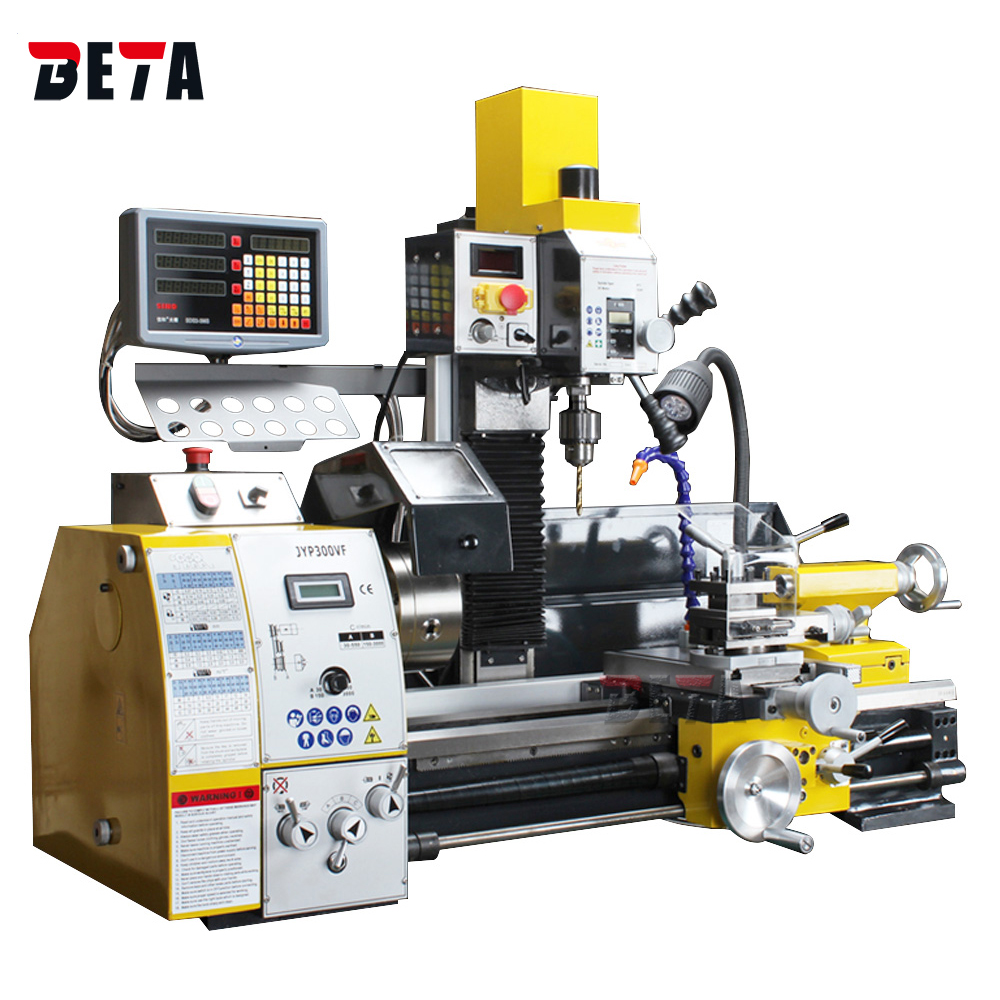

1.JYP300VF 3 in 1 lathe drilling and milling combo machine with a complete set of metal changing gears are equipped, can process metric thread of different pitch.

2.Adopt two ways of quick handle and screw to lock, effectively improve working efficiency.
3.Hardened V guide rail, the quenching depth is not less than 2mm, dust proof, oil proof, water proof.
4.With spindle speed RPM display screen, with famous brand 1.5kw frequency converter and 1.5kw inverter motor, convenient for processing.

MODEL	JYP300VF
Distance between centers	700mm
Swing over bed	300mm
Swing over cross slide	175mm
Width of bed	180mm
Taper of spindle bore	MT5
Spindle bore	38mm
Number of spindle speeds	frequency converter
Range of spindle speeds	30-3000rpm
Range of longitudinal feeds	0.07 -0.65mm /r
Range of inch threads	8-56T.P.I 21kinds
Range of metric threads	0.2 -3.5mm 18kinds
Top slide travel	80mm
Cross slide travel	140mm
Tailstock quill travel	94mm
Taper of tailstock quill	MT3
Motor	1.5KW
Packing size	14007501010mm
Net /Gross weight	208kg/245kg
Milling head spindle taper	MT2
Drilling capacity	20mm
End milling capacity	16mm
Face milling capacity	63mm
Spindle travel	50mm
T-slot width	10mm
Spindle speed range	50-2250rpm
Motor power	750W
Voltage	as your requirements
N.W./G.W.	300/340 kgs

Standard accessories:

DELTA 1.5kw frequency converter,

1.5kw inverter motor ,

depth display,

rpm speed display,

tailstock,

3-jaw chuck,

change gears,

oil gun,

leadscrew cover,

toolpost cover,

wrenches & tool box

Optional accessories:

Coolant system

Work light

3-axis SINO digital readout

Europe quick change toolpost

steady rest

follow rest

live center

face plate

4-jaw chuck

drill chuck

drill bit

turning tools

milling collet
