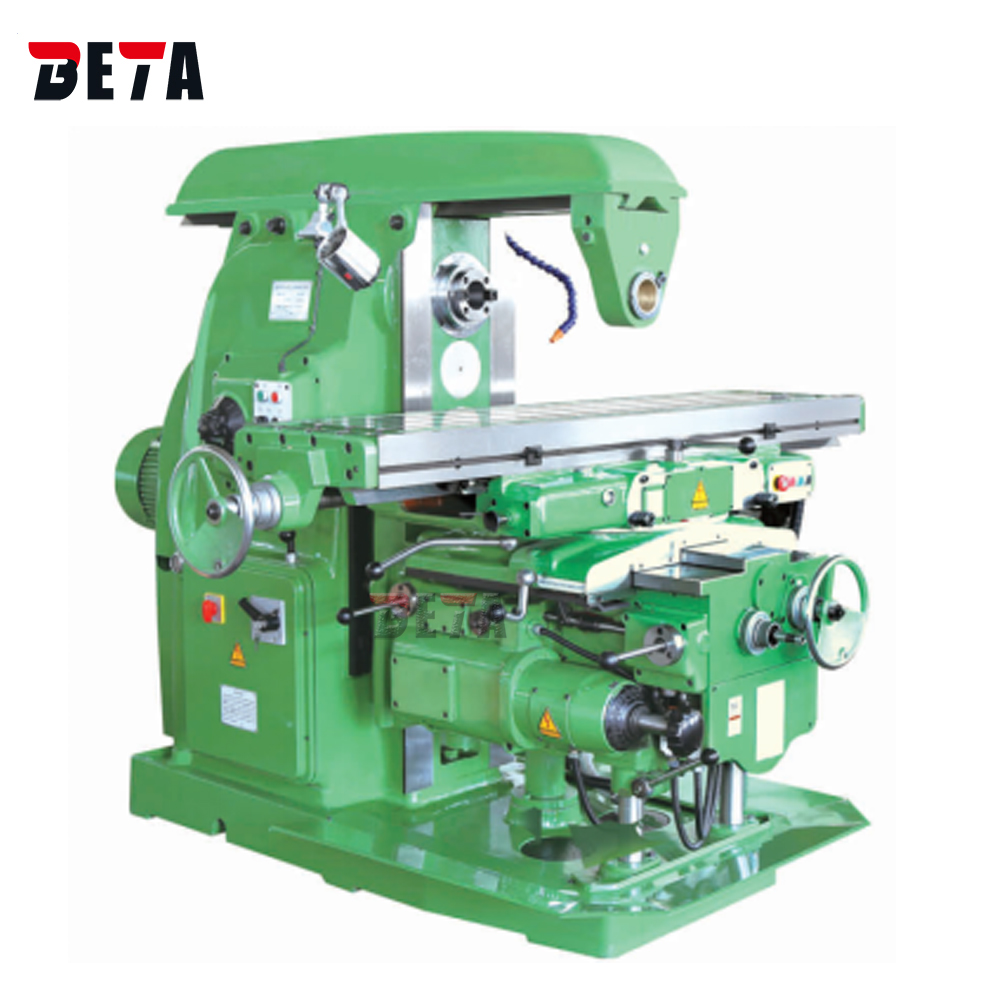

Horizontal milling machine

X6140

Horizontal milling
Worktable size 1700x400mm
Travel X/Y/Z axis 900/315/350mm
Spindle taper ISO50

1.Rectangular table guideways with high stability.

2.Hardened and ground table surface,guideways.

3.Automatic feeds on x,y axes,motorized lifting and lowering of table on z axis.

4.Worktable swivel angle ±45 degrees.

5.CE electrical componets.

Items	Unit	X6140	X6132
Table size	mm	1700x400	1320x320
No.of T-slots		3	3
Width of T-slots	mm	18	18
Max. Rotary angle of worktable	°	±45°	±45°
Max.load	kg	800	500
Longitudinal travel(manual/auto)	mm	900/800	700/680
Cross travel(manual/auto)	mm	315/300	255/244
Vertical travel(manual/auto)	mm	350/330	320/300
Table feed range（X/Y/Z）	mm/min	23.5-1180/23.5-1180/8-394	23.5-1180/15-786/8-394
Rapid feed speed	mm/min	2300/2300/770	2300/1533/770
Spindle taper		ISO50	ISO50
Spindle speed range	r/mm	30-1500	30-1500
Spindle speed step	steps	18 (steps)	18
Distance between spindle axis table surface	mm	30-380	215-470
Power of spindle motor	kw	11	7.5
Overall dimension(LXWXH)	mm	2556x2159x1770	2294x1770x1720
Net weight	kg	3850	2650

Standard accessories:

Horizontal milling cutter arbor

Horizontal milling drawbar

ISO50 milling chuck

ISO50 milling arbor

Taper sleeve

Foundation bolts

Double head wrench

Single head spaner

Inner hexagon spanner

Optional accessories:

Sino 3-DRO

vertical milling head

vice 160mm

dividing head F11125A

slotting head
