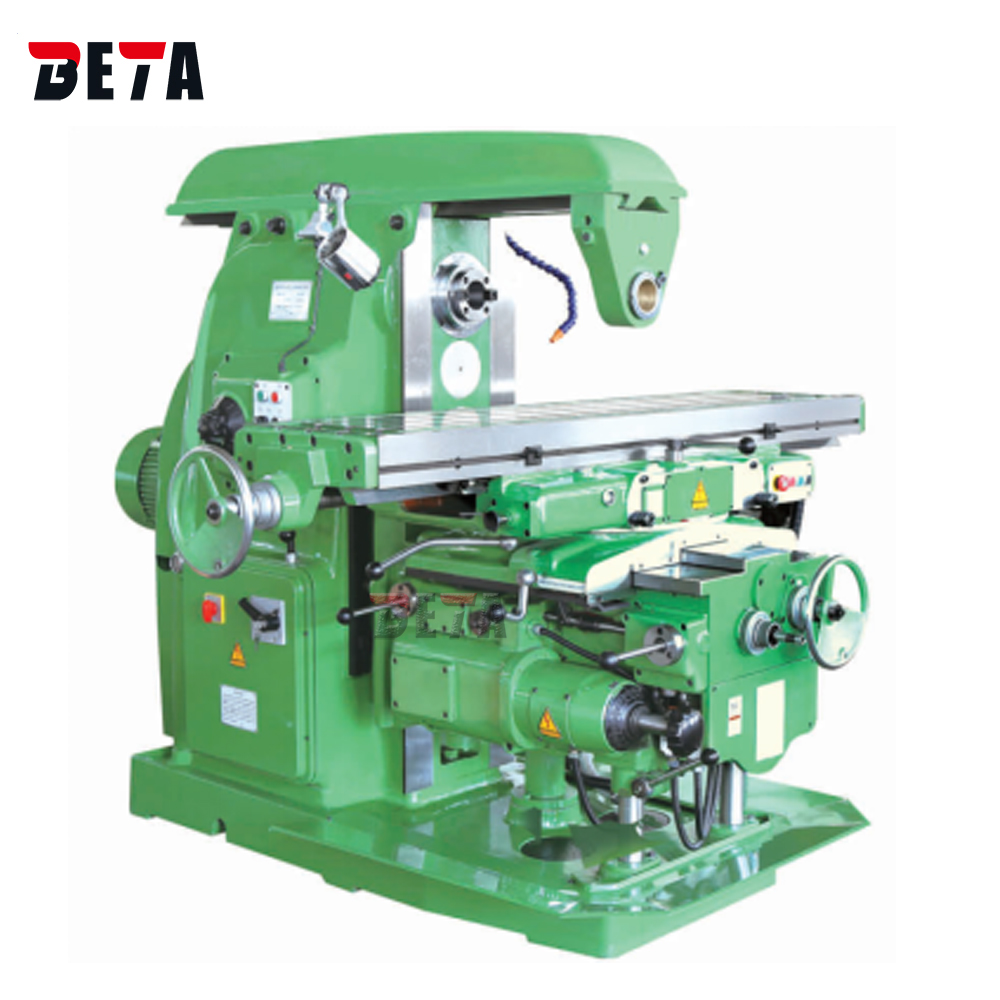

Horizontal milling machine

X6132

Horizontal milling
Worktable size 1320x320mm
Travel X/Y/Z axis 700/255/320mm
Spindle taper ISO50

1.Rectangular table guideways with high stability.

2.Hardened and ground table surface,guideways.

3.Automatic feeds on x,y axes,motorized lifting and lowering of table on z axis.

4.Worktable swivel angle ±45 degrees.

5.CE electrical componets.

Model	unit	X6132
Table size	mm	1320X320
T slot	no	3
Size ( Width )	mm	18
Centre distance	mm	70
Max. load of Table	kg	500
Max.swivel of table	degree	±45º
X axis table Longitudinal travel(manual/auto)	mm	700/680
Y axis table Cross travel (manual/auto)	mm	255/240
Z axis table Vertical travel(manual/auto)	mm	320/300
Spindle taper		iso50 7:24
Spindle speed /step	rpm	30-1500/18
Horizontal spindle axis to table surface	mm	30-350
Horizontal spindle axis to arm bottom	mm	155
Arm travel	mm	500
Longitudinal/cross feed	mm / min	23.5-1180/18
Vertical/step	mm/min	8-394/18
X/Y axis Longitudinal/cross rapid speed	mm / min	2300
Z axis Rapid Traverse vertical	mm/min	770
Main motor	kw	7.5
X/Y/Z feed motor	kw	1.5
Coolant motor	kw	0.125
Package dimension	mm	2160x1780x1990
Overall dimension	mm	2294x1770x1665
N.W./G.W.	kg	2650

Standard accessories:

Horizontal milling cutter arbor

Horizontal milling drawbar

ISO50 milling chuck

ISO50 milling arbor

Taper sleeve

Foundation bolts

Double head wrench

Single head spaner

Inner hexagon spanner

Optional accessories:

Sino 3-DRO

vertical milling head

vice 160mm

dividing head F11125A

slotting head
