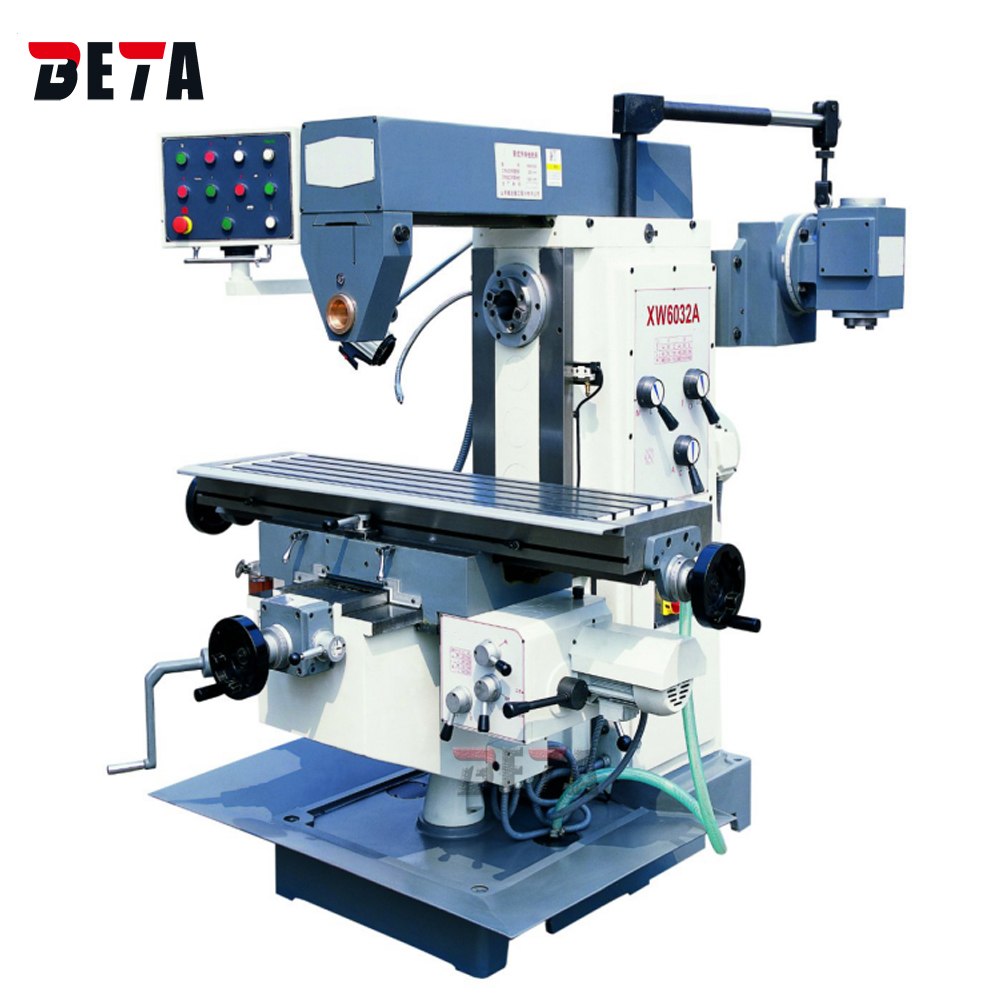

Horizontal milling machine

XW6032A

Horizontal milling, universal vertical milling head
Worktable size 1320x320mm
Travel X/Y/Z axis 800/300/400mm
Spindle taper ISO50
Z axis lifting motor

INQUIRY

Features
Specification
CONFIGURATION

1. Rectangular table guideways with high stability.

2. Hardened and ground table surface.

3. Automatic feeds on X,Y axes, motorized lifting and lowering of table on Z axis.

Model	Unit	XW6032A
Table size	mm	1320x320
T slot	no	5
Size ( Width )	mm	14
Centre distance	mm	63
Max. load of Table	kg	300
X axis table Longitudinal travel(manual/auto)	mm	800/750
Y axis table Cross travel (manual/auto)	mm	300
Z axis table Vertical travel(manual/auto)	mm	400
Spindle taper		7:24 iso50
spindle speed /step	rpm	58-1800/12
vertical spindle axis to column surface	mm	320
vertical spindle nose to table surface	mm	0-341
horizontal spindle axis to table surface	mm	0-400
horizontal spindle axis to arm bottom	mm	175
arm travel	mm	500
Longitudinal/cross feed	mm / min	20-360/8
Vertical/step	mm/min	400/1
Longitudinal/cross rapid speed	mm / min	1200
Rapid Traverse vertical	mm/min	400/1
main motor	kw	4
X/Y/Z feed motor	kw	0.55
(Z) feed motor	kw	0.75
coolant motor	kw	0.09
package dimension	mm	2070x1700x2250
overall dimension	mm	1900x1720x1750
N.W./G.W.	kg	2100/2300

Standard configuration:

Vertical head universal

Coolant system

Work light

Centrolized lubrication

milling chuck

horizontal milling arbor

draw bar

Chip tray for base

Optional configuration:

Dividing head

Slotting head strok

Collet chuck

3 axis DRO

Table guard
