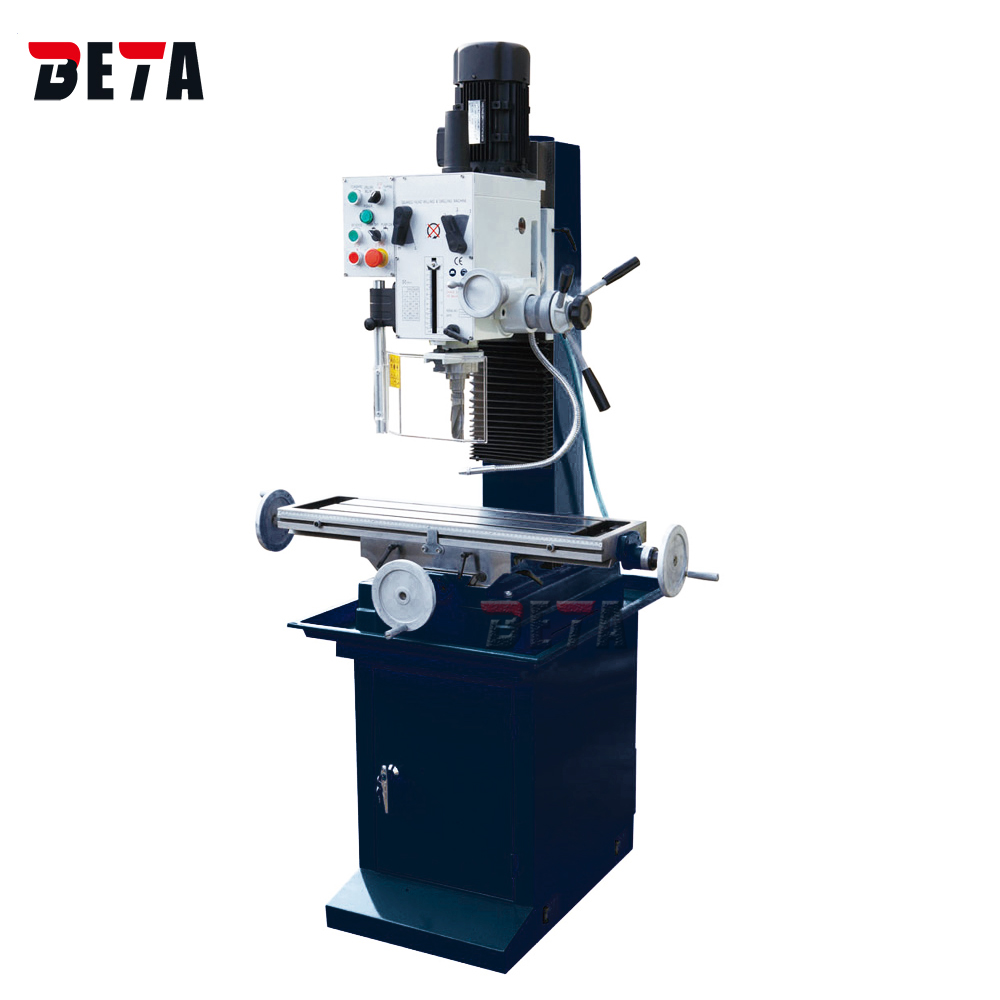

ZX45-Milling drilling machine-TENGZHOU BETA CO.,LTD.

Milling drilling machine

ZX45

drilling milling tapping boring multi-function
Headstock can swivel ±45°
Worktable size 800x240mm

INQUIRY

Features
Specification
CONFIGURATION

1.Milling, drilling, tapping, boring, reaming

2.Head swivels or tilts

3.Spindle micro feed(Auto-feed option)

4.Heavy-duty tapered roller bearing spindle

5.Spindle can be locked, headstock power down feed

6.Adjustable gibs on table

7.Adjustable stops on table

8.Gear drive headstock

9.Accurate position, good rigidity, big cutting power

Model	ZX45
Max.drilling capacity(Iron/Steel)	45/32 mm
Max.milling capacity(Face milling)	80 mm
Max.milling capacity(End milling)	32 mm
Work table size	800x240 mm
Working table Cross/longitudinal travel	190mm/560mm
Spindle taper	MT4 or R8
Spindle travel	120 mm
Spindle speed	75, 170 ,280, 540, 960,1600 rpm
Max. distance spindle to table	460 mm
Head tilt left/right	±45°
Power and speed of motor	1.5 kw 1450 rpm
NW/GW	325/350 kgs
Packing size	850x760x1150 mm

Standard accessories:

Draw bar
Adapter
Taper shank for drilling chuck
Drilling chuck
T slot bolt
Washer
Nut
Tilted wedge
Spanner
Oil gun

Optional accessories:

Spindle box automatic lifting
Spindle power feed
Table power feed (X-axis)
Halogen working lamp
Stand (casting)
Stand (steel plate)
Cooling pump
Power off protective cover(CE)
Digital readout 3 axis
Tapping function
Double speed motor
Electronic depth display
