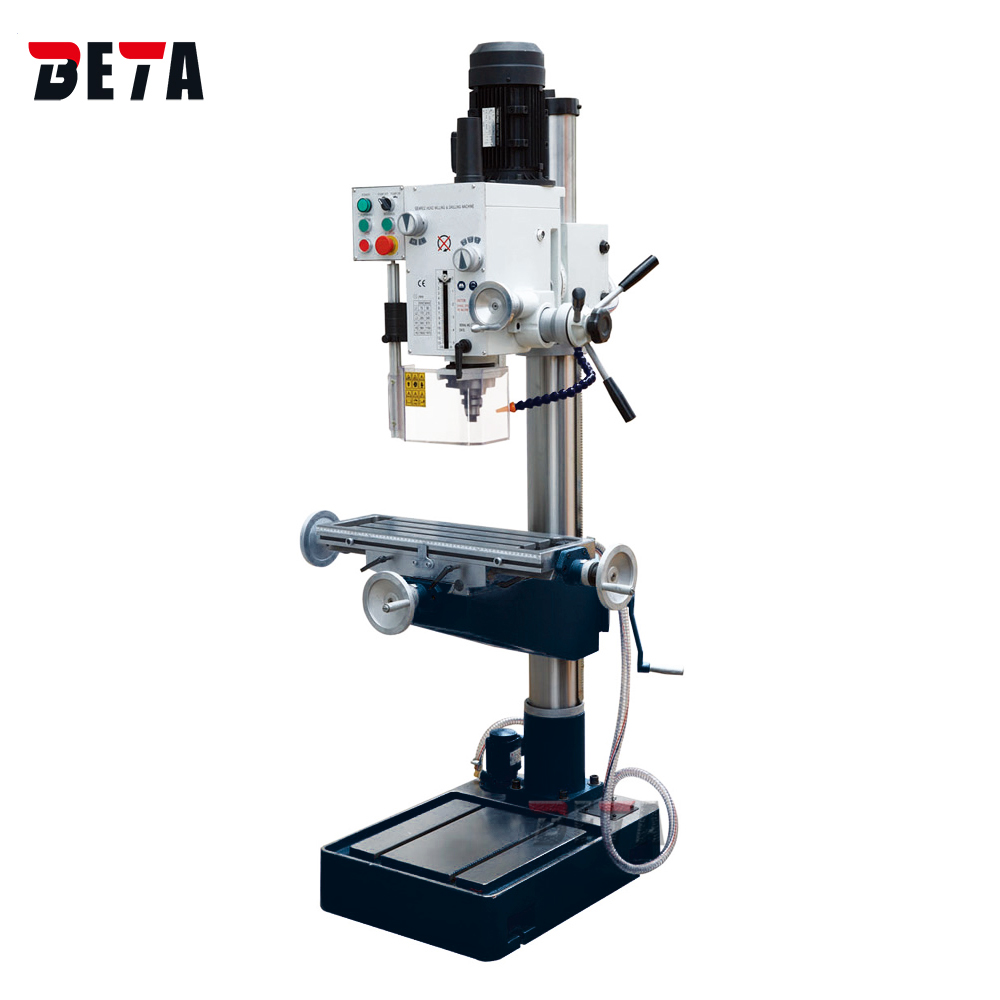

ZX40H-Milling drilling machine-TENGZHOU BETA CO.,LTD.

Milling drilling machine

ZX40H

Head can swivel 360°
Worktable size 600x190mm

Features
Specification
CONFIGURATION

1. Milling, drilling, tapping, boring, reaming.

2. Head swivels 360°

3. Spindle micro feed(Auto-feed option)
4. Head worktable up and down vertically

5. Super high column
6. Micro feed precision

7. Heavy-duty tapered roller bearing spindle
8. Positive spindle on table

9. Gear drive, lower noise

Model	ZX40H
Max.drilling capacity	31.5mm(MT3) 40mm(MT4)
Max. end milling capacity	32 mm
Max.distance spindle nose to work table	610 mm
Max.distance nose to base	1180 mm
Work table size	600x190 mm / 730x210 mm(optional)
Work table travel	370mm(X) 180mm(Y)
Spindle taper	MT3 MT4 R8
Spindle travel	120 mm
Spindle speed(6steps)	75-1600 rpm (50HZ)
Diameter of column	115 mm
Dimension of base	650x450 mm / 670x470 mm (water tank)
Distance spindle-column	278 mm
Motor power	1.5 kw
NW/GW	350/385 kgs
Packing size	830x760x1870 mm

Standard accessories:

Draw bar
Adapter
Taper shank for drilling chuck
Drilling chuck
T slot bolt
Washer
Nut
Tilted wedge
Spanner
Oil gun

Optional accessories:

Spindle power feed
Table power feed (X-axis)
Halogen working lamp
Cooling pump
Power off protective cover(CE)
Tapping function
Double speed motor
Electronic depth display
