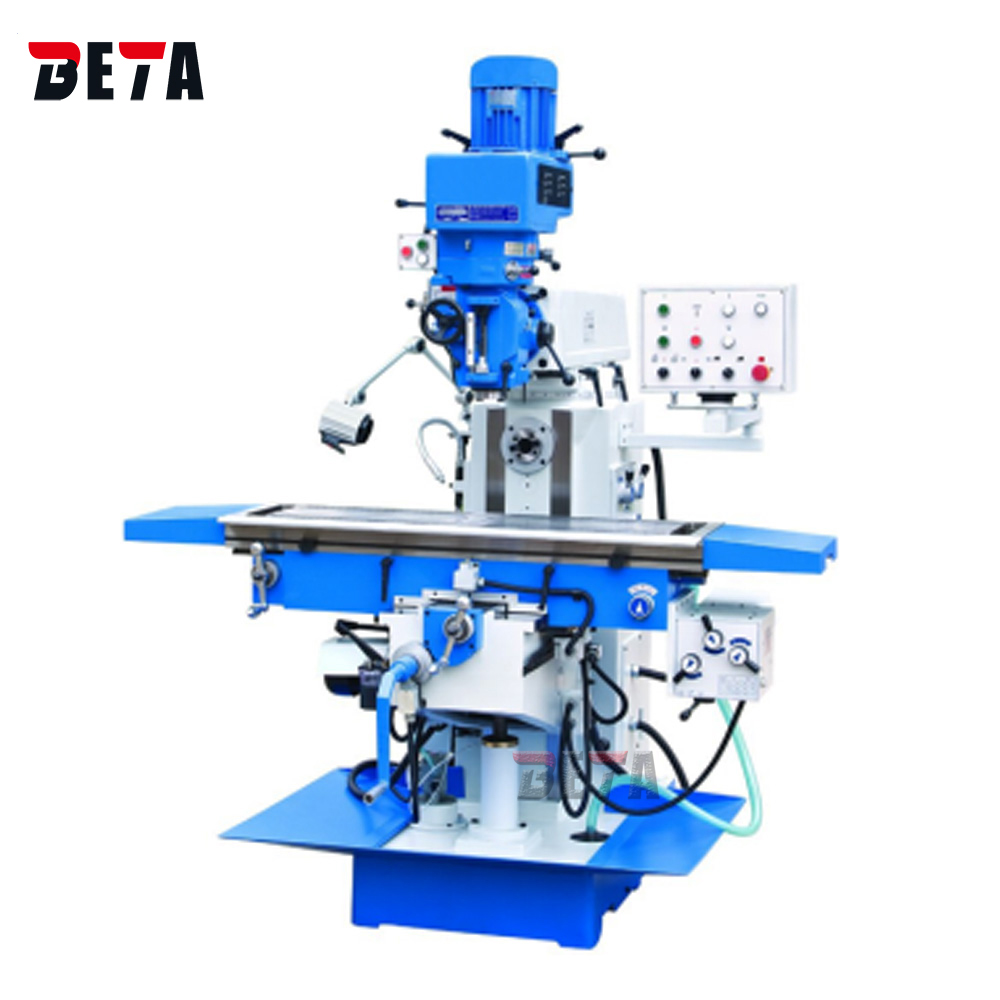

Milling drilling machine

X6332C

Vertical and horizontal milling
Worktable size 1250x320mm
Travel X/Y/Z axis 800/300/350mm

1. Vertical and horizontal drilling milling.

2. X/Y axis mechanical feeding, Z axis motor lifting.

3. With CE standard electrical components.

4. 5HP milling head can swivel ± 45 degree.

5. Multi-function milling, drilling, tapping.

Model	Unit	X6332C
Table size	mm	1250x320
T slot	no	5
T Size ( Width )	mm	14
T Centre distance	mm	70
Max. load of Table	kg	300
Table Longitudinal travel(manual/auto)	mm	800
Table Cross travel (manual/auto)	mm	300
Table Vertical travel(manual/auto)	mm	350
Spindle taper		ISO40
Spindle speed /step -- Vertical	rpm	70-3620/10steps
--Horizontal	rpm	60-1350/12steps
Max.drilling dia.	mm	30
Max.end milling width	mm	125
Max. vertical milling Dia.	mm	25
Max.tapping dia.	mm	10(steel)
Quill travel	mm	127
Swivel angle of headstock	degree	±45º
Vertical spindle axis to column surface	mm	150-550
Vertical spindle nose to table surface	mm	150-500
Horizontal spindle axis to table surface	mm	0-350
Horizontal spindle axis to arm bottom	mm	190
Arm travel	mm	400
X/Y axis Longitudinal/cross feed	mm / min	15-370/8steps
Z axis Vertical/step	mm/min	575/1step
X/Y axis Longitudinal/cross rapid speed	mm / min	575
Z- axis Rapid Traverse vertical	mm/min	575
Automatic spindle feed		0.04/0.08/0.15
Main motor	kw	3.7(V), 2.2(H)
X/Y/Z axis feed motor	kw	0.75(X/Y/Z)
Coolant motor	kw	0.04
Package dimension	mm	160016202250
N.W./G.W.	kg	1650/1850

Standard accessories:

Work lamp

coolant system

CE standard electric
Taiwan 5HP milling head

Emergency stop

Hanging control panel

Drill chuck

Milling chuck

Draw bar

Milling arbor

ISO40 spindle

Optional accessories:

SINO DRO 3-axis

Spindle cover

Machine vice

Rotary worktable

Universal dividing head
