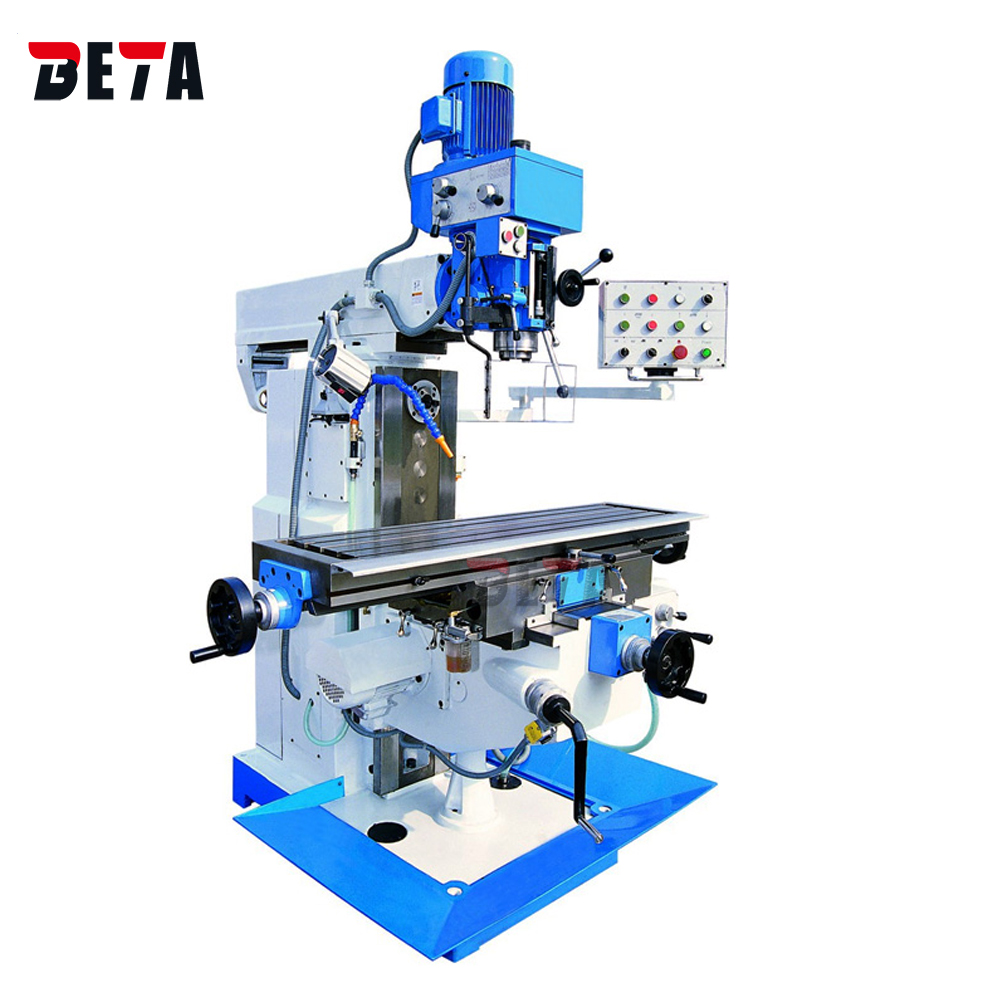

X6332Z-Milling drilling machine-TENGZHOU BETA CO.,LTD.

Milling drilling machine

X6332Z

Horizontal and vertical drilling milling
Worktable size 1320x320mm
Spindle taper ISO40
Travel X/Y/Z axis 800/300/400mm
Headstock swivel ±45 degree

1. Vertical and horizontal drilling milling.

2. X/Y axis mechanical feeding, Z axis motor lifting.

3. With CE standard electrical components.

4. 3HP milling head can swivel ± 45 degree.

5. Multi-function milling, drilling, tapping.

Model	unit	X6332Z
Table size	mm	1320X320
T slot /Size (Width) /Centre distance	no	5/14/63
Max. load of Table	kg	300
X axis table Longitudinal travel (manual/auto)	mm	800/750
Y axis table Cross travel (manual/auto)	mm	300
Z axis table Vertical travel (manual/auto)	mm	400
Spindle taper		ISO40
spindle speed /step -- Vertical	rpm	90-2000/8
--Horizontal	rpm	38-1310/12
Max.drilling dia.	mm	30
Max.end milling width	mm	125
Max. vertical milling Dia.	mm	25
Max.tapping dia.	mm	10(steel)
Quill travel	mm	120
Swivel angle of headstock	degree	±45º
Vertical spindle axis to column surface	mm	200-540
Vertical spindle nose to table surface	mm	180-610
Horizontal spindle axis to table surface	mm	0-350
Horizontal spindle axis to arm bottom	mm	175
Arm travel	mm	400
X/Y axis longitudinal/cross feed	mm / min	20-360/8steps
Z axis vertical/step	mm/min	422/1step
X/Y axis longitudinal/cross rapid speed	mm / min	1200
Z rapid traverse vertical	mm/min	422
Automatic spindle feed		0.08/0.15/0.25
Main motor	kw	2.2
X/Y/Z axis feed motor	kw	0.55(X/Y),0.75(Z)
Coolant motor	kw	0.09
Overall dimension	mm	171017202330
N.W./G.W.	kg	2000/2200

Standard accessories:

Drilling & milling machine

Drill chuck

Spindle arbor

Wedge shifter

Reduction sleeve

Milling collect

Horizontal milling arbor

Draw bar

Work light

Cooling system

X/Y axis mechanical feed

Z axis electric lifting

Optional accessories:

Worktable swivel

3-axis SINO DRO

Air draw bar

Spindle cover

Machine vice

Rotary worktable

Universal dividing head

1600mm worktable length
