1. Complete with automatic table feed in x- and y-axis including rapid feed.
2. Surface treated, large table includes T-slots.
3. Heavy cast-iron machine stand eliminates vibrations.
4. Dovetail guiding in all three axes - adjustable by gibs.
5. Positioning motor for z-axis comes standard.
6. Wide speed and feed range.
7. Ideal for single and small-series production.
8. Tapered roller bearings ensure high concentricity.
9. Left and rigth rotation allows thread cutting.

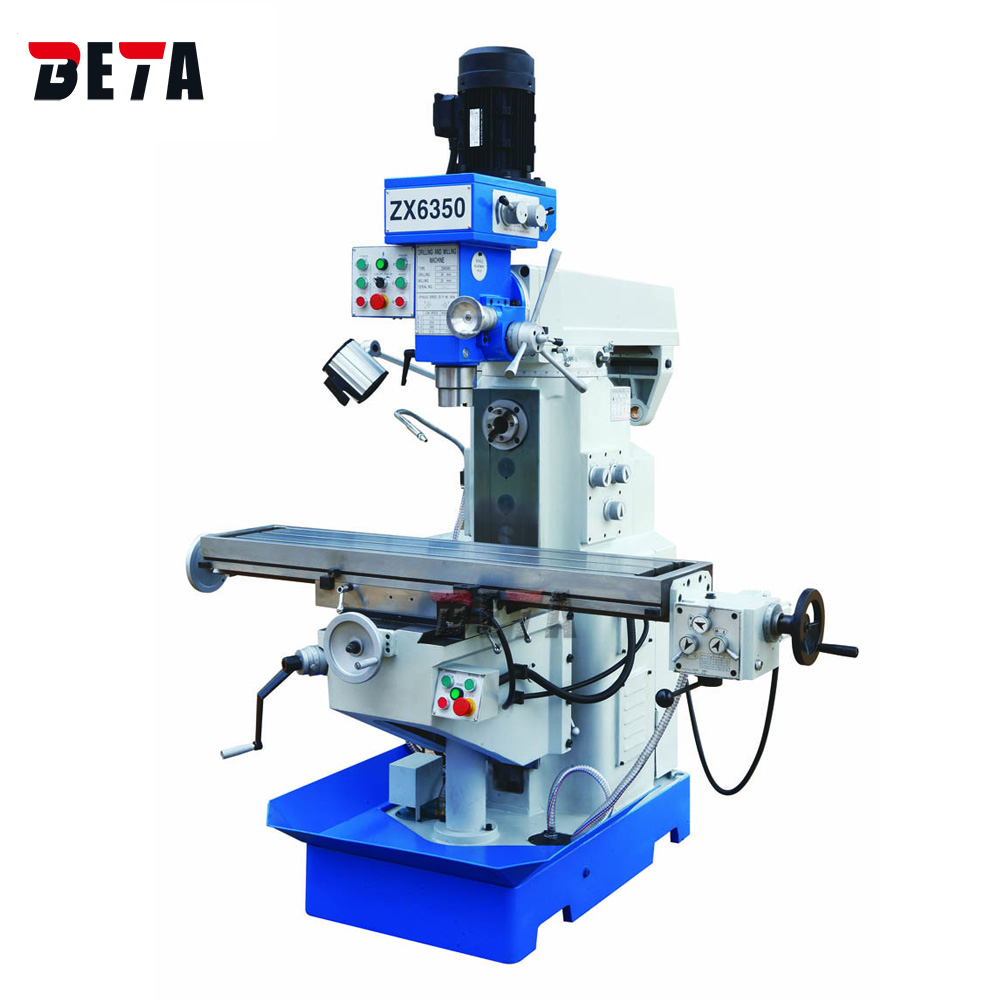

| Model | ZX6350C | ZX6350Z |
| Table size | 280*1120/280*1270mm | 280*1120/280*1270mm |
| Longitudinal travel | 600/750mm | 600/750mm |
| Cross travel | 270mm | 270mm |
| Vertical travel | 360mm | 360mm |
| T-slot No. and size | 3*16 5*14 | 3*16 5*14 |
| Distance between spindle axis and column surface | 200-600mm | 230-630mm |
| Distane from spindle nose to table surface | 65-425mm | 120-480mm |
| Spindle hole taper | ISO40/ISO30/R8/MT4 | ISO40/ISO30/R8/MT4 |
| Spindle travel | 120mm | 120mm |
| Spindle speed range(50HZ/60HZ) | 115-1750/140-2100rpm(V) | 90-2000/108-2400rpm(V) |
| 40-1300/48-1560rpm(H) | 40-1300/48-1560rpm(H) | |
| Spindle motor power | 0.85/1.5kw (V) 2.2kw(H) | 2.2kw (V) 2.2kw(H) |
| Head swivel | ±45° | ±45° |
| Packing size | 1600*1360*2240mm | 1700*1360*2240mm |
| N.W./G.W. | 1300/1400 kg | 1350/1450 kg |
Standard accessories:
Draw bar
Adapter
Taper shank for drilling chuck
Drilling chuck
T slot bolt
Washer
Nut
Tilted wedge
Spanner
Inner hexagonal spanner
Horizontal milling bar
Oil gun
Optional accessories:
Halogen working lamp
Cooling pump
Digital display 3 axis
Milling chuck set(8pcs/set)
Machine Vise（160mm）
