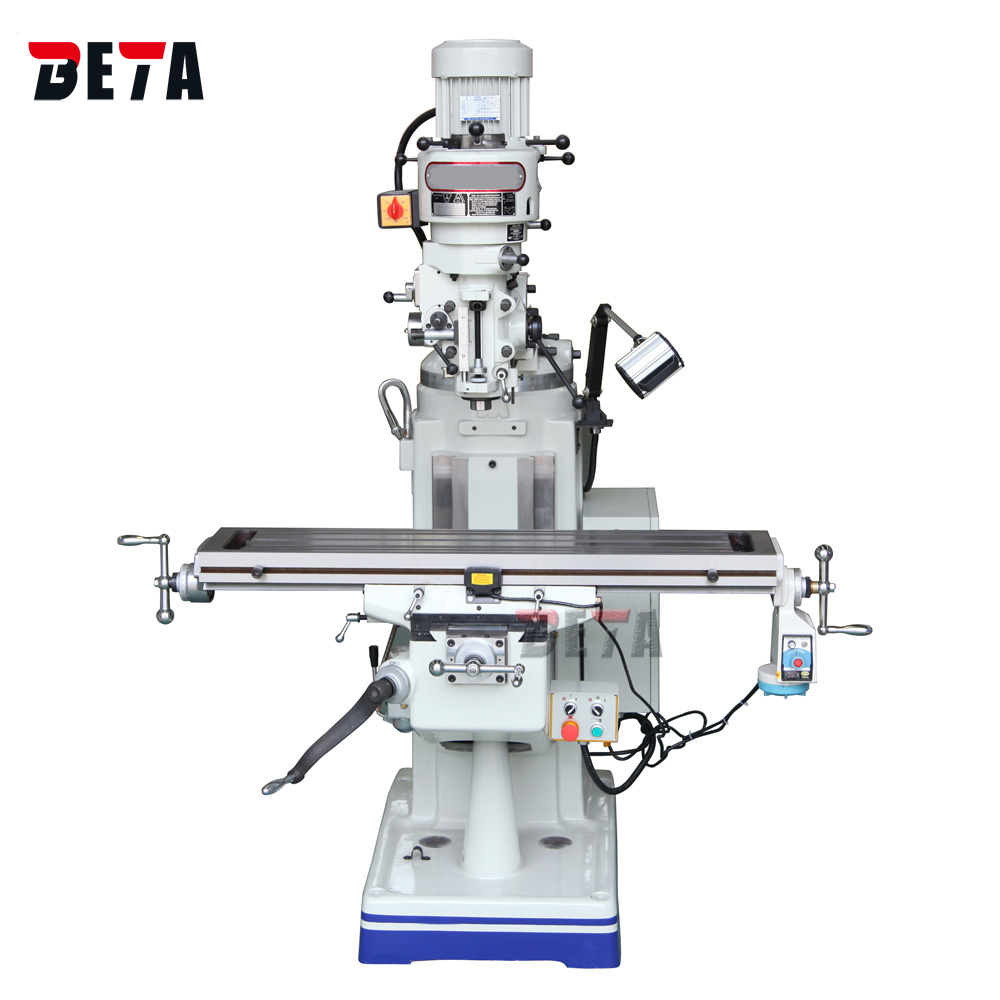

Turret milling machine

X6323A

3HP Taiwan turret milling head
Step spindle speed - standard, variable speed - optional
Worktable size 230x1067mm, 230x1246mm
Spindle taper R8 standard, ISO30/ISO40 is optional
Head swivel 90 degree, tilt 45 degree

INQUIRY

Features
Specification
CONFIGURATION

1.High rigidity and quality casting iron, and saddle guide-way is coated by TF-material.

2.16 speed milling head made in Taiwan, variable speed milling head and inverter milling head can be equipped as optional accessories.

3.X/Y/Z-axisscrew are made in Taiwan with good smooth and reliable features.

4.Table surface is treated specially to harden HRC45-55.

5.X/Y/Z-axisguide way surface are treated specially to harden HRC45-55.

Model	unit	X6323A	X6323B
Table size	mm	230×1067（9×42”）
		230×1246（9×49”）
T-slot		16mm×3
Longitudinal travel	mm	670 (850)
Cross travel	mm	310
Vertical travel	mm	390
Ram travel	mm	315
Distance from spindle nose to table surface	mm	0~380
Spindle taper		R8 (optional NT30, NT40)
Quill travel	mm	127
Spindle speed	r/min	Standard 16 steps: 65-4500 (50HZ); 80-5440 (60HZ)
		Optional variable speed: 60~4200.
Quill auto. feed	mm/rev.	0.04 / 0.08 / 0.15
Spindle motor	Hp	3
Headstock swivel	degree	±90º
Headstock tilting	degree	±45º
Floor space	mm	2200×1600×2000
Machine weight	Kg	1000	1060

Standard accessories:

With R8 spindle,

3HP step speed milling head,

Lead screw from Taiwan,

milling head from Taiwan,

guide way with Turcite B cover,

spindle bearing with P4 class ,

Cooling system,

Work light,

Tool and tool box

Optional accessories:

SINO DRO 3 axis

ISO30/ISO40 spindle taper

Power feed

Variable speed milling head

Vertical lifting motor

Air draw bar

Automatic lubrication pump

Milling chuck

Ball screw for X/Y axis

Hanging control panel

Machine vice

Spindle cover
