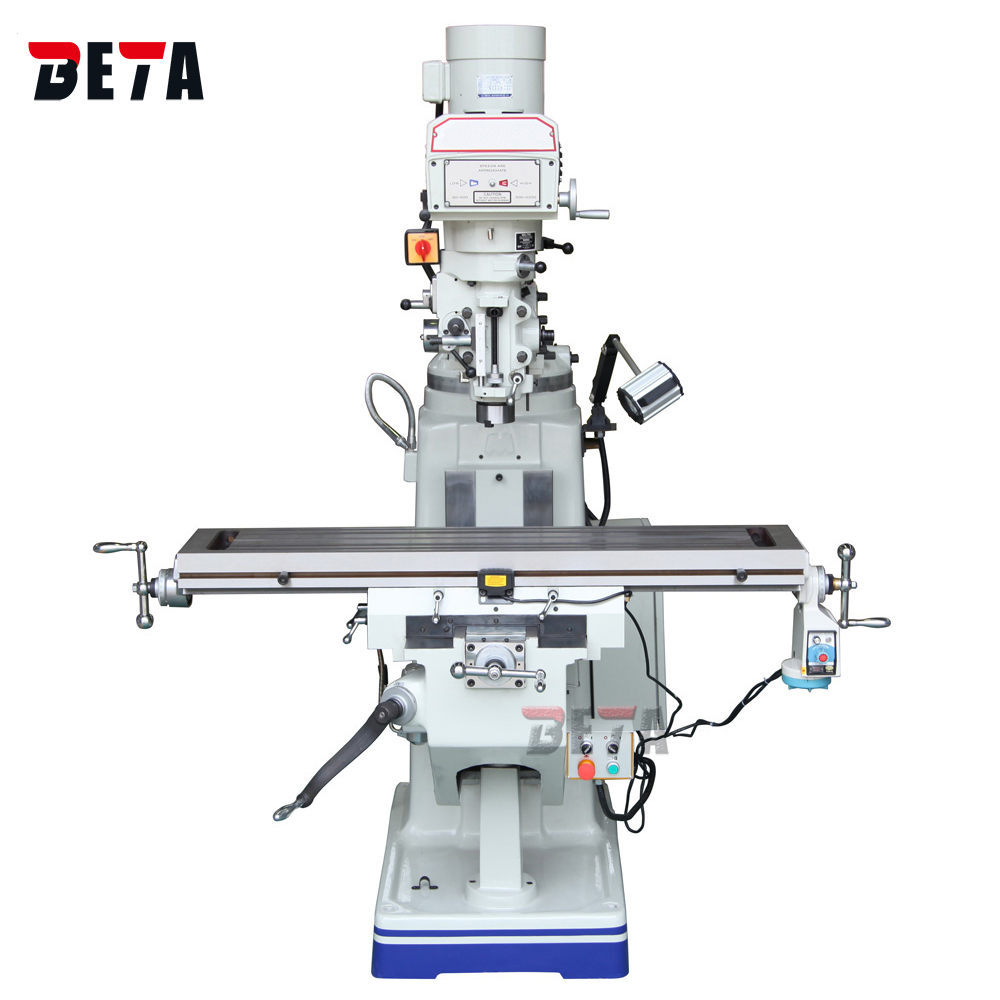

Turret milling machine

X6325

3HP Taiwan turret milling head
Step spindle speed - standard, variable speed - optional
Worktable size 254x1270mm, 254x1370mm
Spindle taper R8 standard, ISO30/ISO40 is optional
Head swivel 90 degree, tilt 45 degree

INQUIRY

Features
Specification
CONFIGURATION

1.High rigidity and quality casting iron, and saddle guide-way is coated by TF-material.

2.16 speed milling head made in Taiwan, variable speed milling head and inverter milling head can be equipped as optional accessories.

3.X/Y/Z-axisscrew are made in Taiwan with good smooth and reliable features.

4.Table surface is treated specially to harden HRC45-55.

5.X/Y/Z-axisguide way surface are treated specially to harden HRC45-55.

Model		X6325	X6325A	X6325B
Table size	mm	254×1270(10"×50") 254×1370(10"×54")
Long travel	mm	820 920	800 900	820 920
Cross travel	mm	410 380
Vertical travel	mm	400 350
T-slot No.and size	mm	3×16
Ram travel	mm	470
Distance from spindle nose to table surface	mm	0-400
Spindle hole taper		(standard):ISO40
Spindle travel	mm	127
Spindle speed	rmp	(standard):(shiftgrade)50HZ65-4500 60HZ:80-5440
		(optional):(variable)60-4200
Auto.quill feed		(threesteps):0.04(0.0015")/0.08(0.003")/0.15(0.006")mm/revolution
Spindle motor	KW	2.2KW/3HP
Head swivel	°	90°
Head tilting	°	45°
Dimension of package	mm	One miller per case	1516×1550×2080
		Two miller per case	1650×1790×2170
		Three miller per case	1650×2285×2235
G.W/set	KG	1320	1280	1320

Standard accessories:

With R8 spindle,

3HP step speed milling head,

Lead screw from Taiwan,

milling head from Taiwan,

guide way with Turcite B cover,

spindle bearing with P4 class ,

Cooling system,

Work light,

Tool and tool box

Optional accessories:

SINO DRO 3 axis

ISO30/ISO40 spindle taper

Power feed

Variable speed milling head

Vertical lifting motor

Air draw bar

Automatic lubrication pump

Milling chuck

Ball screw for X/Y axis

Hanging control panel

Machine vice

Spindle cover
