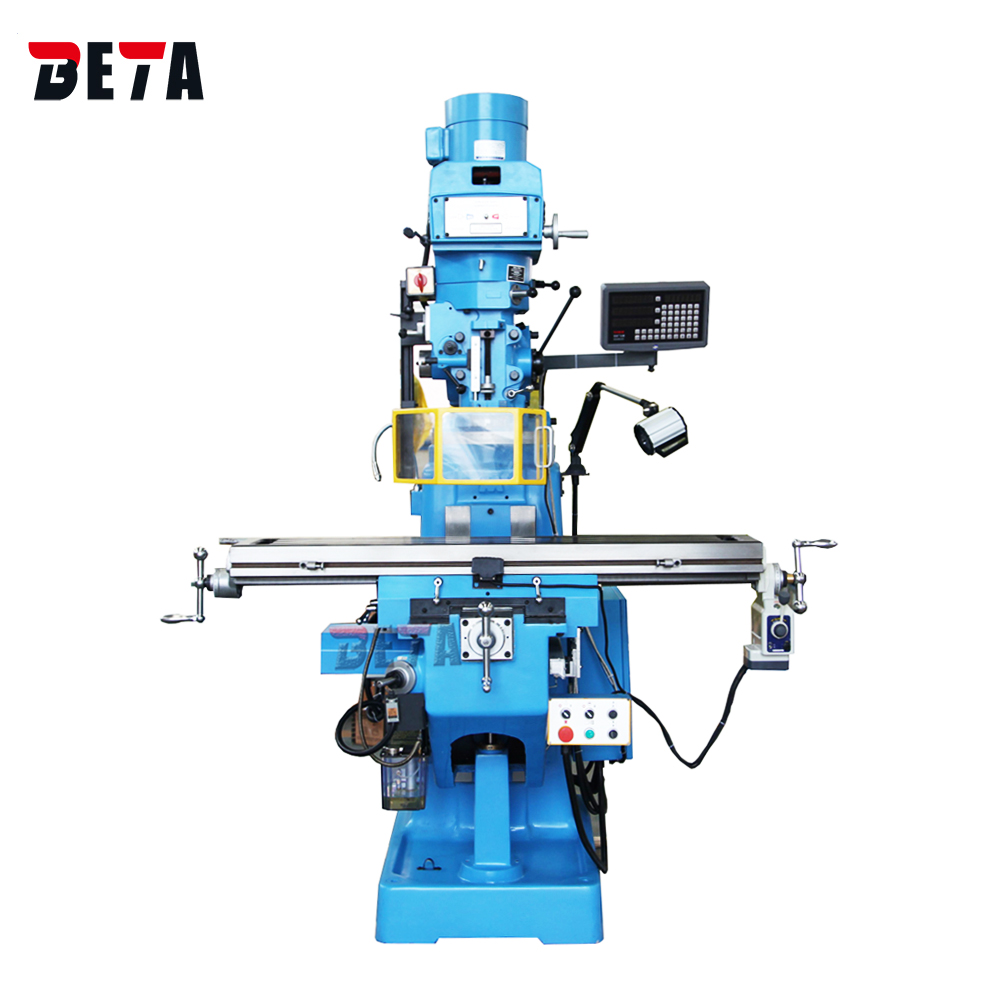

Turret milling machine

X6325D

5HP Taiwan turret milling head
Step spindle speed - standard, variable speed - optional
Worktable size 254x1270mm, 254x1370mm
Spindle taper ISO40

1.High rigidity and quality casting iron, and saddle guide-way is coated by TF-material.

2.16 speed milling head made in Taiwan, variable speed milling head and inverter milling head can be equipped as optional accessories.

3.X/Y/Z-axis screw are made in Taiwan with good smooth and reliable features.

4.Table surface is treated specially to harden HRC45-55.

5.X/Y/Z-axisguide way surface are treated specially to harden HRC45-55.

6.Standard electrical box with domestic brand electronics components, we also can select optional SIEMENS and SCHNEIDER brand.

Model		X6325C	X6325D
Table size	mm	254×1270(10"×50") 254×1370(10"×54")
Long travel	mm	820 920
Cross travel	mm	410
Vertical travel	mm	400
T-slot No.and size	mm	3×16
Ram travel	mm	470
Distance from spindle nose to table surface	mm	0-400
Spindle hole taper		(standard):ISO40
Spindle travel	mm	127
Spindle speed	rmp	(standard):(shiftgrade)50HZ65-4500 60HZ:80-5440
		(optional):(variable)65-3750
Auto.quill feed		(threesteps):0.04(0.0015")/0.08(0.003")/0.15(0.006")mm/revolution
Spindle motor	kw	3.7 kw/5HP
Head swivel	°	90°
Head tilting	°	FIX	45°
Dimension of package	mm	One miller per case	1516×1550×2080
		Two miller per case	1650×1790×2170
G.W/set	kg	1490

Standard accessories:

With ISO40 spindle,

5HP step speed milling head,

Lead screw from Taiwan,

milling head from Taiwan,

guide way with Turcite B cover,

spindle bearing with P4 class ,

Cooling system,

Work light,

Tool and tool box

Optional accessories:

SINO DRO 3 axis

Power feed

Variable speed milling head

Vertical lifting motor

Air draw bar

Automatic lubrication pump

Milling chuck

Ball screw for X/Y axis

Hanging control panel

Machine vice

Spindle cover
