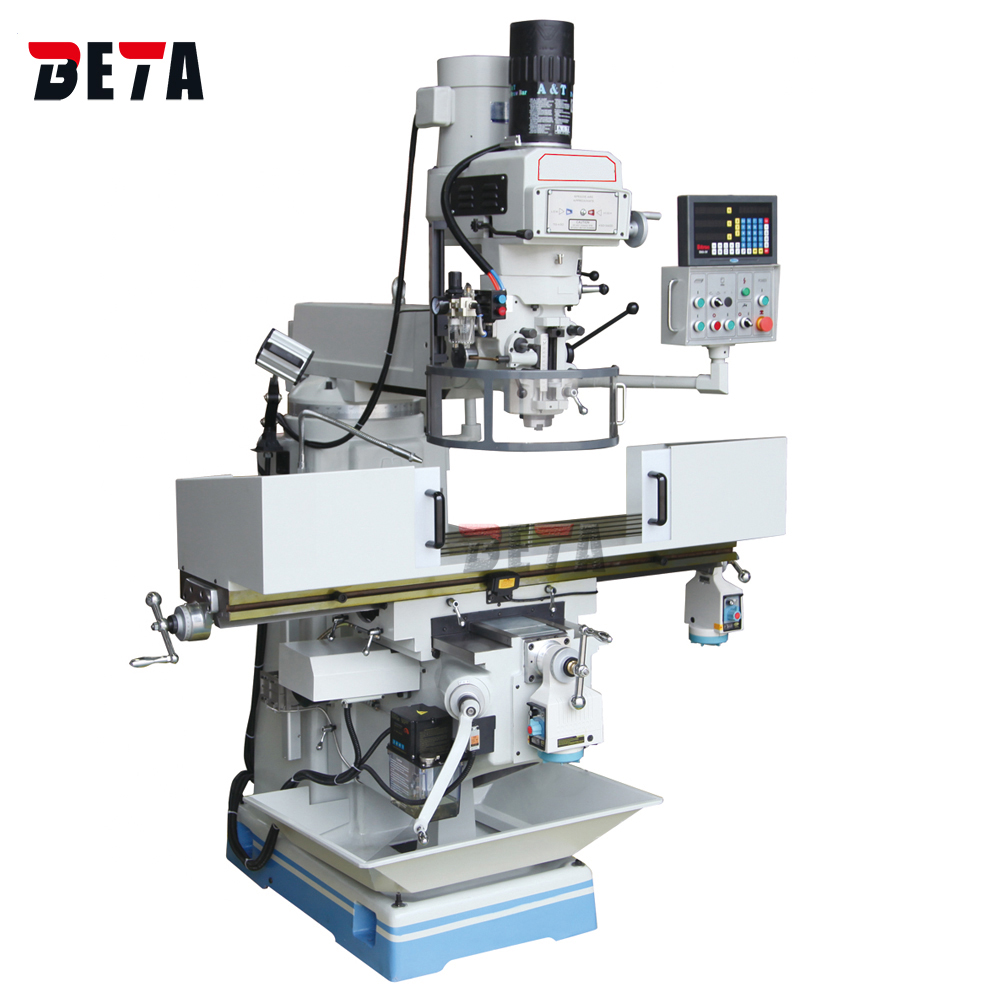

Turret milling machine

X6333

5HP Taiwan turret milling head
Step spindle speed - standard, variable speed - optional
Worktable size 330x1370mm, 330x1500mm
Spindle taper ISO40

1.High rigidity and quality casting iron, and saddle guide-way is coated by TF-material.

2.16 speed milling head made in Taiwan, variable speed milling head and inverter milling head

can be equipped as optional accessories.

3.X/Y/Z-axis screw are made in Taiwan with good smooth and reliable features.

4.Table surface is treated specially to harden HRC45-55.

5.X/Y/Z-axisguide way surface are treated specially to harden HRC45-55.

6.Standard electrical box with domestic brand electronics components, we also can select optional SIEMENS and SCHNEIDER brand.

Model	Unit	X6333	X6333A
Table size	mm	330×1370(13×54") 330×1500(13×58")
T-slot Nu.& size		3 × 16
Table longitudinal travel	mm	820(1000)
Cross travel	mm	380
Knee vertical travel	mm	460
Distance from spindle to table	mm	0-450
Ram travel	mm	500
Spindle taper		ISO40
Quill travel	mm	127
Spindle peed	r/min	50HZ:65-4500 60HZ:80-5440
		(optional variable):60-3600
Quill feed rate	mm/rev	0.04/0.08/0.15
motor power	kw	3.7
Head swivel (Right / Left)	degree	-90/+90
Head swivel (up / down)	degree	-45/+45	(Fixed)
Packing size	mm	1set/pallet 1800×2020×2200
		2set/pallet 1800×2200×2200
G.W.	kg	2200	2250

Standard accessories:

With ISO40 spindle,

5HP step speed milling head,

Lead screw from Taiwan,

milling head from Taiwan,

guide way with Turcite B cover,

spindle bearing with P4 class ,

Vertical lifting motor ,

Cooling system,

Work light,

Tool and tool box

Optional accessories:

SINO DRO 3 axis

Power feed

Variable speed milling head

Air draw bar

Automatic lubrication pump

Milling chuck

Ball screw for X/Y axis

Hanging control panel

Machine vice

Spindle cover
