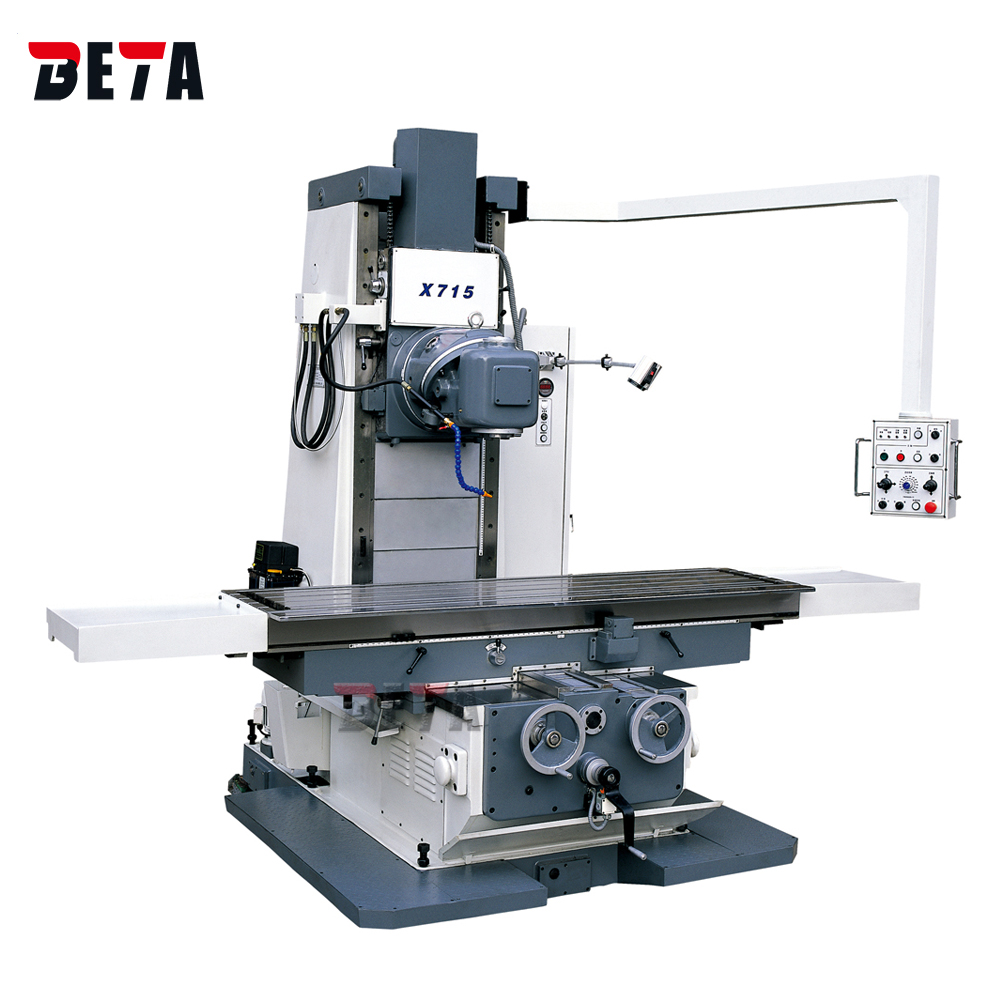

Universal milling machine
X715
Heavy duty milling
Worktable size 2100x500mm
Milling head swivel 360 degree
X/Y/Z axis rapid feeding
  • Features
  • Specification
  • CONFIGURATION

1.Rigid grey cast-iron construction allows heavy work load.

2.Universal milling head system "Huron" can be adjusted to various angles.

3.Solid flat guiding guarantees stability at heavy milling.

4.Complete with swivel arm and clearly arranged control panel.

5.Inductive hardened and polished guidings.

6.Stepless feed adjustments in all axis.

7.Reinforced saddle in robust box construction.

8.Precisely polished table, ideally positioned on wide saddle.

9.Column and stand in solid box construction.

TECHNISCHEX715
Table size2100 x 500 mm
Spindle taperISO 50
Spindle speed(12) 40 - 1600 rpm
Travel longitudinal (x)1500 mm
Trave cross (y)700 mm
Trave vertical (z)700 mm
Distance spindle to column610 mm
Spindle head tilting range360°
Distance spindle to table0 - 700 mm
Feeding speeds /
x-axis (stepless)20 - 1800 mm/min
y-axis (stepless)20 - 1800 mm/min
z-axis (stepless)10 - 900 mm/min
Rapid feed x- and y-axis3500 mm/min
Rapid feed z-axis1750 mm/min
Feeding motor power2.0 kW
Coolant motor power0.5 kW
Main motor power7.5 kW
Machine dimensions (W x D x H)3300 x 2380 x 2750 mm
Weight approx.7300 kg


Standard accessories:

Stepless longitudinal and cross feed

3-axis automatic feeding

Work light

Universal mill head

Horizontal counter bearing

Long milling arbor ISO 50 / 32 mm

Taper shell end mill holder ISO 50 / 40 mm

Telescope cover in z-axis

Universal protective device

Protective cover for horizontal milling

Central lubrication

Tools
