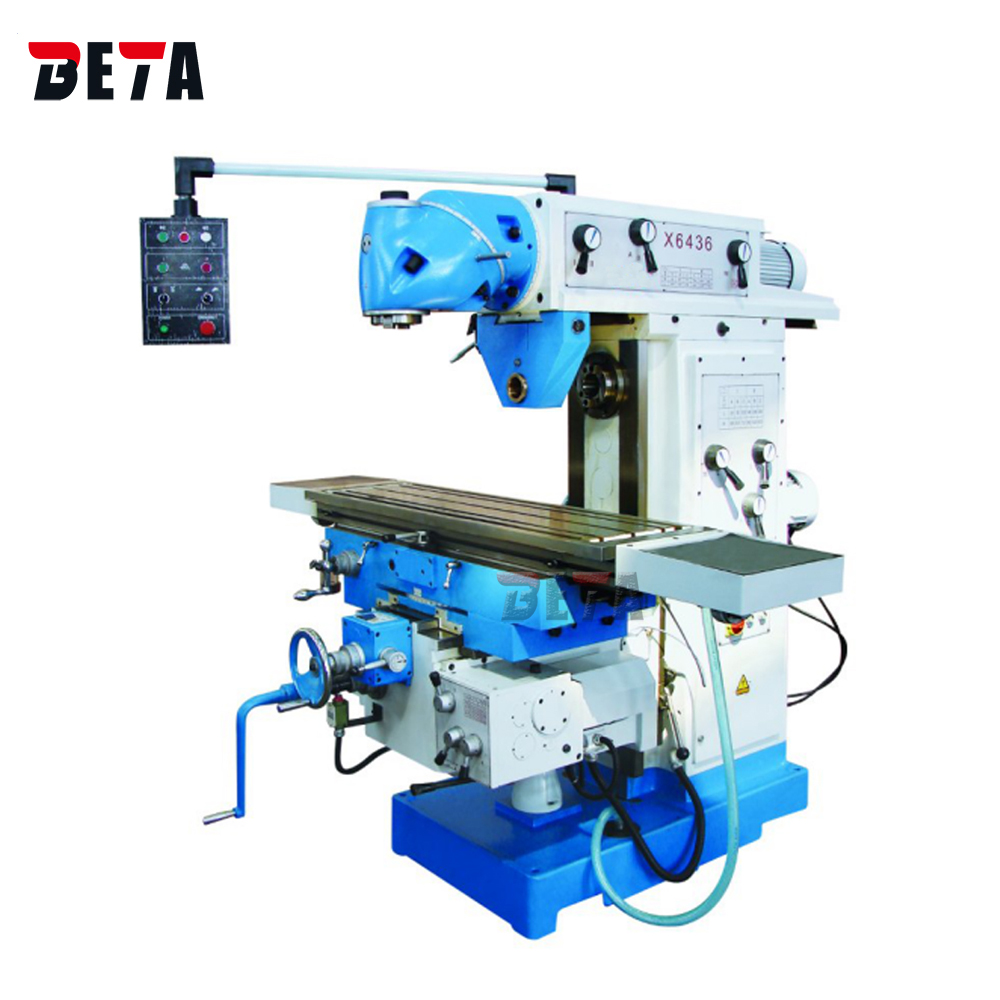

Universal milling machine

X6436

Universal milling head swivel 360 degree
Worktable can swivel ± 35 degree.
Worktable size 1320x360mm
Travel X/Y/Z axis 1000/300/400mm

1.The machine is with universal milling head, it can swivel 360 degrees.

2.The table can swivel left and right side 35°.

3. The machine can automatic feed on three axes controlled through one gear box.

4.The ram is movable forward and backward.

5. The table can be extended to 1600mm, and X travel is increased to 1300mm simultaneously 1600MM，X 1300MM

6. The machine is equipped with operation panel which is convenient for the operator.

Specification	unit	X6436
TABLE :
Table size	mm	1320x360
T slot	no	3
Size ( Width )	mm	14
Centre distance	mm	95
Max. load of Table	kg	500
swivel of table	degree	±35
machining range :
table Longitudinal travel(manual/auto)	mm	1000
table Cross travel (manual/auto)	mm	300
table Vertical travel(manual/auto)	mm	400
MAIN SPINDLE :
Spindle taper		ISO50
spindle speed /step -- Vertical	rpm	58-1800/12steps
--Horizontal	rpm	38-1310/12steps
swivel angle of swivel head	degree	360
horizontal spindle axis to table surface	mm	400
horizontal spindle axis to arm bottom	mm	175
arm travel	mm	500
FEEDS :
Longitudinal/cross feed	mm / min	22-420(X), 22-393(Y)
Vertical/step	mm/min	10-168(Z)
Longitudinal/cross rapid speed	mm / min	1200(X/Y)
Rapid Traverse vertical	mm/min	400(Z)
POWER :-
main motor	kw	4(H/V)
(X/Y/Z) feed motor	kw	1.1
coolant motor	W	90
others
overall dimension	mm	1980x2020x1900
N.W./G.W.	kg	2580/2750

Standard accessories:

Milling chuck

Milling arbor

Draw bar

Cooling system

Work light

Emergency stop switch

CE standard electrical components

Hanging control panel

Swivel worktable

Tools & Tool box

Optional accessories:

SINO DRO 3 axis

Rotary worktable

Dividing head

Machine vice

Spindle cover
