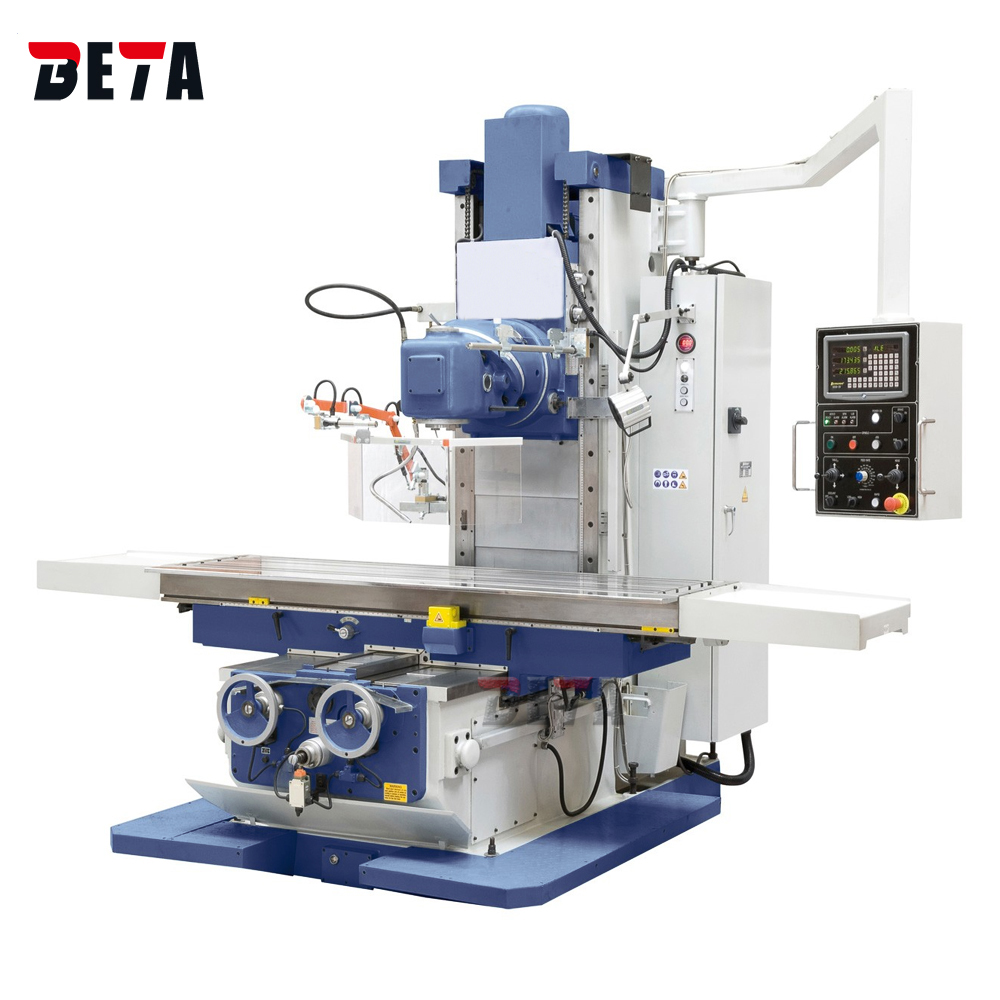

Universal milling machine

XK715

CNC heavy duty bed-type unversal milling machine
Worktable size 2100x500mm
Max. worktable loading capacity 2000 kgs

1.Rigid grey cast-iron construction allows heavy work load.

2.Universal milling head system "Huron" can be adjusted to various angles.

3.Solid flat guiding guarantees stability at heavy milling.

4.Complete with swivel arm and clearly arranged control panel.

5.Inductive hardened and polished guidings.

6.Stepless feed adjustments in all axis.

7.Reinforced saddle in robust box construction.

8.Precisely polished table, ideally positioned on wide saddle.

9.Column and stand in solid box construction.

10.GSK 25i CNC system.SIEMENS 828D or FANUC 0I MATE MD CNC control system for your choice.

MODEL			UNIT		XK715
Table size(L×W)			mm		2100×500
T-slot (WIDTH×NO.)			mm		20×4
Max. travel	Longitudinal		mm		1500
	Cross		mm		600
Feed speed of Longitudinal and cross	Speed range		mm/min		2.5~3000
Rapid feed speed			mm/min		6000
Max load of table			Kg		2000
HEAD
Distance from spindle nose to table surface	Vertical spindle		mm			0~650
Distance from spindle axis to table surface	Horizontal spindle		mm			8~660
Feed speed of Z axis	Speed range		mm/min			2.5~2500
Rapid feed speed of Z			mm/min			3000
SPINDLE
Distance from spindle axis to column guideway			mm			610
Spindle speed	step					12
	Speed range		rpm			35~1345
Spindle taper			ISO50			7:24
MOTOR
Spindle drive motor		kw		7.5
Feed motor		kw (AC)		2.5（Y、Z） 1.4（X）
Coolant pump motor		w		550
Lubricant pump motor		w		120
Overall size		mm		3650×2380×2750
Machine weight		kg		7300

Standard accessories:

ISO50 spindle , table size 2100*500mm,

Max. travel longitudinal 1500mm, cross 600mm ,

Max. load of table 2000 kgs,

X/Y/Z 3-axis hardened guideway covered with Turcite-B

Quartz work lamp, coolant system, electric hand wheel,

Stepless longitudinal and cross feed, Universal mill head,

Horizontal counter bearing, Long milling arbor ISO 50 / 32 mm,

Taper shell end mill holder ISO 50 / 40 mm

Telescope cover in z-axis, Semi-cover universal protective device

Protective cover for horizontal milling,

Automatic central oil lubrication, Tools & Tool box
