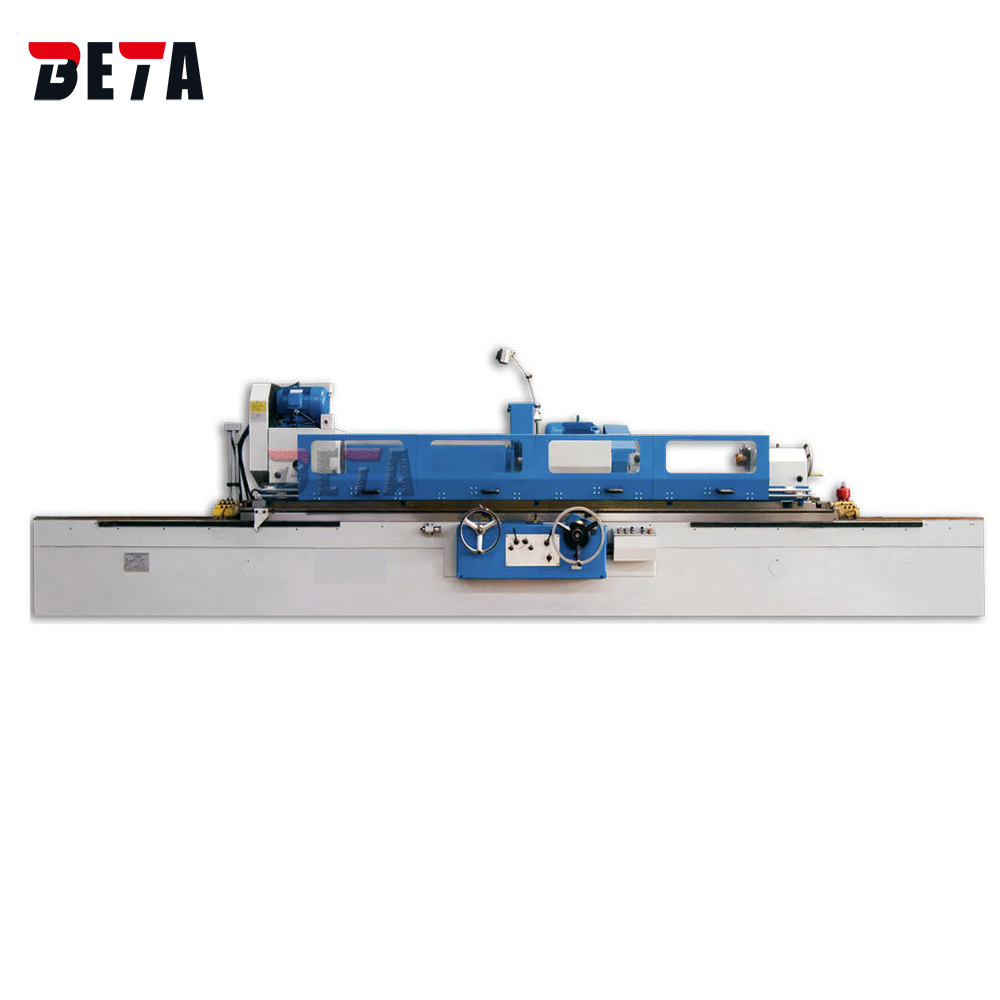

Cylindrical grinding machine

M1350

Heavy duty cylindrical grinding machine
Max. grinding diameter 500mm
Max. grinding length 1500/2000/3000/4000mm

Features
Specification
CONFIGURATION

1. The horizontal feed of the grinding wheel carriage is driven by hydraulic pressure to realize the micro-automatic periodic feed and rapid advance and retreat, and the coarse and fine feed can also be realized by handwheel.

2. The M1350, M1450, M1363 series of worktables and the grinding wheel frame guide rails adopt hydrostatic guide rails, which can move smoothly at low speeds.

3. M1350, M1450, and M1363 series grinding wheel holders adopt high-rigidity dynamic and static pressure spindles, which have high rotation accuracy and good rigidity.

4. The headstock adopts frequency converter to realize stepless speed regulation. The universal headstock can be adjusted at any angle within 90 degrees counterclockwise to suit the chuck for grinding internal and external conical workpieces.

Model	M1350
General capacity
Distance between centers	1500/2000/3000/4000
Center height	270
Dia.Ground(O.D)	25-500
Max.length ground(O.D)	1500/2000/3000/4000
Max.weight of work piece	1000
Workhead
Center taper(MT)	6
Spindle speed	50HZ:18-180 stepless
Wheelhead
Wheel spindle speed	870
Wheelhead rapid travel	100
Max.travel	438
Hand feed per.rev	rough:4 fine:0.5
Hand feed per.gra	rough:0.02 fine:0.0025
Wheel size(ODxWxID)	750x75x305
Peripheral velocity	35
Table
Hand feed per.rev	5
Max.swiveling angle of table Clockwise	3°（1500），2°（2000，3000），1°（4000）
Max.swiveling angle of table Anticlockwise	6°（1500），5°（2000），3°（3000），2°（4000）
Longitudinal speed range of table	0.1-3
Tailstock
Center tape(MT)	6
Quill travel	70
Motor
Wheelhead motor power	15
Workhead motor power	4
Gross weight	10（1500），11（2000），13（3000），17（4000）
Packing dimension	510x228x210(1500), 585x228x210(2000), 785x228x210(3000), 1000x228x210(4000)

Standard accessories:

Grinding wheel, wheel balancing arbor,

wheel extractor, open type steady rest,

wheel flange, work lamp, coolant tank, center points,

internal grinding attachment (for M14 series)

Optional accessories:

Wheel balancing stand

Coolant tank with magnetic separator

Coolant tank with magnetic separator and paper

End face wheel dresser

Radius wheel dresser

Close type steady rest

DRO
