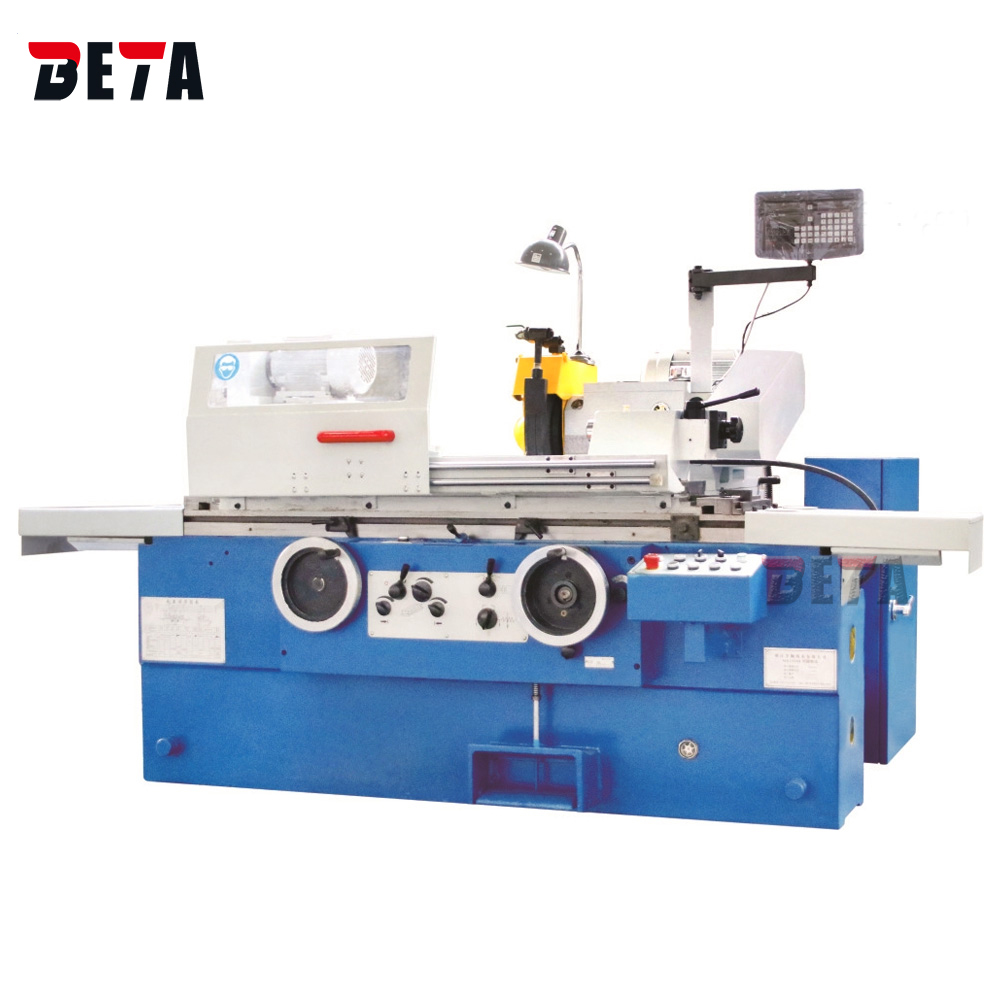

1.This universal cylindrical grinding machine is a mojor grinding machine professional advantages of manufacturing units in the M1320, M1420 type on the basis of draw to impove heavy duty grinding machine, with high cutting precision, high rigidity and high efficiency. Suitable for grinding cylindrical and conical workpiece.
2.The workpiece, cylindrical grinding wheel, inner circle grinding wheel, oil pump and cooling pump are driven by independent motor.
3. Worktable longitudinal movement by hydraulic continuously variable transmission can also be handwheel drive.
4.Grinding wheel frame transverse feeding fine turning can be made by the hydraulic feed and fast automatic cycle.
5. Grinding wheel rack main shaft diameters, motor power increase, grinding wheel rack oil pool temperature rise is small, high grinding rate.
| Model | unit | MA1320x500/750 | MA1420x500/750 |
| External grinding diameters | mm | φ8～200 | φ8～200 |
| Internal grinding diameters | mm | φ35～100 | |
| Center height | mm | 135 | 135 |
| Headstock spindle rotation speed | r/min | 50HZ:25～380stepless | |
| Max. worktable traverse | mm | 650 | 950 |
| Hydraulic travel speed | m/min | 0.1～4 | 0.1～4 |
| Max.workpiece weight | kg | 80 | 80 |
| Grinding length External/Internal | mm | 500/750 | 500/750, 125 |
| Swivel range of worktable | ° | -5～+9° | -3～+7° |
| Max.wheel peripheral speed | m/s | 35 | 35 |
| External wheel size | mm | Max.φ400x50xφ203 Minφ280x50xφ203 | |
| Internal wheel spindle rotating-speed | r/min | 10000 | 10000 |
| Headstock and tailstock center | morse | NO.4 | NO.4 |
| Total motor power | kw | 5.43 | 6.52 |
| Machine overall dimension（LxWxH） | mm | 2500x1800x1650 | 3000x1800x1650 |
| Machine weight | kg | 3040 | 3540 |
| Working Accuracy | |||
| Roundness（O.D/I.D） | 1.5/2.5μm（O.D/I.D） | ||
| Uniformity of dia.in longitudinal section（O.D/I.D） | 5/8μm（O.D/I.D） | ||
| Surface roughness(O.D/I.D) | Ra0.32/0.63μm（O.D/I.D） | ||
Standard configuration：
Delixi electrical parts, main motor,
headstock motor made in China,
X axis screw made in Taiwan，
Z axis screw made in China mainland ,
coolant tank ， wheel periphery dresser ，
balancing arbor ， dog plate，
center point ，leveling wedge ，
wheel flange ，internal grinding rod ,
internal grinding attachment , 3- jaw chuck
