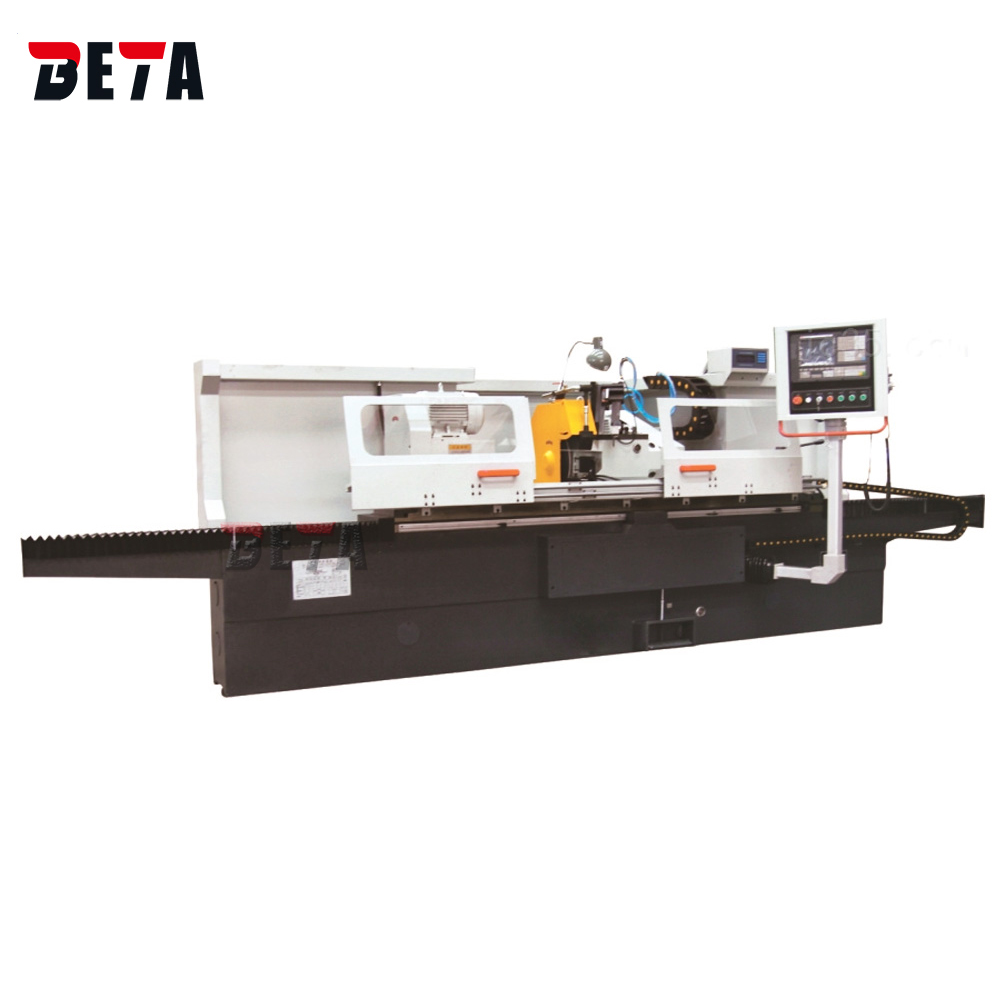

Cylindrical grinding machine

MK1332B

Siemens CNC controller
Fully automatic cylindrical grinding
Max. grinding diameter 320mm
Max. grinding length 1000/1500/2000/3000mm

INQUIRY

Features
Specification
CONFIGURATION

1.The CNC cylindrical grinding machine is suitable for batch production of cylindrical parts grinding with high performance to price ratio.

2.The machine is controlled by Siemens 808D CNC controller, and executive system is driven by the CNC servo driver and servo motor.

3. Worktable longitudinal travel and wheelhead cross traverse which with the high infeed accuracy are realized by the servo motors via the ball screw transmission.

4.With the touch screen and human-machine interface.

5.By setting the parameter of longitudinal grinding or plunge grinding via the touch screen, an auto-grinding for the different workpiece is realized.

6.With the function of wheel dressing and compensation automatically.

7.Workpiece, oil pump, coolant pump is driven by separate motor.

Model	Unit	MK1332Bx1000/1500/2000/3000
Max.grinding length	mm	1000/1500/2000/3000
Grinding diameter	mm	8~320
Center height	mm	180
Max. workpiece weight	kg	150
Worktable speed	m/min	0.1~4
Wheel peripheral velocity	m/s	38
Max. travel of worktable	mm	1100/1600/2100/3100
Swivel range of worktable	°	-3~+7, -3~+6, -2~+5, -2~+3
External wheel size	mm	60075305
Spindle speed of workhead	r/min	26/52/90/130/180/260
Grinding spindle speed	r/min	1100
Headstock taper	morse	NO.5
Tailstock taper	morse	NO.4/NO.4/NO.5/NO.5
Rapid advance and withdrawal amount	mm	50
Wheelhead displacement per rev of handwheel	mm	2/0.5
Wheelhead displacement per div of handwheel	mm	0.01/0.0025
Total motor power	kw	14.27
Overall dimensions	mm	3605/4605/5605/760518101515
Machine weight	kg	4000/4600/6600/8600

Standard configuration：

Siemens 808D CNC control system,

Siemens servo motor and drives,

Cylindrical measuring instrument (ACCRETECH, Japanese brand) ,

Delixi electrical parts, main motor,

headstock motor made in China,

X axis screw made in Taiwan，

Z axis screw made in China mainland ,

coolant tank ， wheel periphery dresser ，

balancing arbor ， dog plate，

center point ，leveling wedge ，

wheel flange ，internal grinding rod ,

internal grinding attachment , 3- jaw chuck
