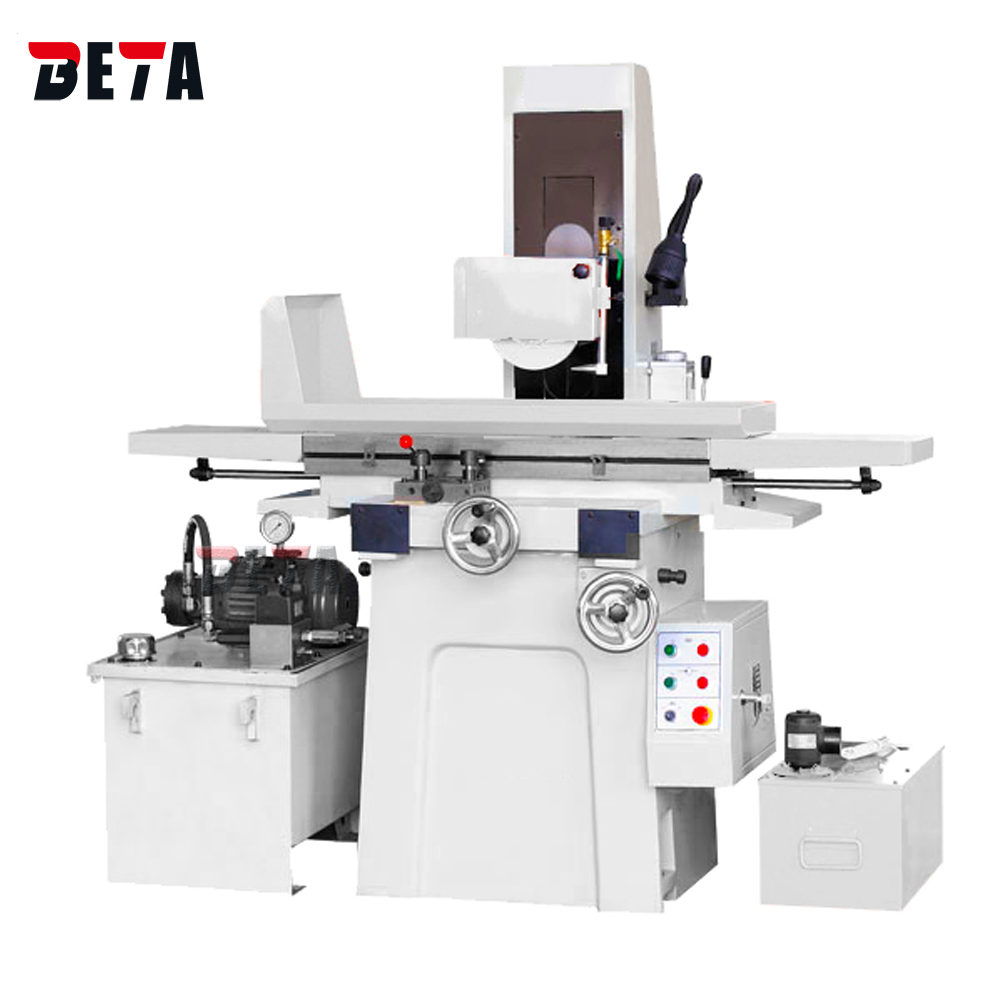

Surface grinding machine

M1022

manual feeding control
worktable size 540x250mm
electronic-magnetic chuck

INQUIRY

Features
Specification
CONFIGURATION

1.Quality castings and precision ball bearing supporting the spindle.

2.Coolant system with nozzle and flow control valve.

3.Cast iron machine body and stand for maximum rigidity and smooth operation.

4.The machine can grind all kinds of surfaces or grind complex surfaces by dressing of grinding wheel.

The machine is suitable for grinding without auto feed and is installed with permanent magnetic chuck or electromagnetic chuck according to customer’s requirement.

Model			Unit	M1022
Working table	Table Size (L * W)		mm	540*250
	Max movement of working table(L * W)		mm	560*260
	T -Slot number * width		mm	1*14
Grinding head	Max distance from spindle center to table surface		mm	420
	Wheel Size (Outer diameter * width * Inner diameter)		mm	Φ20020Φ31.75
	Wheel speed	50HZ	r/min	2850
		60HZ		3360
Feed amount	Vertical feed on handwheel	Per revolution	mm	4
		Per graduation	mm	0.02
	Cross feed on handwheel	Per revolution	mm	1.25
		Per graduation	mm	0.01
Motor power	Spindle motor		kw	1.5
	Coolant pump motor		w	40
Working precision	The parallelism of working surface to base level		mm	300:0.005
	Surface roughness		μm	Ra0.32
Weight	Net		kg	850
	Gross		kg	950
Overall dimension(LWH)			mm	1680x1220x1720
Package dimension(LWH)			mm	1200x1400x1940

Standard accessories:

Tool box

Balancing stand

Balancing bar

Screwdriver

Balancing screw

Open end wrench

Inner hexagon spanner

Wheel dresser holder

Diamond pen

Grinding wheel

Wheel flange

Magnetic chuck
