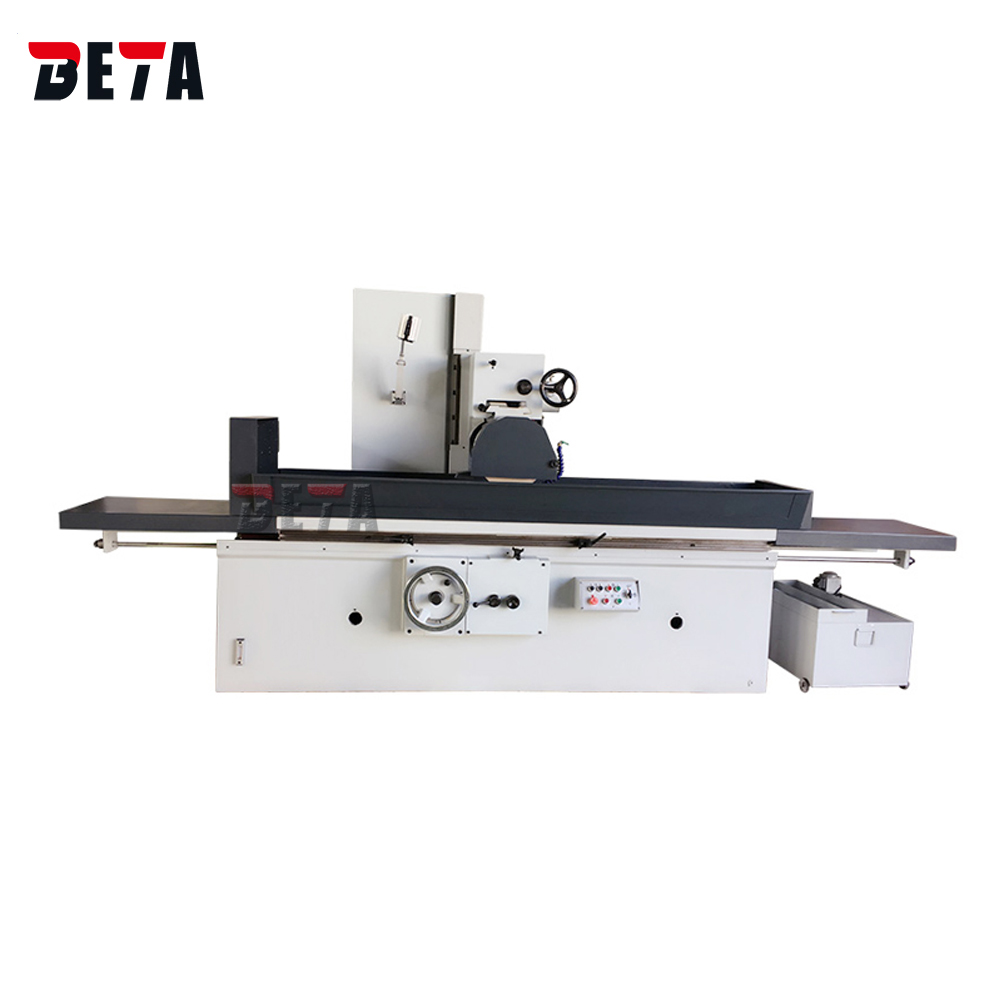

Surface grinding machine

M7140

worktable size 400x1000mm, 400x1600mm, 400x2000mm
automatic grinding
electromagnetic chuck
with digital readout

Features
Specification
CONFIGURATION

1. The longitudinal movement of the table driven by the blade pump, smooth operation, low noise, low temperature of the oil pool, the accuracy of the horizontal axis of the surface grinding machine grinding country standard (GB / T4022-1983).

2. Can be groove and flange side of the grinding.

3. Improved grinding head horizontal feed mechanism, both hydraulic automatic feed and manual feed, easy to operate.

4. Grinding head vertical movement has a fast lifting motor feed , but also with manual feed.

5. Grinding head motor and pump motors are used high-grade motor, electrical implementation of national safety standards.

6. The machine has the location where the digital display is installed.

Model					M7140*1000	M7140*1600	M7140*2000
Working table	Table size(L * W)			mm	1000×400	1600×400	2000×400
	Max movement of working table(L * W)			mm	1100	1700	2100
	T-Slot(number * width)				3×18	3×18	3×18
	Speed of working table			m/min	3--25	3--25	3--25
Grinding head	Max distance from spindle center to table surface			mm	575	575	575
	Max travel of grinding head		Cross (Manual and hydraulic)	mm	440	440	440
	Max travel of grinding head		Vertical (Manual)	mm	400	400	400
	Spindle speed			rpm	1440	1440	1440
	Wheel Size (Outer diameter * width * Inner diameter)			mm	φ350×40×φ127	φ350×40×φ127	φ350×40×φ127
	Scale on the vertical handwheel			mm	0.01	0.01	0.01
	Grinding head feed per revolution of handwheel			mm	1	1	1
Total power				kw	11	12	12
Spindle motor		Power		kw	7.5	7.5	7.5
Spindle motor		Speed		r/min	1440	1440	1440
Rapid up and down motor		Power		kw	0.37	0.37	0.55
Rapid up and down motor		Speed		r/min	1440	1440	1440
Oil pump motor		Power		kw	3	4	4
Oil pump motor		Speed		r/min	960	960	960
Coolant pump motor		Power		kw	0.125	0.125	0.125
Coolant pump motor		Speed		r/min	2800	2800	2800
Oil pump		Flow		L/min	100	100	125/50
Oil pump		Working pressure		MPa	1.5	1.5	1.5
Working precision		The parallelism of working surface to base level		mm	1000:0.015	1000:0.015	1000:0.015
Working precision		Surface roughness		µm	Ra0.63	Ra0.63	Ra0.63
Weight		N.W./G.W.		kg	3800/4200	5300/6000	6300/7000
Overall dimension (LWH)				mm	2700×1750×2100	4400×1750×2100	5400×1750×2100

Standard Accessories:

Digital readout system

wheel flange

standard grinding wheel

balancing arbor

balancing stand

balance plate and screw

coolant tank & water pipe

Leveling wedge and bolt,

wheel dresser stand with diamond pen,

electromagnetic chuck

open-end wrench,

screwdriver, inner hexagon spanner, tool box
