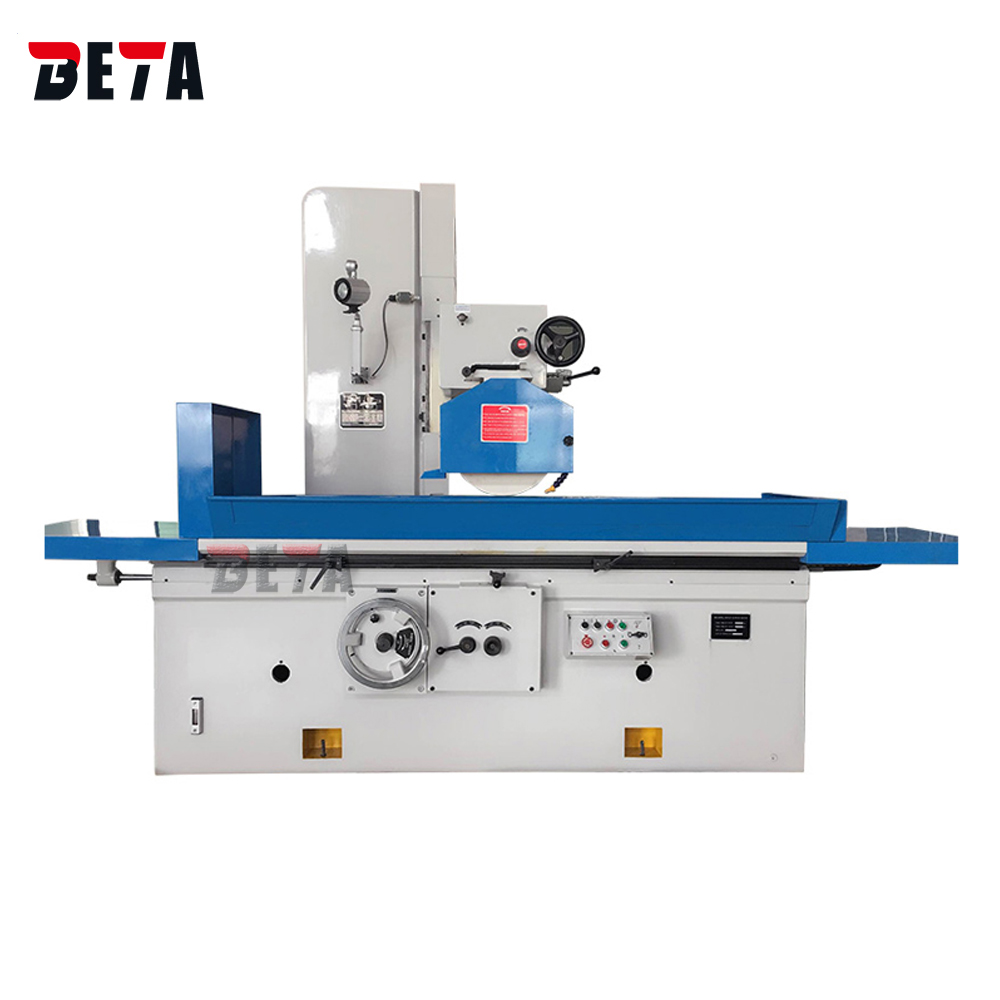

Surface grinding machine

M7150

Big worktable size 500x1250mm
automatic grinding
electromagnetic chuck
with digital readout

Features
Specification
CONFIGURATION

1. The longitudinal movement of the table driven by the blade pump, smooth operation, low noise, low temperature of the oil pool, the accuracy of the horizontal axis of the surface grinding machine grinding country standard (GB / T4022-1983).

2. Can be groove and flange side of the grinding.

3. Improved grinding head horizontal feed mechanism, both hydraulic automatic feed and manual feed, easy to operate.

4. Grinding head vertical movement has a fast lifting motor feed , but also with manual feed.

5. Grinding head motor and pump motors are used high-grade motor, electrical implementation of national safety standards.

6. The machine has the location where the digital display is installed.

Model					M7150*1250
Working table	Table size(L * W)			mm	1250*500
	Max movement of working table(L * W)			mm	1350
	T-Slot(number * width)				5×18
	Speed of working table			m/min	3--25
Grinding head	Max distance from spindle center to table surface			mm	800
	Max travel of grinding head		Cross (Manual and hydraulic)	mm	580
			Vertical (Manual)	mm	600
	Spindle speed			rpm	1440
	Wheel Size (Outer diameter * width * Inner diameter)			mm	Φ400×40×φ127
	Scale on the vertical handwheel			mm	0.01
	Grinding head feed per revolution of handwheel			mm	1
Total power				kw	12
Spindle motor		Power		kw	7.5
		Speed		r/min	1440
Rapid up and down motor		Power		kw	0.37
		Speed		r/min	1440
Oil pump motor		Power		kw	4
		Speed		r/min	960
Coolant pump motor		Power		kw	0.125
		Speed		r/min	2800
Oil pump		Flow		L/min	125
		Working pressure		MPa	1.5
Working precision		The parallelism of working surface to base level		mm	1000:0.015
		Surface roughness		µm	Ra0.63
Weight		N.W./G.W.		kg	5300/6000
Overall dimension (LWH)				mm	3210x1750x2250

Standard Accessories:

Digital readout system

wheel flange

standard grinding wheel

balancing arbor

balancing stand

balance plate and screw

coolant tank & water pipe

Leveling wedge and bolt,

wheel dresser stand with diamond pen,

electromagnetic chuck

open-end wrench,

screwdriver, inner hexagon spanner, tool box
