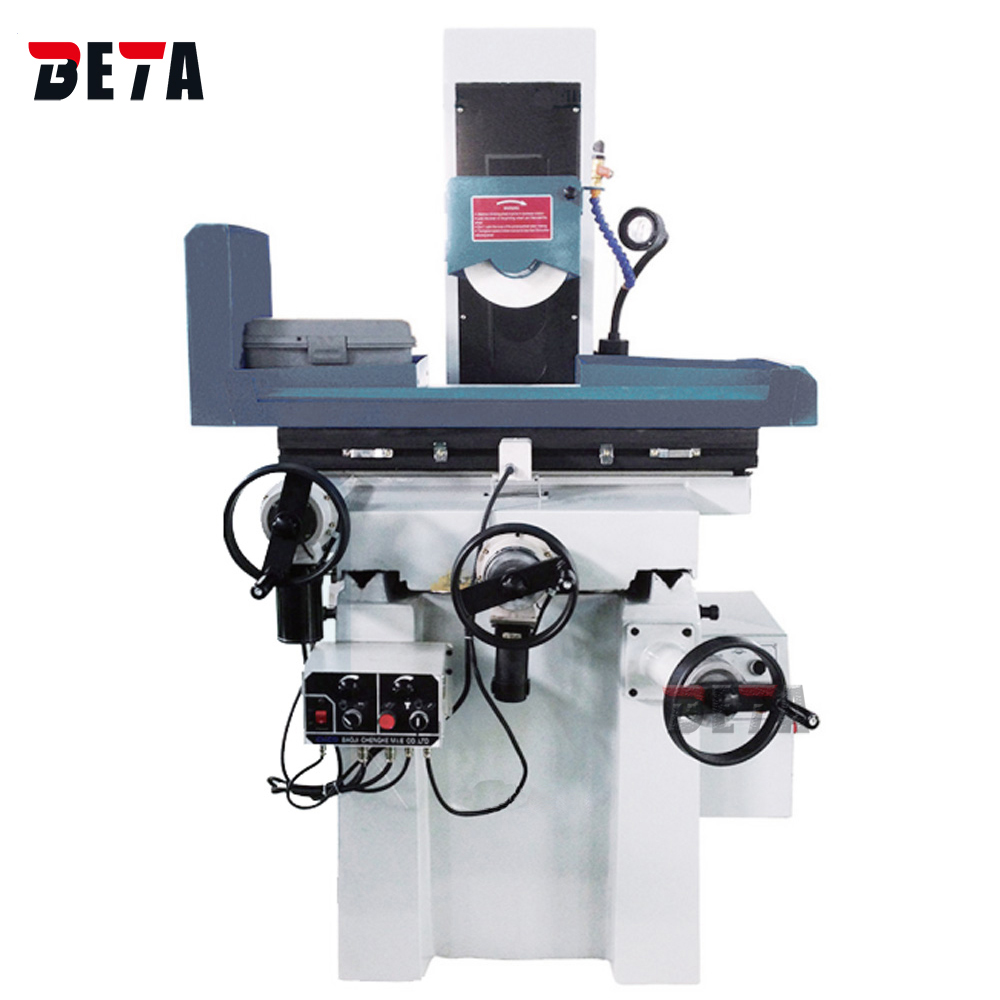

WhatsApp: +8618266249928WhatsApp: +86182662499281. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. The transverse motion of the working table can be used to realize the mechanical transmission and the manual transmission.
3. The longitudinal movement of the working table can achieve mechanical drive and manual drive.
4. Can grinding a variety of flat and complex shape, suitable for grinding without motorized feed, according to the user needs to be equipped with permanent magnetic sucker or electromagnetic sucker.
Application：
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
This surface grinding machine can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Model | MD1022 | |||
Working table | Table Size (L * W) | mm | 540*250 | |
Max movement of working table(L * W) | mm | 560*260 | ||
T -Slot number * width | mm | 1*14 | ||
Grinding head | Max distance from spindle center to table surface | mm | 420 | |
Wheel Size(Outer diameter*width*Inner diameter) | mm | Φ200*20*Φ31.75 | ||
Wheel speed | 50HZ | r/min | 2850 | |
60HZ | 3360 | |||
Feed amount | Longitudinal speed of working table | m/min | 3-20 | |
Cross feed of working table | Continuously(Variable Transmission) | mm/min | 400 | |
Intermittently(Variable Transmission) | mm/times | 0-5 | ||
Per revolution on handwheel | mm | 4 | ||
Per graduation on handwheel | mm | 0.02 | ||
Vertical feed on handwheel | Per revolution | mm | 1.25 | |
Per graduation | mm | 0.01 | ||
Commutation feeder | Total input power | w | 150 | |
X- feeder output speed | R/min | 0-225 | ||
X- feeder size | mm | 280×130×120 | ||
Y- feeder output speed | R/min | 0-120 | ||
Y- feeder size | mm | 280×130×120 | ||
Motor power | Spindle motor | kw | 1.5 | |
Coolant pump motor | w | 40 | ||
Working precision | The parallelism of working surface to base level | mm | 300:0.005 | |
Surface roughness | μm | Ra0.32 | ||
Weight | Net | kg | 880 | |
Gross | kg | 980 | ||
Overall dimension（L*W*H） | mm | 1680x1140x1760 | ||
Package dimension（L*W*H) | mm | 1200x1400x1940 | ||
Standard accessories:
Tool box
Balancing stand
Balancing bar
Screwdriver
Balancing screw
Open end wrench
Inner hexagon spanner
Wheel dresser holder
Diamond pen
Grinding wheel
Wheel flange
Magnetic chuck
