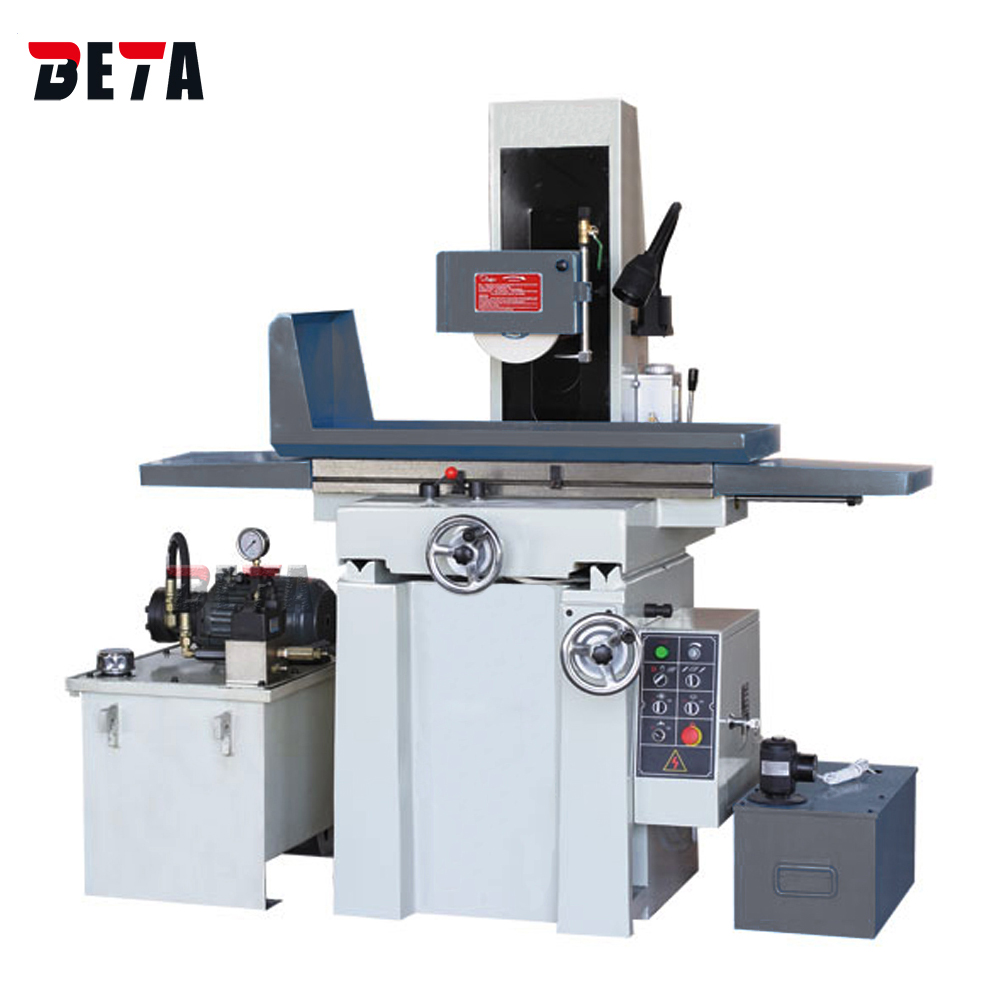

Surface grinding machine

MY1022

Longitudinal feeding - hydraulic
Cross feeding - motor electric
Vertical feeding - manual

1.Hydraulic longitudinal table feeding, electric cross feeding, manual vertical feeding

2.Quality castings and Precision ball bearing supporting the spindle

3.Coolant system with nozzle and flow control valve

4.Cast iron machine body and stand for maximum rigidity and smooth operation

5.Vertical dial graduations 0.01mm

6.Cross travel graduations 0.02mm

7.Manual one shot lubrication pump

8.Wheel balancing stand and arbor

9.Halogen work light

Model					MY1022
Working table	Table Size (L* W)			mm	540*250
	Max movement of working table(L* W)			mm	560*260
	T-Slot (number*width)			mm	1*14
Grinding wheel	Max distance from spindle center to table surface			mm	450
	Wheel Size(Outer diameterwidthInner diameter)			mm	φ20020Φ31.75
	Wheel speed	50HZ		r/min	2850
		60HZ			3360
Feed amount	Longitudinal speed of working table			m/min	3-20
	Cross feed(front and rear) on handwheel		Continuously (Variable Transmission)	mm/min	600
			Intermittently(Variable Transmission)	mm/times	0-5
			Per revolution	mm	4
			Per graduation	mm	0.02
	Vertical(up and down) feed on handwheel		Per revolution	mm	1.25
			Per graduation	mm	0.01
Motor power	Spindle motor			kw	1.5
	Coolant pump motor			W	40
Hydraulic system	Hydraulic motor			kw	1.5
	Working pressure			Mpa	3
	Oil tank capacity			L	80
	Max flow			L/min	18
Working precision	The parallelism of working surface to base level			mm	300:0.005
	Surface roughness			μm	Ra0.32
Weight	Net			kg	950
	Gross			kg	1050
Overall dimension (LWH)				mm	168012201720

Standard accessories:

Tool box

Balancing stand

Balancing arbor

Grinding wheel

Wheel flange

Screw driver

Magnetic chuck

Wrench
