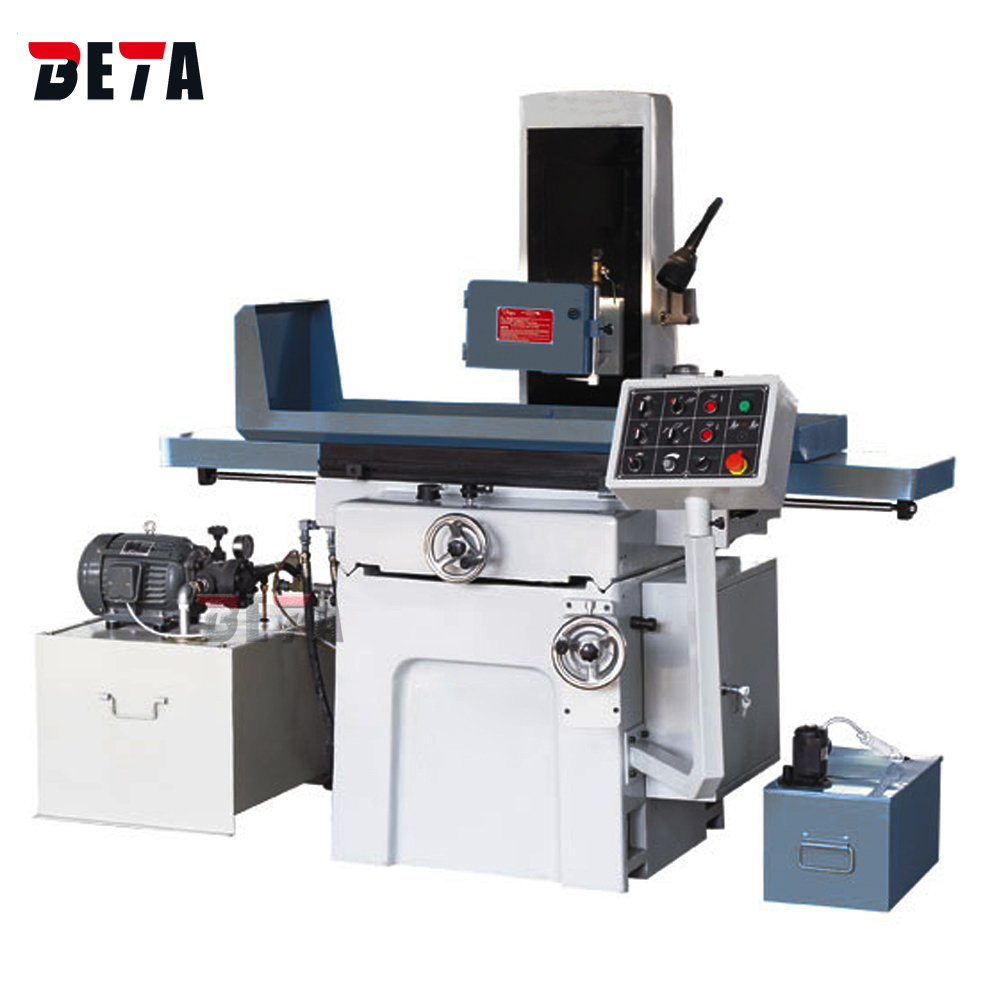

Surface grinding machine

MY1224

Longitudinal feeding - hydraulic
Cross feeding - motor electric
Vertical feeding - motor rapid

1.Hydraulic longitudinal table feeding, electric cross feeding, rapid vertical feeding

2.Quality castings and Precision ball bearing supporting the spindle

3.Coolant system with nozzle and flow control valve

4.Cast iron machine body and stand for maximum rigidity and smooth operation

5.Vertical dial graduations 0.01mm

6.Cross travel graduations 0.02mm

7.Manual one shot lubrication pump

8.Wheel balancing stand and arbor

9.Halogen work light

Model					MY1224
Working table	Table Size (L* W)			mm	600*300
	Max movement of working table(L* W)			mm	630*320
	T-Slot (number*width)			mm	1*14
Grinding wheel	Max distance from spindle center to table surface			mm	520
	Wheel Size(Outer diameterwidthInner diameter)			mm	Φ30030Φ76.2
	Wheel speed	50HZ		r/min	1450
		60HZ			1680
Feed amount	Longitudinal speed of working table			m/min	3-20
	Cross feed(front and rear) on handwheel		Continuously (Variable Transmission)	mm/min	600
			Intermittently(Variable Transmission)	mm/times	0-6
			Per revolution	mm	4
			Per graduation	mm	0.02
	Vertical(up and down) feed on handwheel		Per revolution	mm	2
			Per graduation	mm	0.01
	Speed of vertical feed			mm/min	360
Motor power	Spindle motor			kw	2.2
	Coolant pump motor			W	40
	Lifting motor			W	120
Hydraulic system	Hydraulic motor			kw	2.2
	Working pressure			Mpa	4
	Oil tank capacity			L	100
	Max flow			L/min	20
Working precision	The parallelism of working surface to base level			mm	300:0.005
	Surface roughness			μm	Ra0.32
Weight	Net			kg	1400
	Gross			kg	1530
Overall dimension (LWH)				mm	196014801850
Package dimension(LWH)				mm	200016402020

Standard accessories:

Tool box

Balancing stand

Balancing arbor

Grinding wheel

Wheel flange

Screw driver

Magnetic chuck

Wrench
