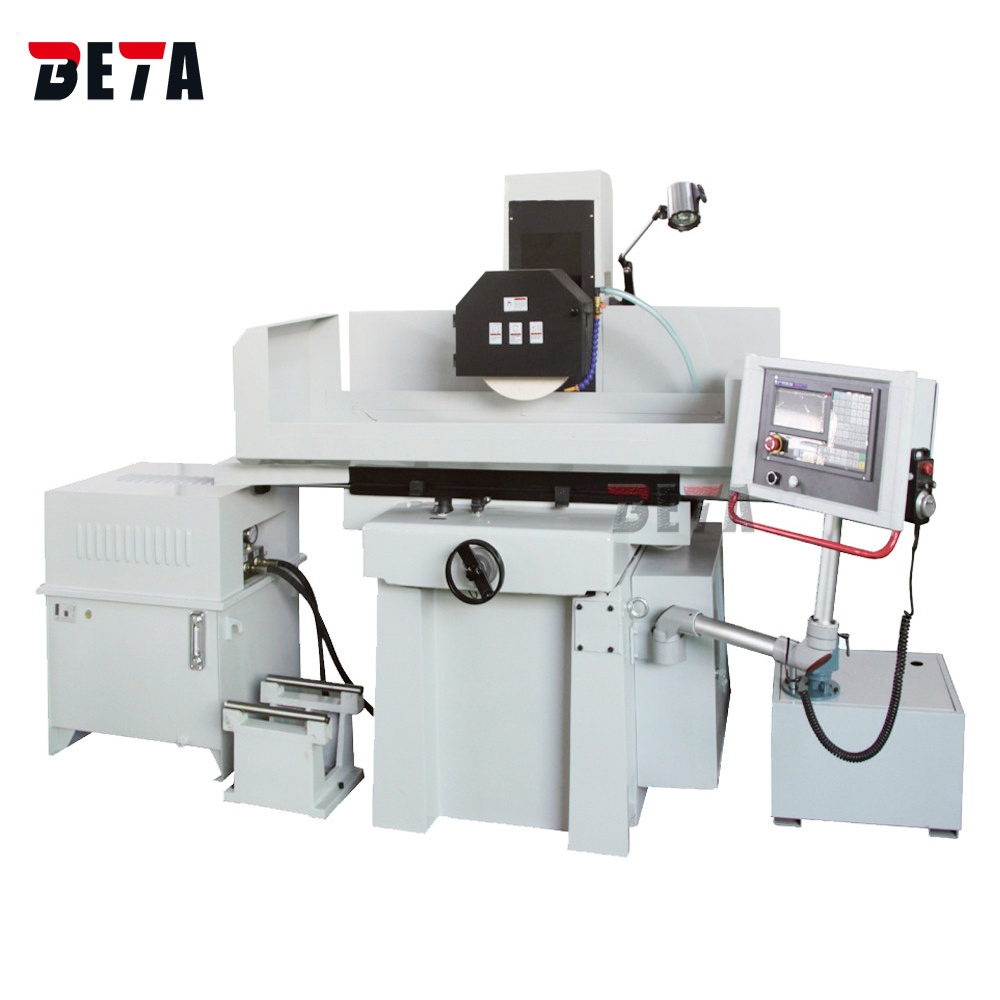

Surface grinding machine

MYK1224 MYK1022 MYK820

CNC controller
Automatic surface grinding
Different worktable size for choice
Magnetic chuck is standard

Features
Specification
CONFIGURATION

1.Having reasonable structure, high rigidity, good looking and operating easily.

2.Transverse movement (front and rear) of work table is driven by motor and transmitted by Precision ball screw which can ensure precision, accurate positioning, automatic feed and fast forward and rewind functions.
3. Longitudinal movement (left and right) adopts a flat -type rail guide, hydraulic transmission which can achieve stable running.
4.Vertical movement is transmitted by precision shaped ball screw and driven by servo motor which can ensure precision, accurate positioning, automatic feed and rapid up and down function.

5.SIEMENS CNC controller

2-Axis CNC			MYK1224	MYK1022	MYK820
Working table	Table Size (L × W)	mm	600×300	540x250	480x200
	Max movement of worktable (L × W)	mm	650×320	560x260	530x220
	T-Slot (Number×Width)	mm	1×14	1×14	1×14
Grinding head	Distance from table surface to spindle center	mm	520	450	450
	Wheel size (Outer diameter×width×Inner diameter)	mm	Φ300×30×Φ76.2	Φ200×20×Φ31.75	Φ200×20×Φ31.75
	Wheel speed	r/min	1450	2850	2850
Feed amount	Longitudinal speed (left and right) of working table	m/min	3-25	3-25	3-25
	Cross speed (front and rear) of working table	m/min	0.5-15	0.5-15	0.5-15
	Vertical automatic feed amount of grinding head	mm	0.005—0.05	0.005—0.05	0.005—0.05
	Rapid up and down speed of grinding head	m/min	0-6	0-6	0-6
Motor power	Spindle motor	kw	3	1.5	1.5
	Coolant pump motor	W	90	40	40
	Up and down servo motor	kw	1	1	0.75
	Cross servo motor	kw	1	1	0.75
Hydraulic system	Hydraulic motor	KW	2.2	1.5	1.5
	Working pressure	MPa	4	3	3
	Oil bank capacity	L	100	80	80
	Max flow	L/min	20	18	18
Working precision	The parallelism of working surface to base level	mm	300: 0.005	300: 0.005	300: 0.005
Working precision	Surface roughness	μm	Ra0.32	Ra0.32	Ra0.32
Weight	Net	kg	1530	1000	900
Weight	Gross	kg	1650	1150	1000
Chuck size		mm	300×600	500x250	400x200
Overall dimension（L×W×H)		mm	2800x1600x1800	1680x1220x1720	1680x1140x1760
Package dimension（L×W×H)		mm	2900x1700x2000	1630x1290x1940	1630x1170x1940

Standard accessories:

Toolbox, Balancing stand balancing bar,

Flange wrench, Screwdriver, Balancing screw

Open-end wrench, Inner hexagon spanner ,

Wheel dresser holder, Wheel dresser,

Machine flange, Wheel flange, Chuck
