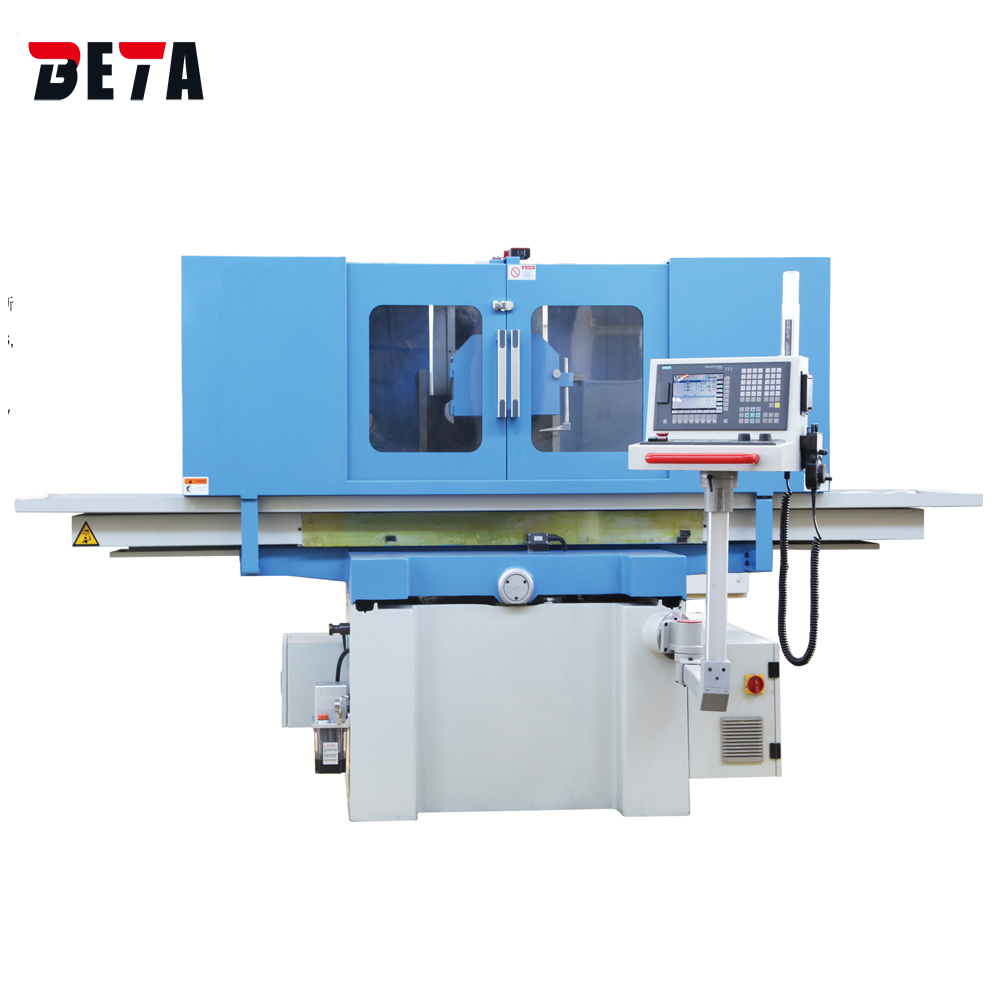

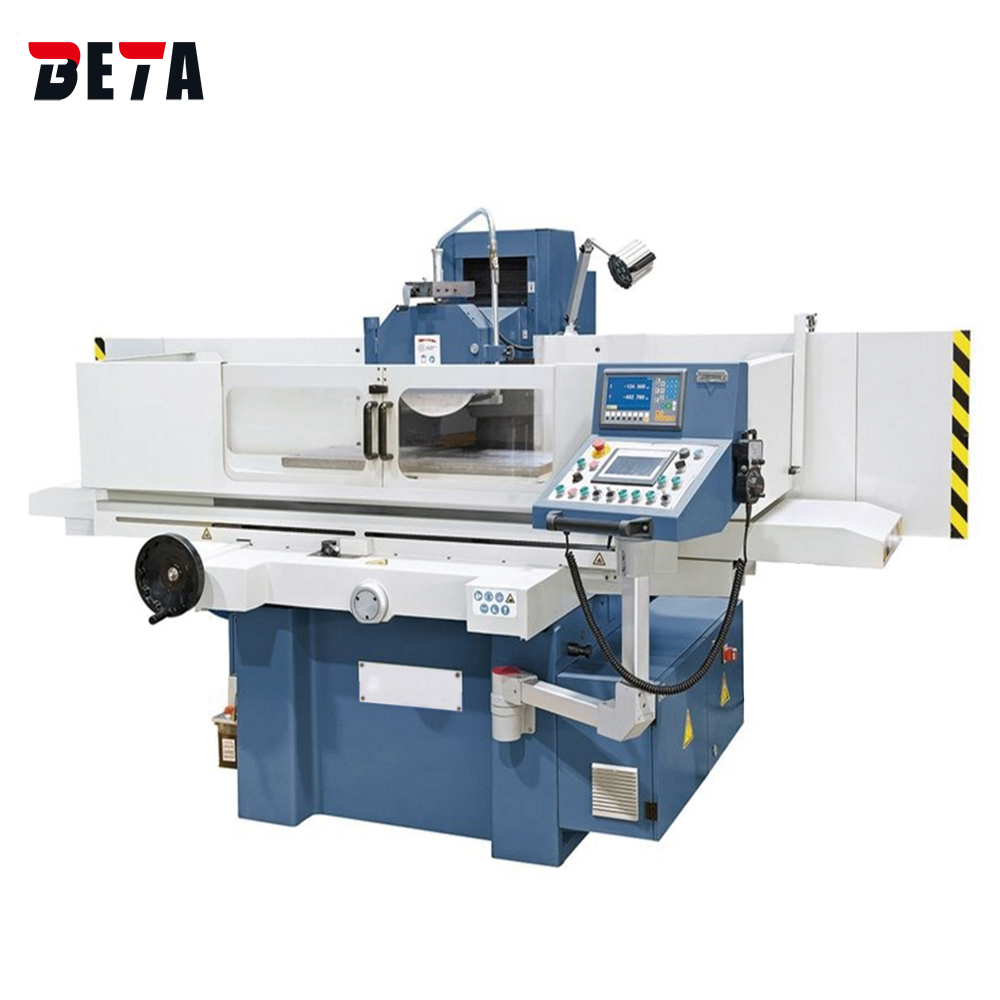

1.2 axis or 3 axis CNC control can be choosed for saddle moving surface grinding machine.
2.Siemens, FANUC CNC controller are recommended.
3.Elaborately designed closed safe guard with safety switch, have good apperance and safety operation field.
4.Precision grinding spindle and preload high precision angular ball bearing and driven by V3 motor, runs in maintenane-free, low vibration, and no noise.
5.CNC-2 model: Y/Z axis numerical control and linkaged, driven by AC servo motor and ball screw, X axis driven by hydraulic.
CNC-3 model: X/Y/Z axis numerical control and linkaged, driven by AC servo motor and ball screw.

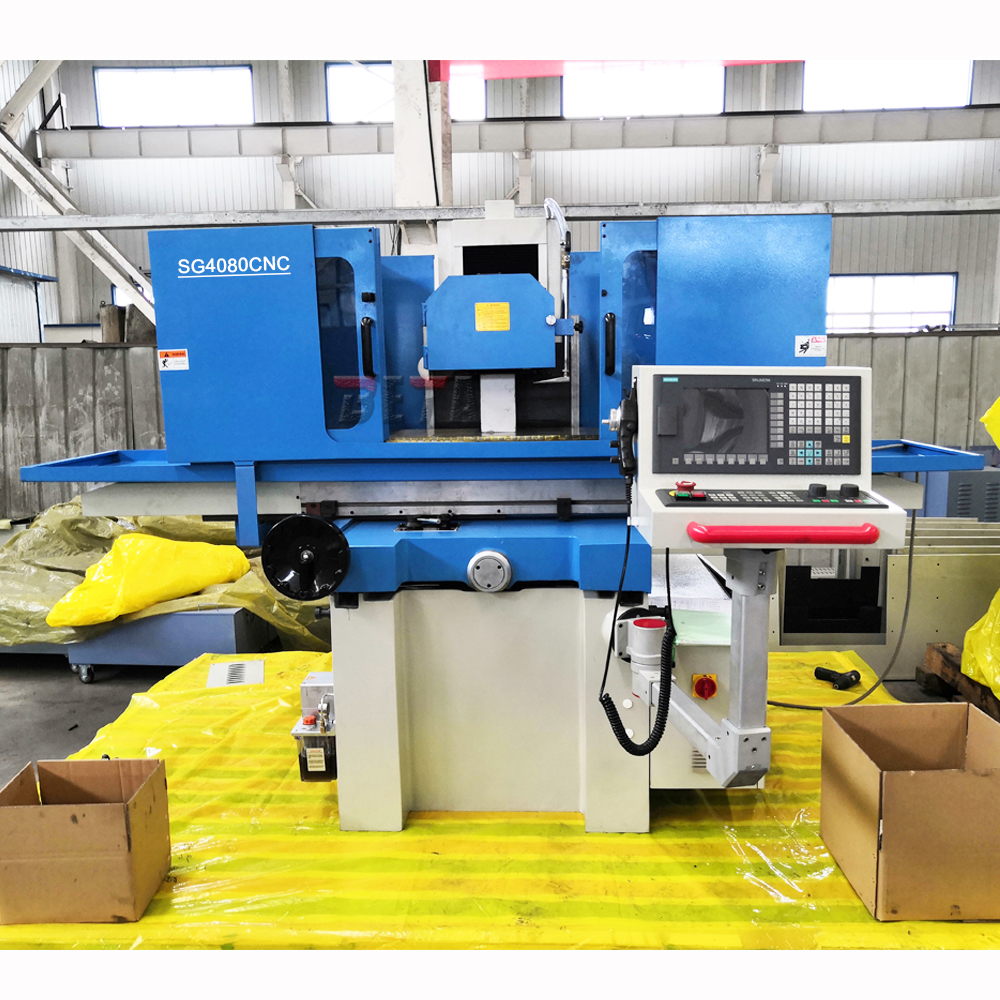

Model | Unit | SG4080CNC |
| Table size | mm | 406*813 |
| Magnetic chuck size | mm | 400*800 |
| Max.distance from spindle center to table | mm | 580 |
| Max.loading capacity (include chuck) | kg | 600 |
X-axis feed speed X-axis micro feed rate | mm/min mm | 0.02-18/CNC-3 (5-25/CNC-2) 0.005/CNC-3 (--/CNC-2) |
Y-axis feed speed
Y-axis micro feed rate | mm/min mm | 0.1-1000/CNC-3 0.005/CNC-3 |
Z-axis feed speed Z-axis micro feed rate | mm/min
mm | 0.1-1000 0.005 |
| Spindle rotating speed | r/min | 1450 (50HZ) / 1750 (60HZ) |
| Grind wheel size | mm | 350*40*127 |
| Spindle motor power | kw | 4 |
| Floor space (L*W) | mm | 5000*2400 |
| Gross weight | kg | 4400 |
| Packing size (L*W*H) | mm | 3750*2250*2250 |
Standard accessories:
Work light
Balancing arbor
Splashing guard
Coolant tank
Wheel flange
Grinding wheel
Wheel dresser stand
Y/Z axis MPG
Leveling wedge
Wheel extractor
Magnetic chuck controller

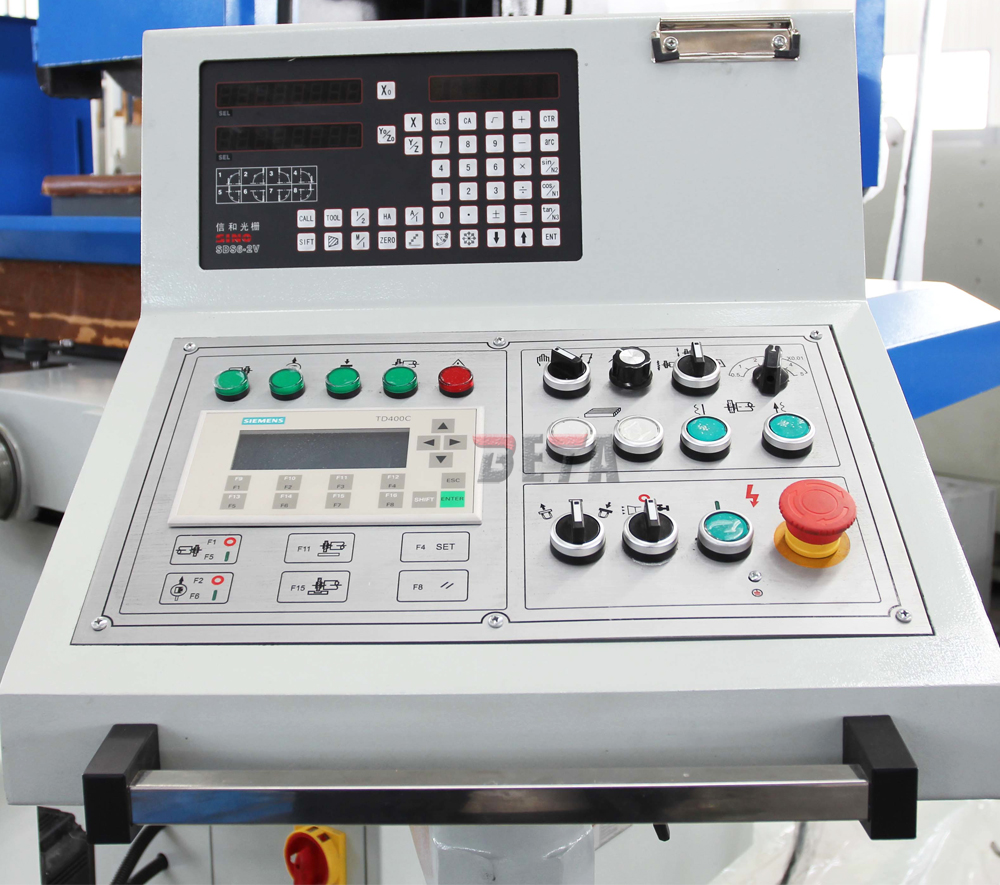

HMI + PLC auto grinding controller
Optional accessories:
Balancing stand
Magnetic separator & paper filter
Paper filter
Dusc exhaust apparatus
Magnetic separator
Radius dresser
Parallel wheel dresser
