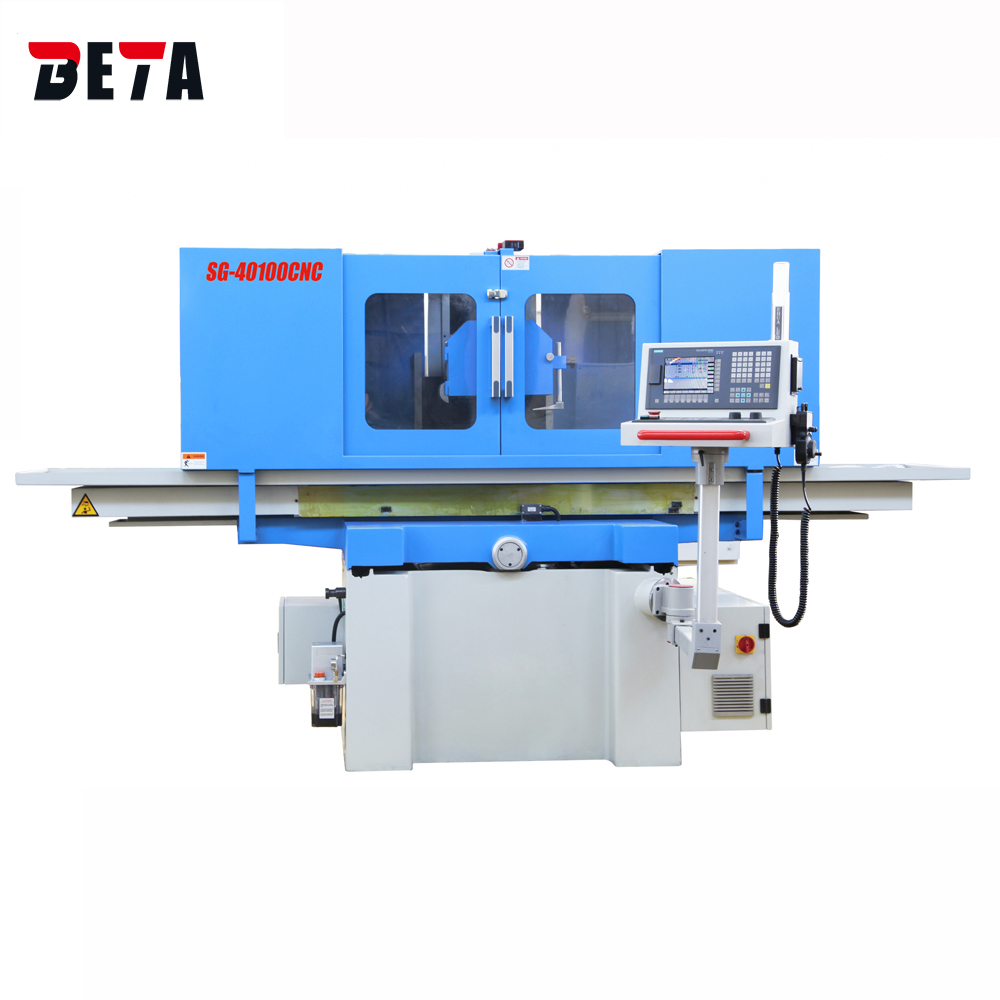

Surface grinding machine

SGA40100CNC

CNC controller automatic surface grinding machine
Worktable size 400x1000mm
AC servo motor

Features
Specification
CONFIGURATION

1.2 axis or 3 axis CNC control can be choosed for saddle moving surface grinding machine.

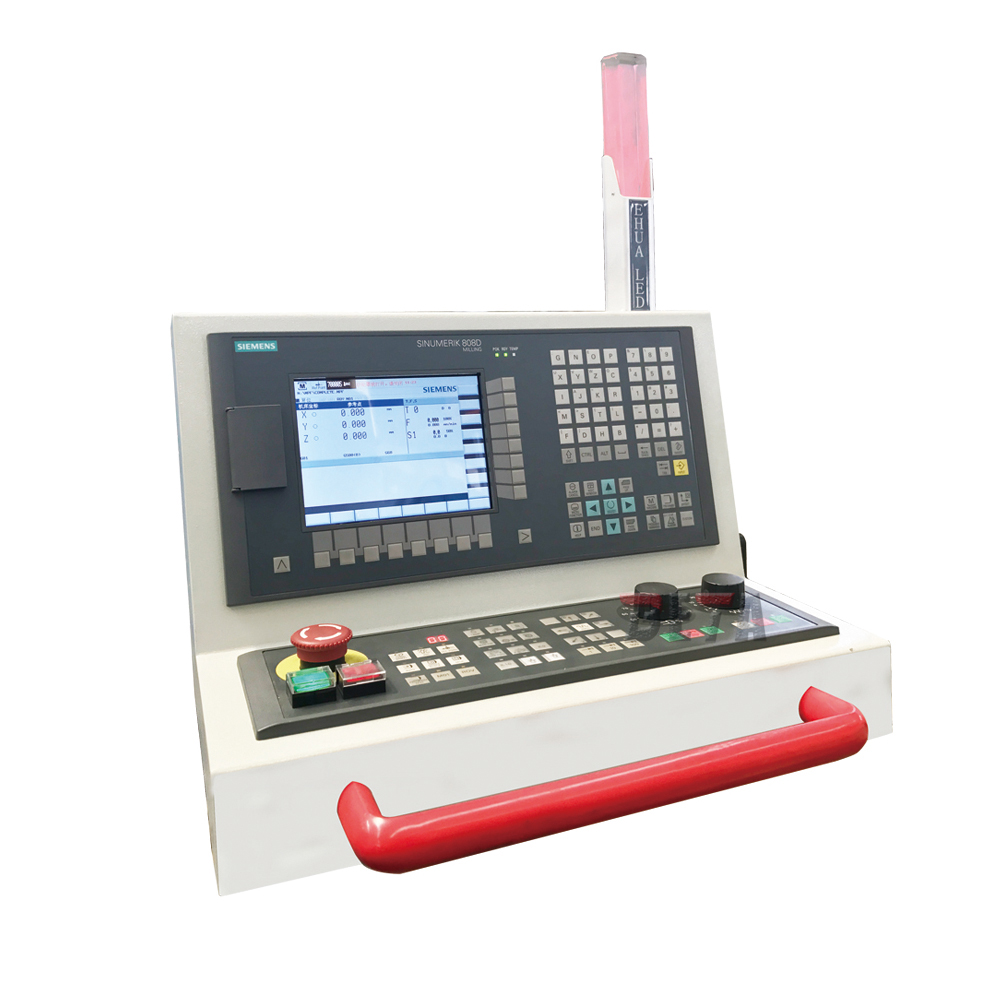

2.Siemens, FANUC CNC controller are recommended.

3.Elaborately designed closed safe guard with safety switch, have good apperance and safety operation field.

4.Precision grinding spindle and preload high precision angular ball bearing and driven by V3 motor, runs in maintenane-free, low vibration, and no noise.

5.CNC-2 model: Y/Z axis numerical control and linkaged, driven by AC servo motor and ball screw, X axis driven by hydraulic.

CNC-3 model: X/Y/Z axis numerical control and linkaged, driven by AC servo motor and ball screw.

Model	Unit	SG40100CNC
Table size	mm	406*1020
Magnetic chuck size	mm	400*1000
Max.distance from spindle center to table	mm	580
Max.loading capacity (include chuck)	kg	600
X-axis feed speed X-axis micro feed rate	mm/min mm	0.02-18/CNC-3 (5-25/CNC-2) 0.005/CNC-3 (--/CNC-2)
Y-axis feed speed Y-axis micro feed rate	mm/min mm	0.1-1000/CNC-3 0.005/CNC-3
Z-axis feed speed Z-axis micro feed rate	mm/min mm	0.1-1000 0.005
Spindle rotating speed	r/min	1450 (50HZ) / 1750 (60HZ)
Grind wheel size	mm	35040127
Spindle motor power	kw	4
Floor space (L*W)	mm	5000*2400
Gross weight	kg	4400
Packing size (LWH)	mm	375022502250

Standard accessories:

Work light

Balancing arbor

Splashing guard

Coolant tank

Wheel flange

Grinding wheel

Wheel dresser stand

Y/Z axis MPG

Leveling wedge

Wheel extractor

Magnetic chuck controller

HMI + PLC auto grinding controller

Optional accessories:

Balancing stand

Magnetic separator & paper filter

Paper filter

Dusc exhaust apparatus

Magnetic separator

Radius dresser

Parallel wheel dresser
