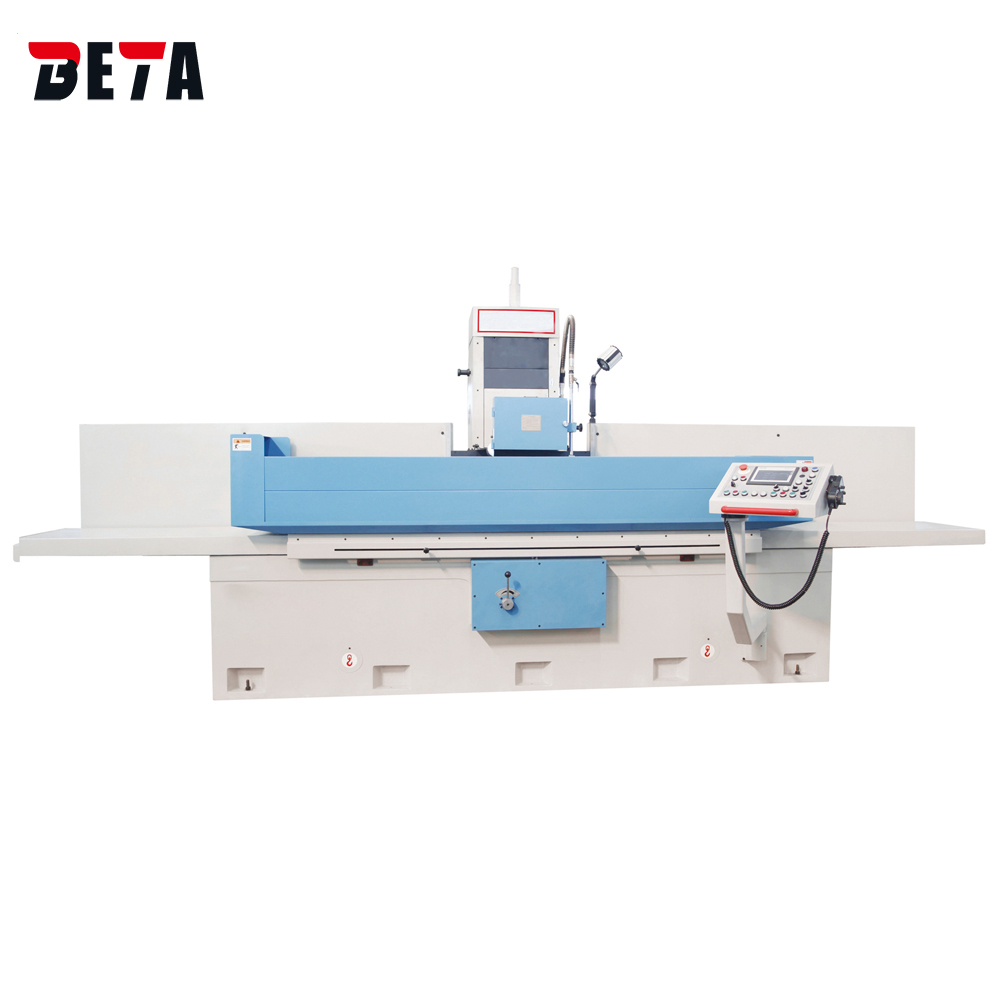

Surface grinding machine

SGA50160NC

Siemens 7 inch LCD-TFT colorful touch screen
Large worktable size
Automatic grinding

1.External hydraulic unit ensure low temperature rising and supply stable power.

2.Auto center lubrication unit.

3.Easy to set auto grinding program include rough, finish, and spark-out stroke.

4.Precision grinding spindle runs in maintance-free, support by preload high precision angular ball bearing.

5.Designed for continuous operating at maximum speed, very quiet operation, maximum accuracy.

6.Equipped with Siemens 7 inch LCD-TFT colorful touch screen, fully automatic grinding.

7. MPG is equipped for Y/Z axis , easy to control the machine.

Model	Unit	SGA50100NC	SGA50160NC
Table size	mm	500*1000	500*1600
Max.grinding size	mm	500*1000	500*1600
Max.distance from table to spindle center	mm	600	600
Magnetic chuck size (optional)	mm	50010001	5008002
Speed of table longitudinal move	m/min	5-25	5-25
Wheel head cross move
Auto intermittent feed	mm/t	0-30	0-30
Rapid speed	mm/min	0-600	0-600
Feed of MPG	mm/div	0.005	0.005
Wheel head vertical move
Auto feed	mm/t	0.005, 0.01, 0.02, 0.03, 0.04	0.005, 0.01, 0.02, 0.03, 0.04
Rapid speed	mm/min	0-300	0-300
Feed of MPG	mm/div	0.005	0.005
Grinding wheel size	mm	355(20-50)127	355(20-50)127
Motor of spindle	kw	7.5	7.5
Packing size	mm	399022502500	564022502500
Gross weight	kg	5500	6000

Standard accessories:

Work light

Balancing arbor

Splashing guard

Coolant tank

Wheel flange

Grinding wheel

Wheel dresser stand

Y/Z axis MPG

Leveling wedge

Wheel extractor

Magnetic chuck controller

HMI + PLC auto grinding controller

Optional accessories:

Balancing stand

Magnetic separator & paper filter

Paper filter

Dusc exhaust apparatus

Magnetic separator

Radius dresser

Parallel wheel dresser
