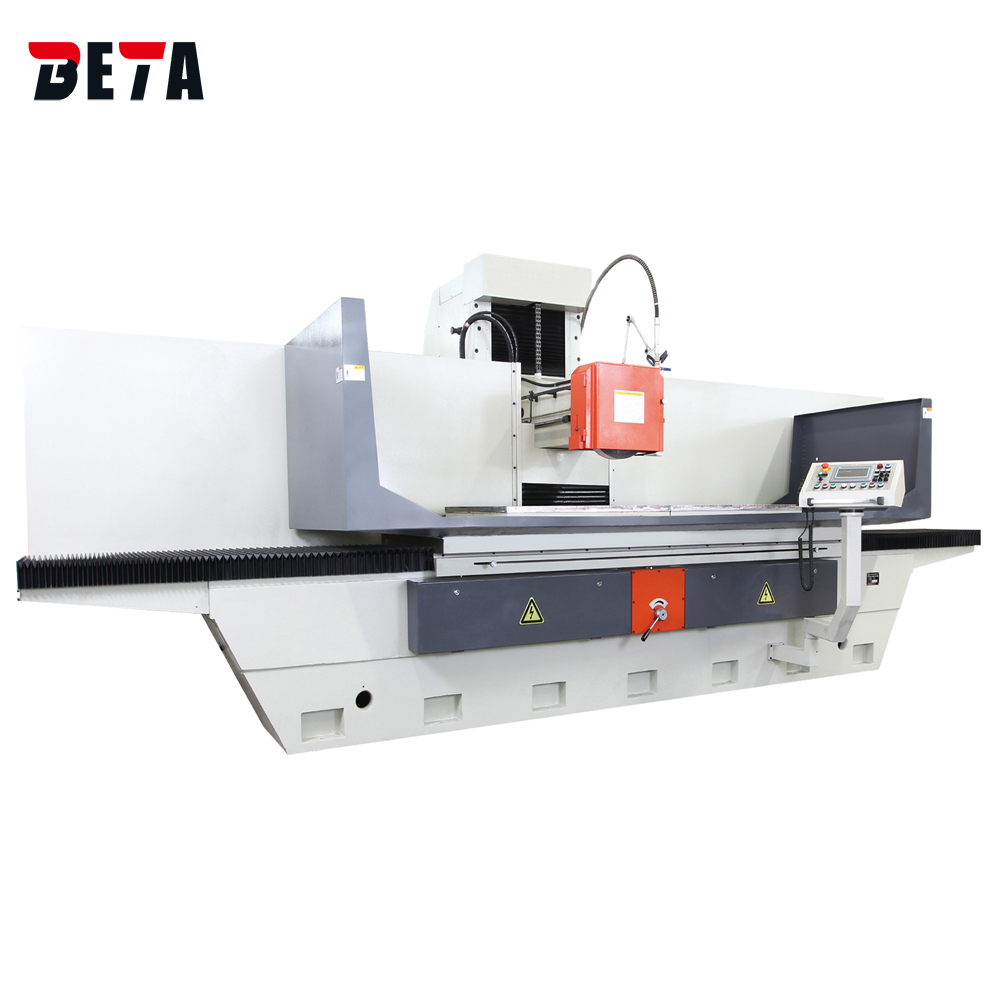

WhatsApp: +8618266249928WhatsApp: +86182662499281. Adopts Siemens 7 inch LCD-TFT colorful touch screen, built in program of engineer's genius designation to make the operation very simple and convenient for the users.
2. Adopts hydrostatic bearing for the spindle to get high rigidity, together with 18.5kw motor to provide strong power, apply to the heavy duty machining. Spindle rotation is supported by rigidity oil film, no wear, ensure the long time precision and life.
3.High rigidity rectangular guideway is designed on vertical motion, and coat with TURCITE-B belt, to get low fricion coefficien.
4. AC motor drives on cross and vertical motion. MPG replace the tradition mechanical hand wheel, which can realize higher accuracy and easy operation.
5. Independent, large capacity integrated hydraulic tank, standard equipped with air cooling and pressurizer, isolate heat and vibroseis, to provide excellent power for precision grinding.
Model | Unit | SG80160NC | SG80220NC | SG80300NC |
Table size | mm | 810*1600 | 810*2200 | 810*3000 |
Max.grinding area | mm | 810*1600 | 810*2200 | 810*3000 |
Max.grinding height | mm | 670 (830/1000 heihgt is optional) | 670 (830/1000 heihgt is optional) | 670 (830/1000 heihgt is optional) |
Magnetic chuck size (optional) | mm | 800*800*2 | 800*1000*2 | 800*1000*3 |
Max.loading capacity (including chuck) | kg | 2000 | 2400 | 3500 |
Speed of table longitudinal move | m/min | 5-25 | 5-25 | 5-25 |
Wheel head cross move | ||||
Auto intermittent feed | mm/t | 1-30 | 1-30 | 1-30 |
Rapid speed | mm/min | 50-2000 | 50-2000 | 50-2000 |
Feed of MPG | mm/div | 0.005 | 0.005 | 0.005 |
Wheel head vertical move | ||||
Auto down feed rate | mm/t | 0.005-0.05 | 0.005-0.05 | 0.005-0.05 |
Rapid down speed | mm/min | 50-2000 | 50-2000 | 50-2000 |
Feed of MPG | mm/div | 0.005 | 0.005 | 0.005 |
Grinding wheel rotating speed | r/min | 960 (50HZ) / 1150 (60HZ) (1450 is optional) | 960 (50HZ) / 1150 (60HZ) (1450 is optional) | 960 (50HZ) / 1150 (60HZ) (1450 is optional) |
Grinding wheel size | mm | 500*75*203 | 500*75*203 | 500*75*203 |
Motor of spindle | kw | 18.5 | 18.5 | 18.5 |
Oil pump motor | kw | 5.5 | 7.5 | 7.5 |
Y/Z-axis servo motor | kw | 3 | 3 | 3 |
Total rated power | KVA | 32 | 34 | 34 |
Floor space | mm | 4800*4000*2600 | 6000*4000*2600 | 8200*4000*2600 |
Gross weight | kg | 10500 | 12500 | 14000 |
Standard accessories:
Work light
Balancing arbor
Splashing guard
Coolant tank
Wheel flange
Grinding wheel
Wheel dresser stand
Y/Z axis MPG
Leveling wedge
Wheel extractor
Magnetic chuck controller
HMI + PLC auto grinding controller
Optional accessories:
Balancing stand
Magnetic separator & paper filter
Paper filter
Dusc exhaust apparatus
Magnetic separator
Radius dresser
Parallel wheel dresser
