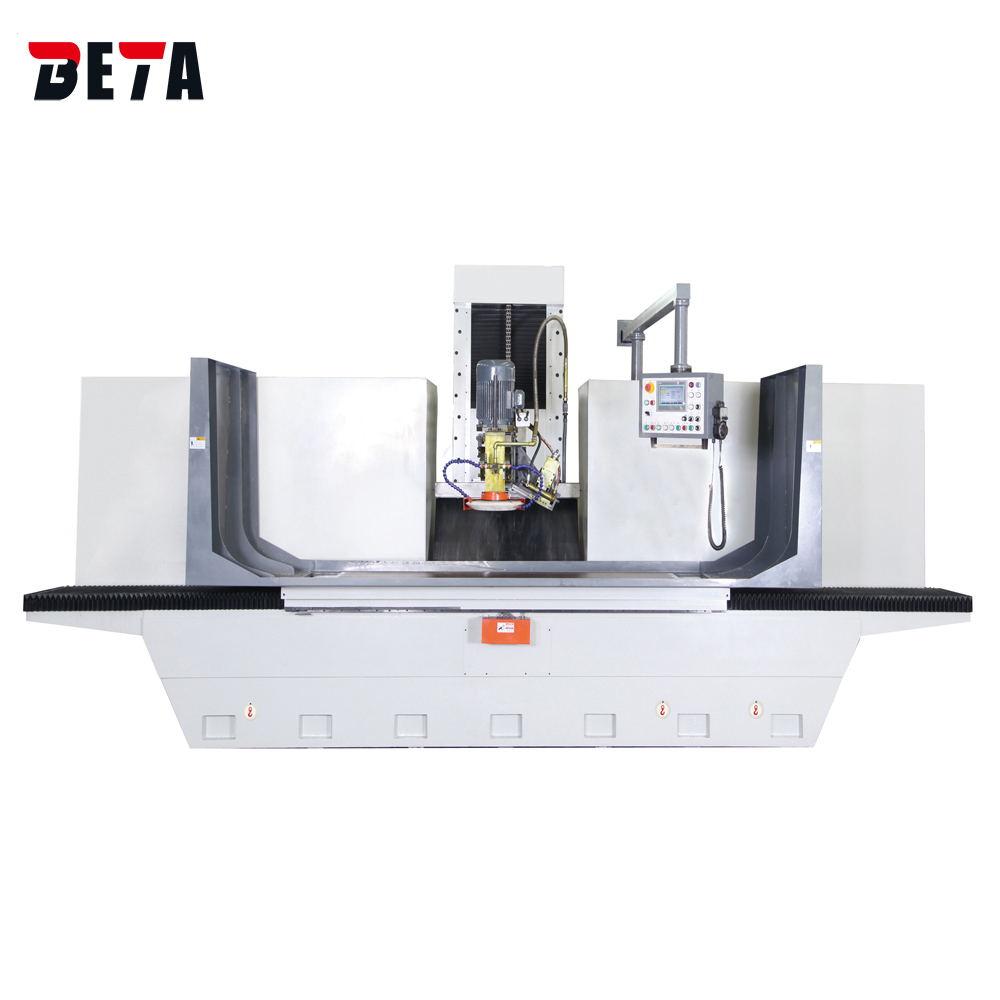

Surface grinding machine

SGT80220NC

PLC controller
Automatic grinding
Heavy duty casting

Features
Specification
CONFIGURATION

1. PLC controller guideway grinding machine.

2. Well designed machine bed is one high grade casting piece, which ensure heavy duty grinding.

3.Powful spindle motor is most important, it is an elaboration under well designed, and our ultimate goal is to balance high rigidity and great accuracy.

Model	Unit	SGT80160NC	SGT80220NC	SGT80300NC
Table size	mm	810*1600	810*2200	810*3000
Max.grinding area	mm	810*1600	810*2200	810*3000
Max.grinding height	mm	790 ( higher height is optional)	790 ( higher height is optional)	790 ( higher height is optional)
Spindle rotate	degree	+30, +5, -30, -5	+30, +5, -30, -5	+30, +5, -30, -5
Max.loading capacity	kg	1900	2300	3100
Speed of table longitudinal move	m/min	5-25	5-25	5-25
Wheel head cross move
Feed of MPG	mm/t	3-30	3-30	3-30
Rapid speed	mm/min	50-2000	50-2000	50-2000
Wheel head vertical move
Feed of MPG	mm/t	0.005	0.005	0.005
Rapid down speed	mm/min	50-2000	50-2000	50-2000
Grinding wheel rotating speed	r/min	1450	1450	1450
Grinding wheel size	mm	according to requirements	according to requirements	according to requirements
Motor of spindle	kw	5.5	5.5	5.5
Total rated power	KVA	17	17	19
Floor space	mm	470035002950	600035002950	820035002950
Gross weight	kg	10000	12000	14000

Standard accessories:

Work light

Balancing arbor

Splashing guard

Coolant tank

Wheel flange

Grinding wheel

Wheel dresser stand

Y/Z axis MPG

Leveling wedge

Wheel extractor

Magnetic chuck controller

HMI + PLC auto grinding controller

Optional accessories:

Balancing stand

Magnetic separator & paper filter

Paper filter

Dusc exhaust apparatus

Magnetic separator

Radius dresser

Parallel wheel dresser
