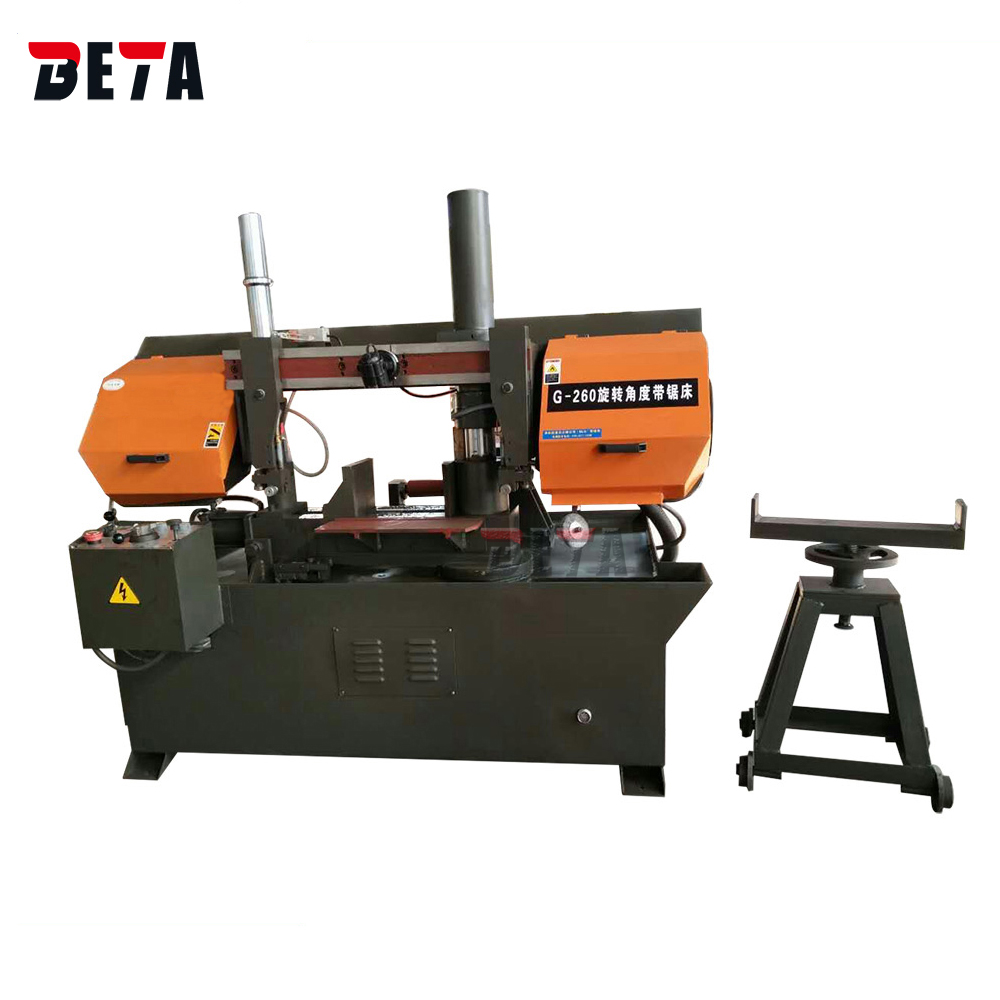

Angle cutting band saw
G260
Different angle cutting 0°~ -45°
Max. cutting diameter 260mm
Hydraulic clamping
Manual blade tensioning
  • Features
  • Specification
  • CONFIGURATION

1. Adopting double-column structure, the sawing declines steadily, with high precision and stable performance.

2. The angle rotation is accurate and convenient.

3. The band saw blade is tightened manually, which is easy to operate.

4. The saw band guide seat has a reasonable structure to ensure the guide accuracy and prolong the life of the saw band.

5. In order to maintain accurate and long-term maintenance, the main welding parts such as saw frame, gantry, base, etc. are all subjected to overheating and aging treatment.

6. The saw blade is narrow, material saving, energy saving, high cutting precision, convenient operation and high production efficiency.


ModelG260
Cutting capacity at 0°round 260mm,  square 260x260mm
Cutting capacity at -45°round 200mm, square 200x260mm
Blade size 3505x27x0.9 mm
Cutting angle0° ~ - 45°
Blade cutting speed 40/60/80 m/min
Main motor power 2.2 kw
Oil pump motor power 0.42 kw
Coolant pump motor power 0.04 kw
Clamping typeHydraulic
Saw blade tensionManual
Net weight 900 kg
Overall dimension1700x1200x1550 mm


Standard configuration:

Hydraulic clamping

Manual blade tensioning

2.2kw motor

Saw blade 1 piece

Hydraulic oil pump

Coolant water pump

Control cabinet
