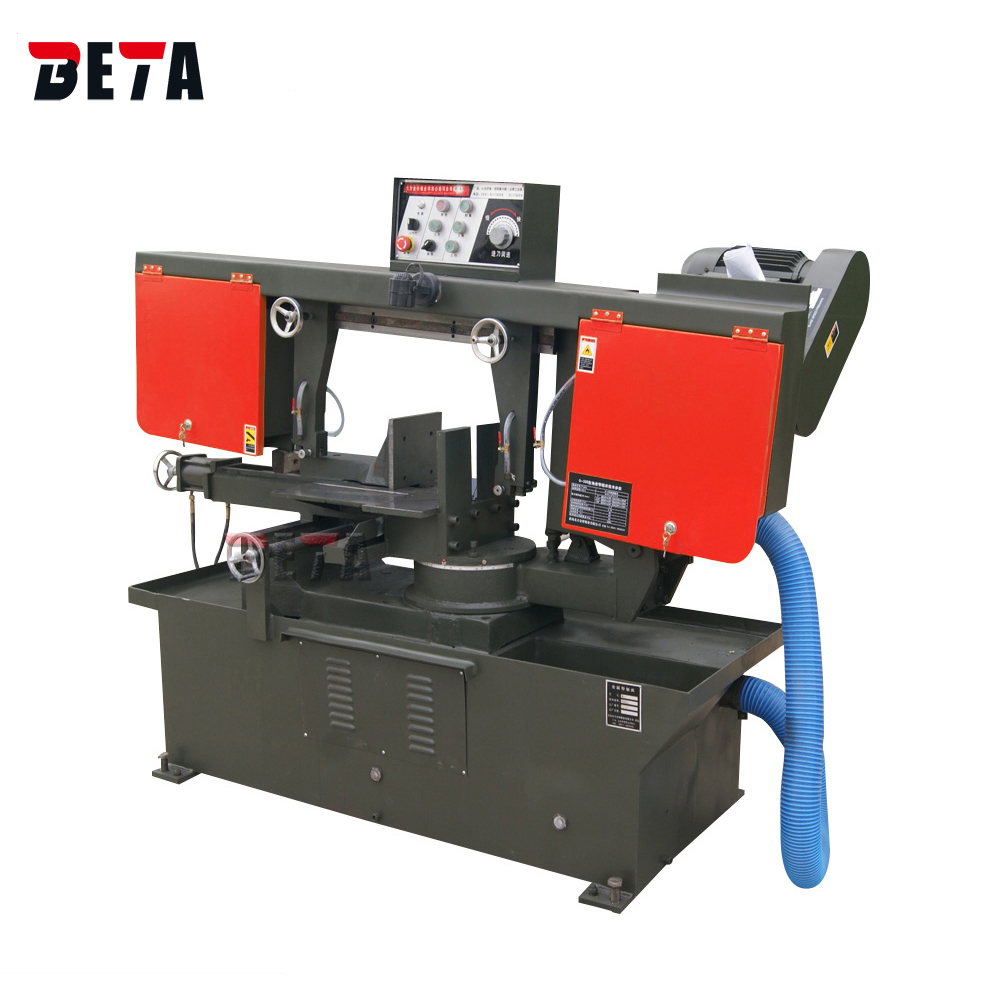

Angle cutting band saw
G330
Different angle cutting +45°~ -60°
Max. cutting diameter 330mm
Hydraulic clamping
Manual blade tensioning
  • Features
  • Specification
  • CONFIGURATION

1. This machine introduces and absorbs the performance characteristics of foreign sawing machines, hydraulic balancing cylinders, high-strength balancing springs and hydraulic stepless speed regulation.

2. The material cut by the sawing machine does not move, and the saw frame can rotate 0-45˚ in the forward direction or 0-60˚ in the reverse direction, which is suitable for cutting various angle steels, round pipes, rectangular pipes, etc. with angle requirements.

3. The bed at the clamp position can be moved forwards and backwards for easy clamping of materials.


ModelG330
Cutting capacity at 0°round 330mm,  square 460x305mm
Cutting capacity at ±45°round 305mm, square 305x305mm
Cutting capacity at -60°round 220mm,  square 220x305mm
Blade size 4115x27x0.9 mm
Cutting angle+45° ~-60°
Blade cutting speed 40/60/80 m/min
Main motor power 2.2 kw
Oil pump motor power 0.42 kw
Coolant pump motor power 0.04 kw
Clamping typeHydraulic
Saw blade tensionManual
Net weight 950 kg
Overall dimension1900x900x1550 mm


Standard configuration:

Hydraulic clamping

Manual blade tensioning

2.2kw motor

Saw blade 1 piece

Hydraulic oil pump

Coolant water pump

Control cabinet
