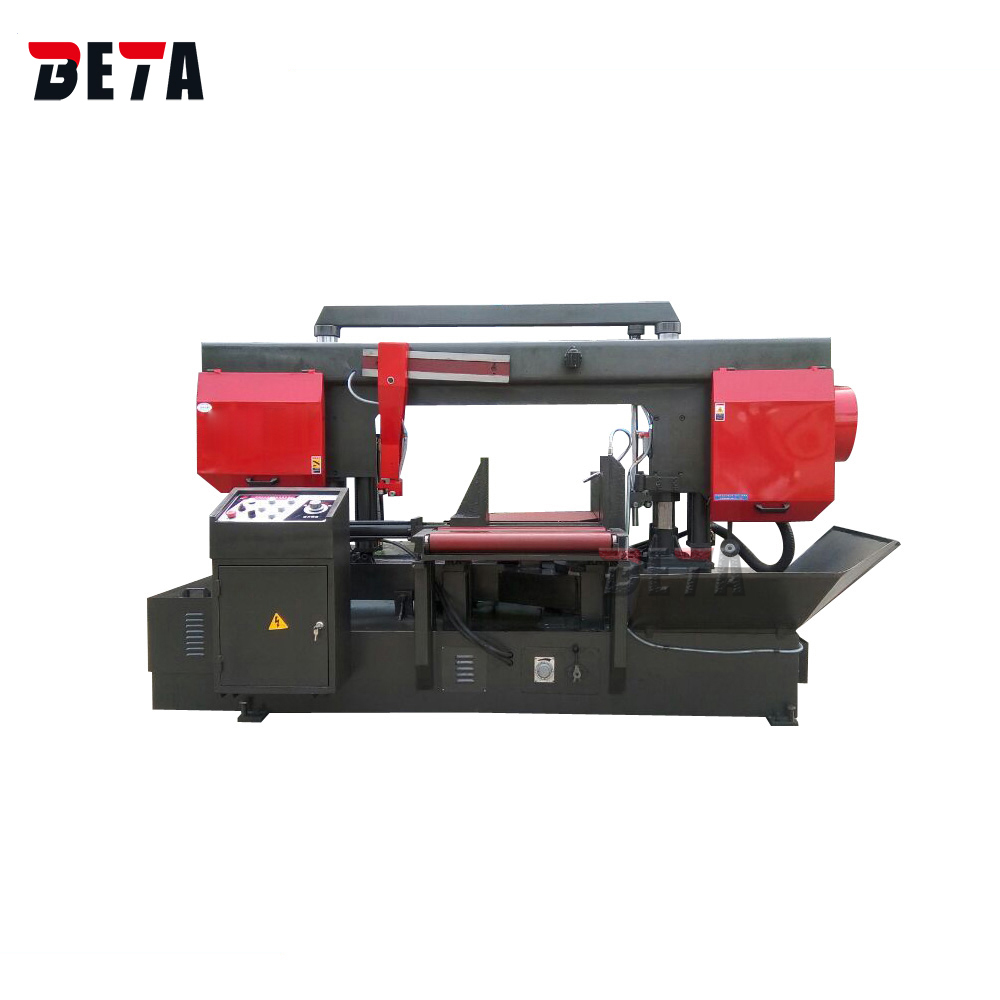

1. The double-column structure is adopted, the sawing drops smoothly, the sawing precision is high, and the performance is stable.
2. The angle rotation is accurate and convenient.
4. Hydraulic vise clamping, hydraulic control feed, feed speed stepless speed regulation.
5. Simple and convenient operation and maintenance.
6. The saw band guide seat has a reasonable structure to ensure the guide accuracy and prolong the life of the saw band.
| Model | G400 |
| Cutting capacity at 0° | round 400mm, square 500x400mm |
| Cutting capacity at -45° | round 400mm, square 450x400mm |
| Cutting angle | 0° ~ -45° |
| Blade size | 4800x34x1.1 mm |
| Blade cutting speed | 40/60/80 m/min |
| Main motor power | 4 kw |
| Oil pump motor power | 0.75 kw |
| Coolant pump motor power | 0.09 kw |
| Clamping type | Hydraulic |
| Saw blade tension | Manual |
| Net weight | 1500 kg |
| Overall dimension | 2000x1200x1500 mm |
Standard configuration:
Hydraulic clamping
Manual blade tensioning
4kw motor
Saw blade 1 piece
Hydraulic oil pump
Coolant water pump
Control cabinet
