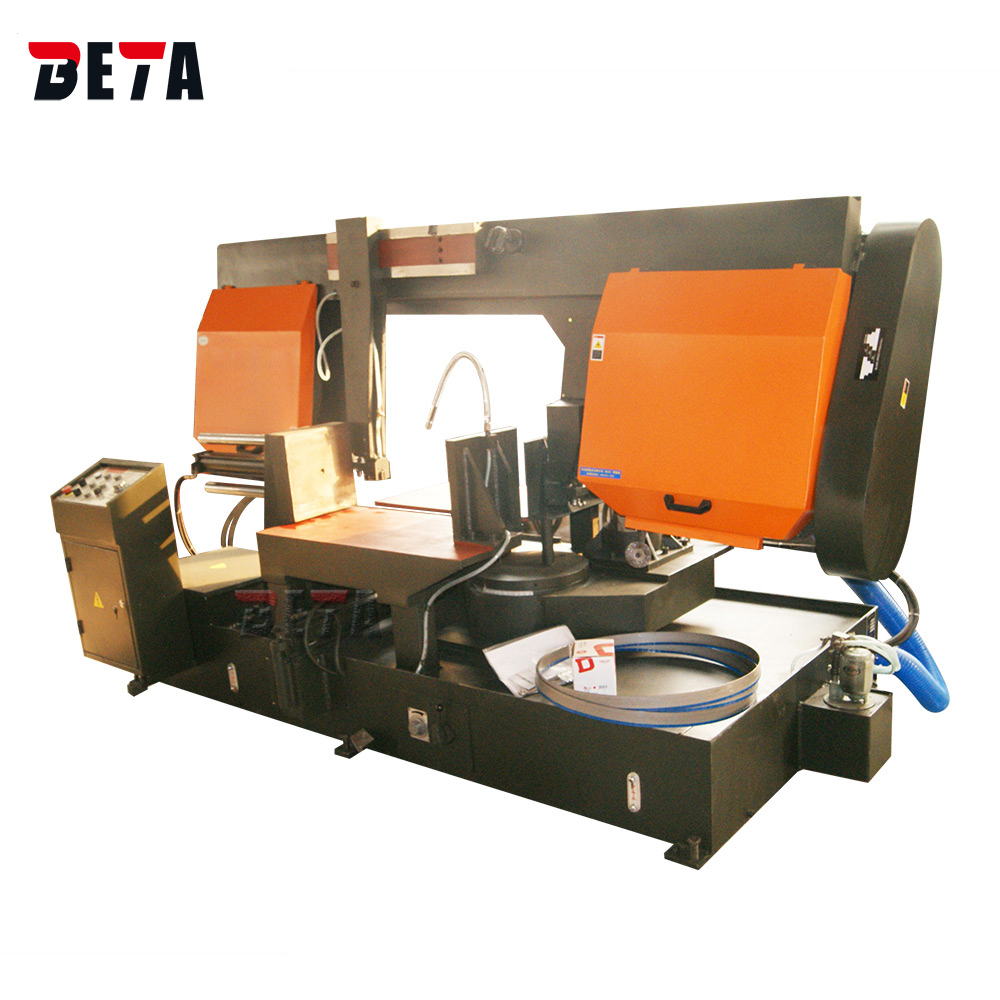

Angle cutting band saw
G500
Different angle cutting 0°~45°
Max. cutting diameter 500mm
Hydraulic clamping
Hydraulic blade tensioning
  • Features
  • Specification
  • CONFIGURATION

1. The double column structure is adopted, the sawing drops smoothly, the sawing precision is high, the performance is stable, and the operation and maintenance are simple and convenient.

2. The angle rotation is accurate and convenient

3. Hydraulic vise clamping, hydraulic control feed, feed speed stepless speed regulation

4. The saw band guide seat has a reasonable structure to ensure the guiding accuracy and prolong the life of the saw band


Model

G500

Cutting capacity at 0°

round 500mm,  square H500xW600mm

Cutting capacity at -45°

round 500mm, square H500xW500mm

Blade size

5800*41*1.3 mm

Blade cutting speed

40/60/80 m/min     worm gear driven

Main motor power

5.5 kw

Oil pump motor power

0.75 kw

Coolant pump motor power

 0.09 kw

Clamping type

Hydraulic

Saw blade tension

Hydraulic

Height of worktable

650 mm

Overall dimension

2600*1600*1650 mm

Machine weight

2000 kg


Standard configuration:

Hydraulic clamping

Hydraulic blade tensioning

5.5kw motor

Saw blade 1 piece

Hydraulic oil pump

Coolant water pump

Control cabinet
