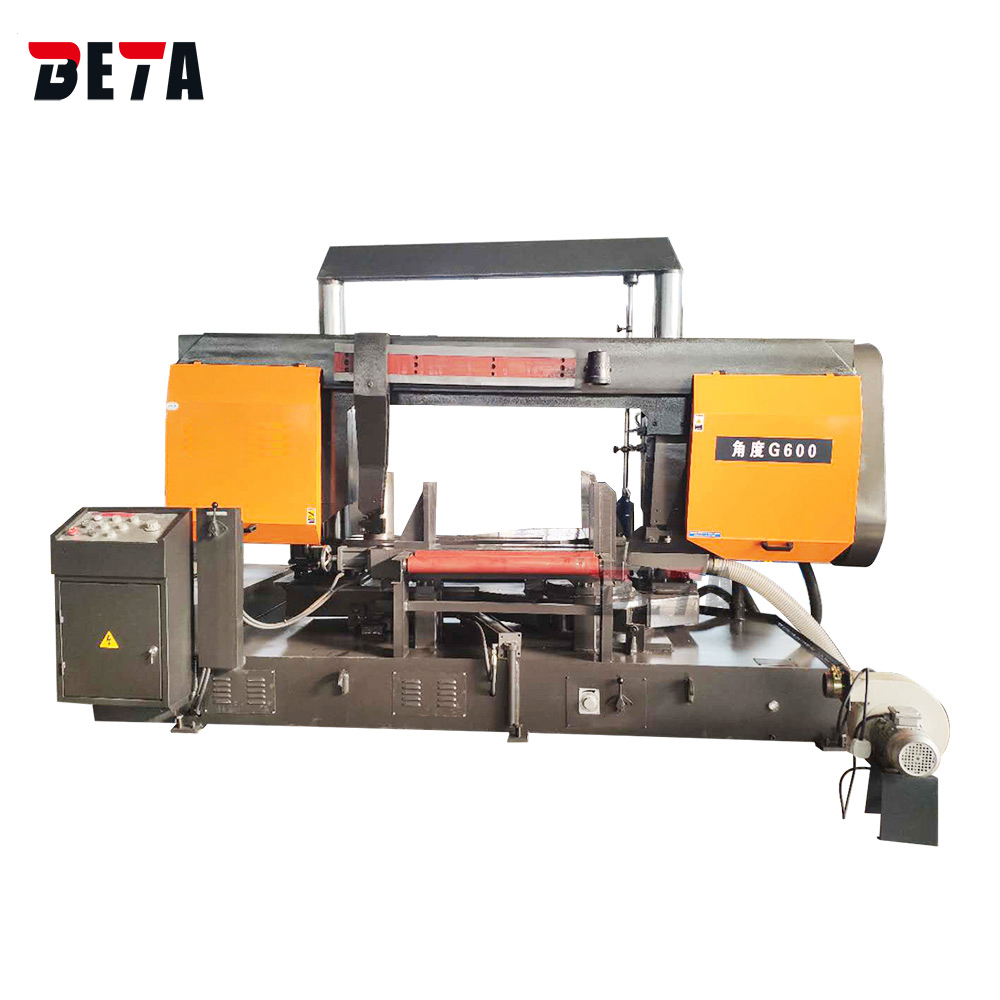

Angle cutting band saw
G600
Different angle cutting 0°~45°
Max. cutting diameter 600mm
Hydraulic clamping
Hydraulic blade tensioning
  • Features
  • Specification
  • CONFIGURATION

1. The uniquely sealed and maintenance-free deceleration system is equipped with a worm gear structure to maintain permanent lubrication to ensure the stable operation of the saw band and prolong the service life of the saw band.

2. The perfect combination of hydraulic lifting oil + high-strength balance spring and stepless speed regulation ensures that the machine tool reaches the best condition, so that the saw band is not easy to be damaged by the teeth.

3. The unique saw band protection device minimizes the breakage of the saw band

4. The sawing machine has an adjustable saw band guide device to ensure the smooth running of the saw band and greatly improve the cutting quality and service life of the saw band.

5. With multiple safety circuit protection functions, the sawing machine can be started for cutting only when the safety links of the machine tool meet the requirements.

6. It can perform fast and precise positioning and cutting at multiple angles of 0°~45°.

7. Using the cutting stroke switch control button, the cutting stroke can be adjusted at any time according to the size of the workpiece, which greatly improves the work efficiency.


Model

G600

Cutting capacity at 0°

round 600mm,  square H600xW700mm

Cutting capacity at -45°

round 600mm, square H600xW600mm

Blade size

6800*41*1.3 mm

Blade cutting speed

40/60/80 m/min     worm gear driven

Main motor power

5.5 kw

Oil pump motor power

1.5 kw

Coolant pump motor power

 0.09 kw

Clamping type

Hydraulic

Saw blade tension

Hydraulic

Height of worktable

650 mm

Overall dimension

3000*1600*1750 mm

Machine weight

3000 kg


Standard configuration:

Hydraulic clamping

Hydraulic blade tensioning

5.5kw motor

Saw blade 1 piece

Hydraulic oil pump

Coolant water pump

Control cabinet
