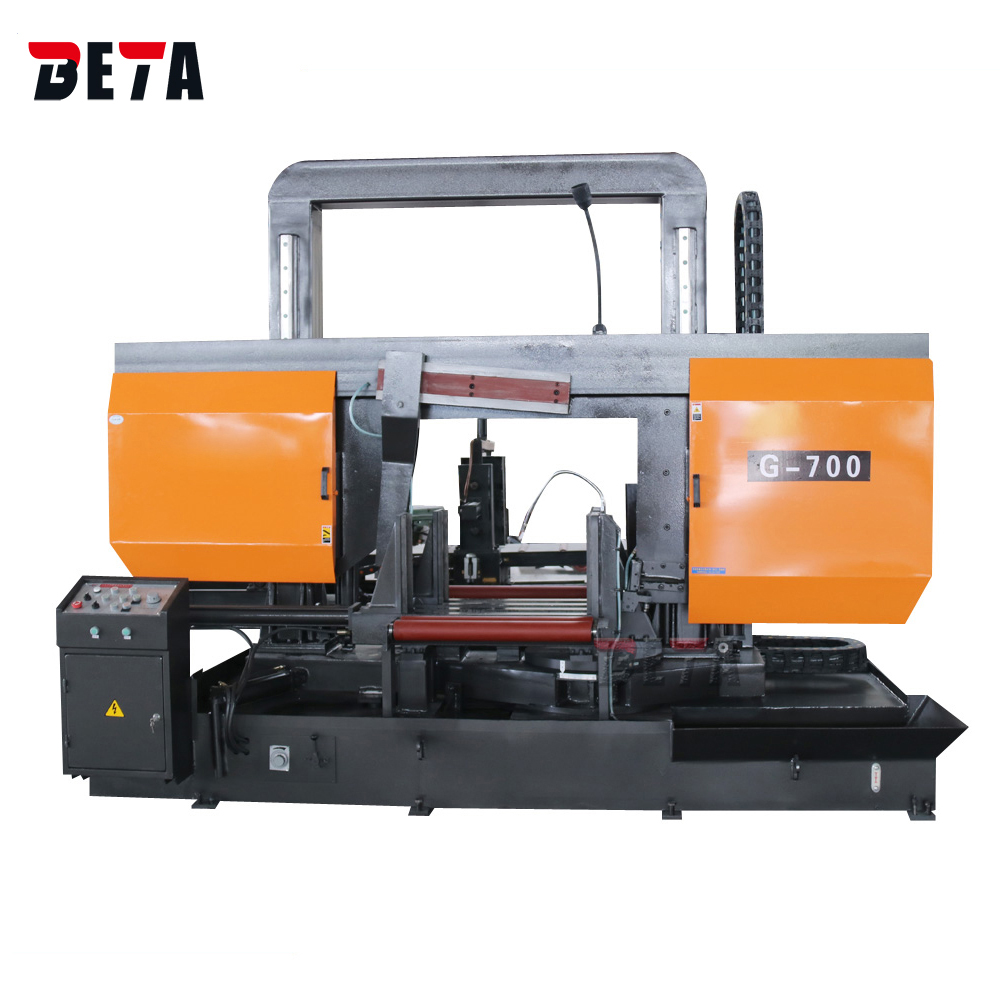

Angle cutting band saw
G700
Different angle cutting
Max. cutting diameter 700mm
Hydraulic clamping
Hydraulic tensioning
  • Features
  • Specification
  • CONFIGURATION

1. Sealed unique maintenance-free deceleration system, equipped with a worm gear mechanism, to maintain permanent lubrication, ensure the stable operation of the saw blade, and extend the service life of the saw blade.

2. The unique saw blade protection device minimizes the situation of saw blade breakage.

3. The sawing machine has an adjustable saw blade guide device to ensure the smooth running of the saw blade and greatly improve the cutting quality and service life of the saw blade.

4. It has a variety of safety circuit protection functions, safe and reliable, and protects the operator.

5. Multi-angle fast and accurate positioning and cutting can be carried out.

6. Using cutting stroke switch control, the cutting stroke can be adjusted at any time according to the size of the workpiece to improve work efficiency



Model

G700

Cutting capacity at 0°

round 700mm,  square H750xW700mm

Cutting capacity at -15°

round 700mm, square H700xW700mm

Blade size (mm)

7600*54*1.6

Blade cutting speed (m/min)

25/45/60/75 stepped pulley gear shift

Main motor power (KW)

7.5

Oil pump motor power (KW)

2.2 kw

Coolant pump motor power (KW)

0.37

Clamping type

Hydraulic

Feeding type

Hydraulic, variable speed

Cutting angle adjustment

hydraulic cylinder driven, scale display

Max. loading of worktable

5000 kgs


Standard configuration:

Hydraulic clamping

Hydraulic blade tensioning

Hydraulic feeding

Saw blade 1 piece

Oil pump

Coolant water pump

Control cabinet
