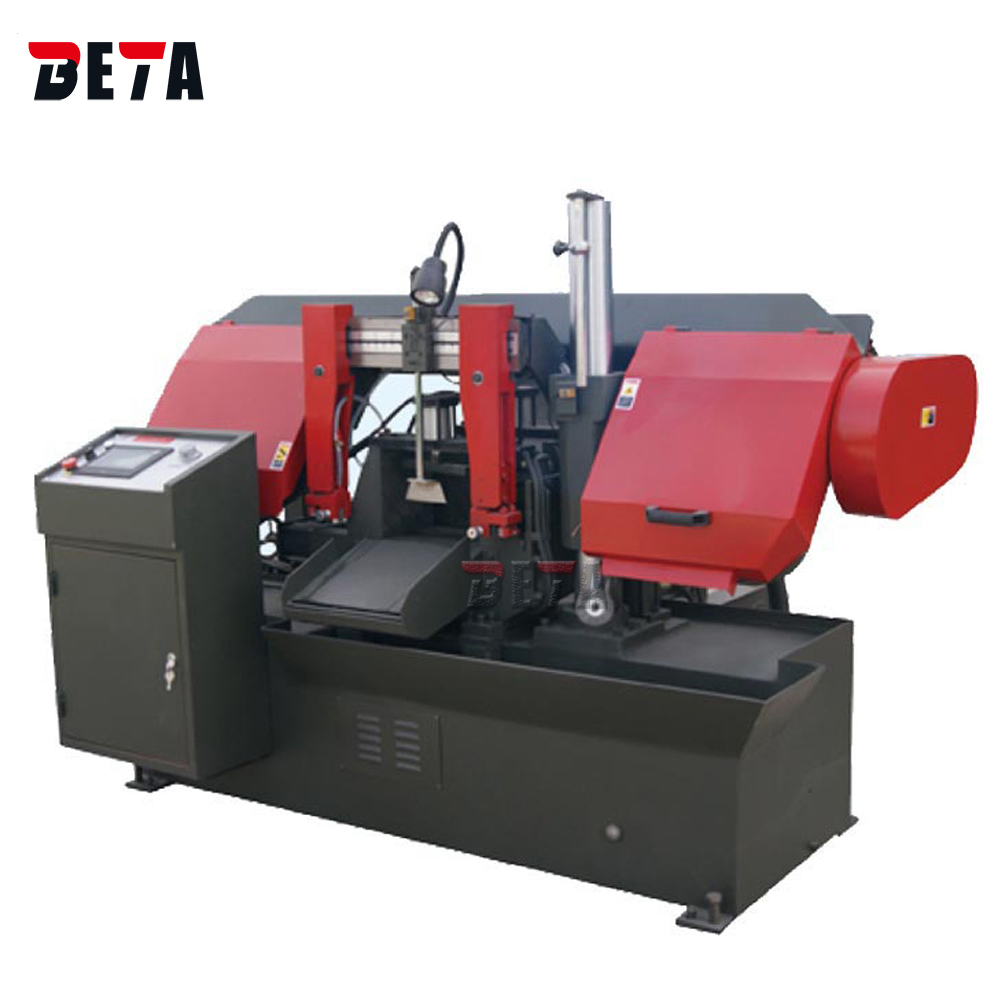

CNC band saw
GS320
PLC automatic control system
Max. cutting diameter 320mm
Hydraulic clamping
Manual blade tensioning
  • Features
  • Specification
  • CONFIGURATION

1. Double column structure to ensure guiding accuracy, stable and reliable sawing

2. Using PLC control system, one or several sets of data can be set for continuous cutting, which is suitable for batch production and continuous cutting.

3. The transmission mechanism of the sawing machine is precisely balanced and corrected to reduce vibration to ensure that the saw blade is not easy to break or pull the teeth.

4. Manual and automatic dual function selection

5. Adopting grating linear scale to control the feeding length with high precision


ModelGS320
Cutting capacity at 0°round 320mm,  square 320x320mm
Bundle cutting capacityMax. 280x140mm, Min.200x90mm
Blade size 4115x34x1.1 mm
Blade cutting speed 40/60/80 m/min
Main motor power3 kw
Oil pump motor power0.75 kw
Coolant pump motor power  0.09 kw
Clamping typeHydraulic
Saw blade tensionManual
Overall dimension2100*1900*1500 mm
Machine weight1400 kg


Standard configuration:

PLC automatic control system

Hydraulic clamping

Manual blade tensioning

3kw motor

Saw blade 1 piece

Hydraulic oil pump

Coolant water pump
