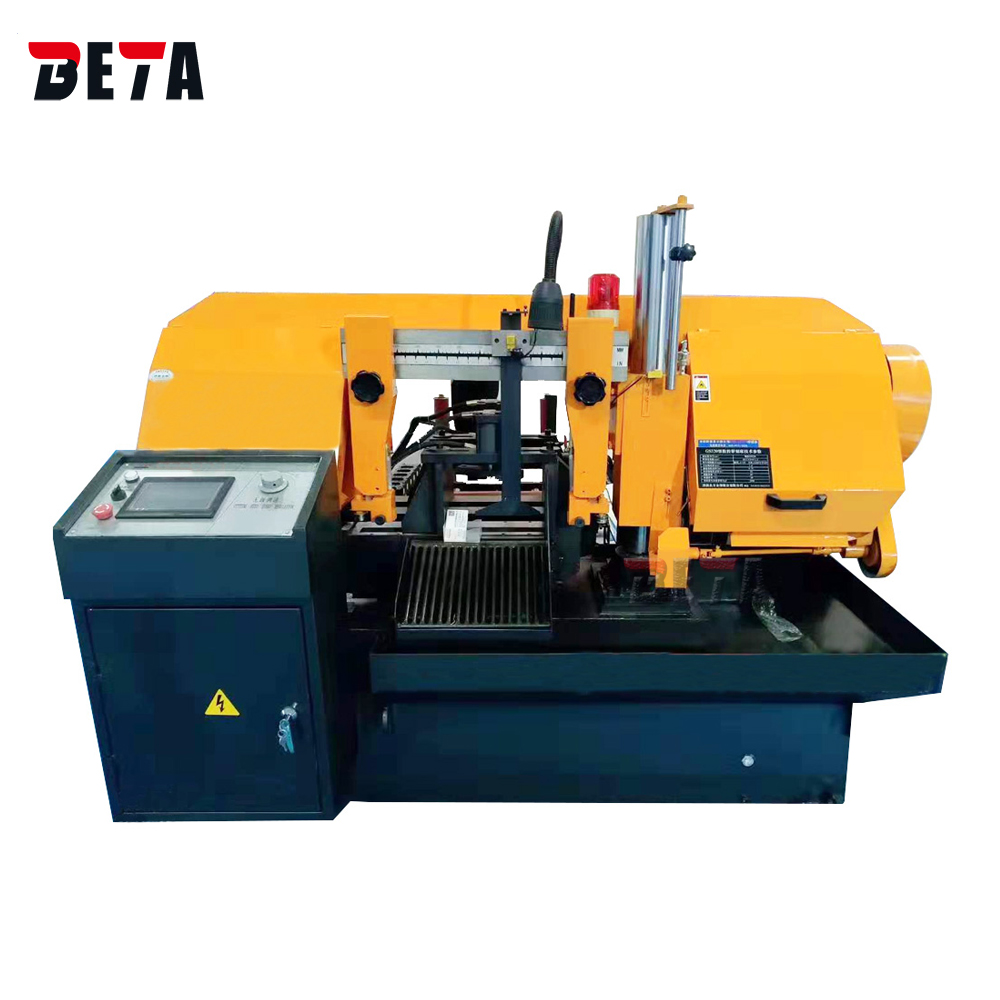

CNC band saw
GS400
PLC automatic control system
Max. cutting diameter 400mm
Hydraulic clamping
Manual blade tensioning
  • Features
  • Specification
  • CONFIGURATION

1. Fully automatic CNC sawing machine, suitable for continuous cutting in batch production.

2. Using PLC control system, one or several sets of data can be set for continuous cutting, and the repeated feeding accuracy is 0.2mm.

3. Color touch screen operation, man-machine interface replaces the traditional button control panel.

4. Adopting grating ruler to control the feeding length, the single largest feeding stroke is 500mm, and the length of more than 500mm can be divided into multiple feedings.


ModelGS400
Cutting capacity at 0°round 400mm,  square 400x400mm
Bundle cutting capacityMax. 300x160mm, Min.200x90mm
Blade size 4900x41x1.3 mm
Blade cutting speed 40/60/80 m/min
Main motor power4 kw
Oil pump motor power0.75 kw
Coolant pump motor power  0.09 kw
Clamping typeHydraulic
Saw blade tensionManual
Overall dimension2200x1700x1750 mm
Machine weight1800 kg


Standard configuration:

PLC automatic control system

Hydraulic clamping

Manual blade tensioning

4kw motor

Saw blade 1 piece

Hydraulic oil pump

Coolant water pump
