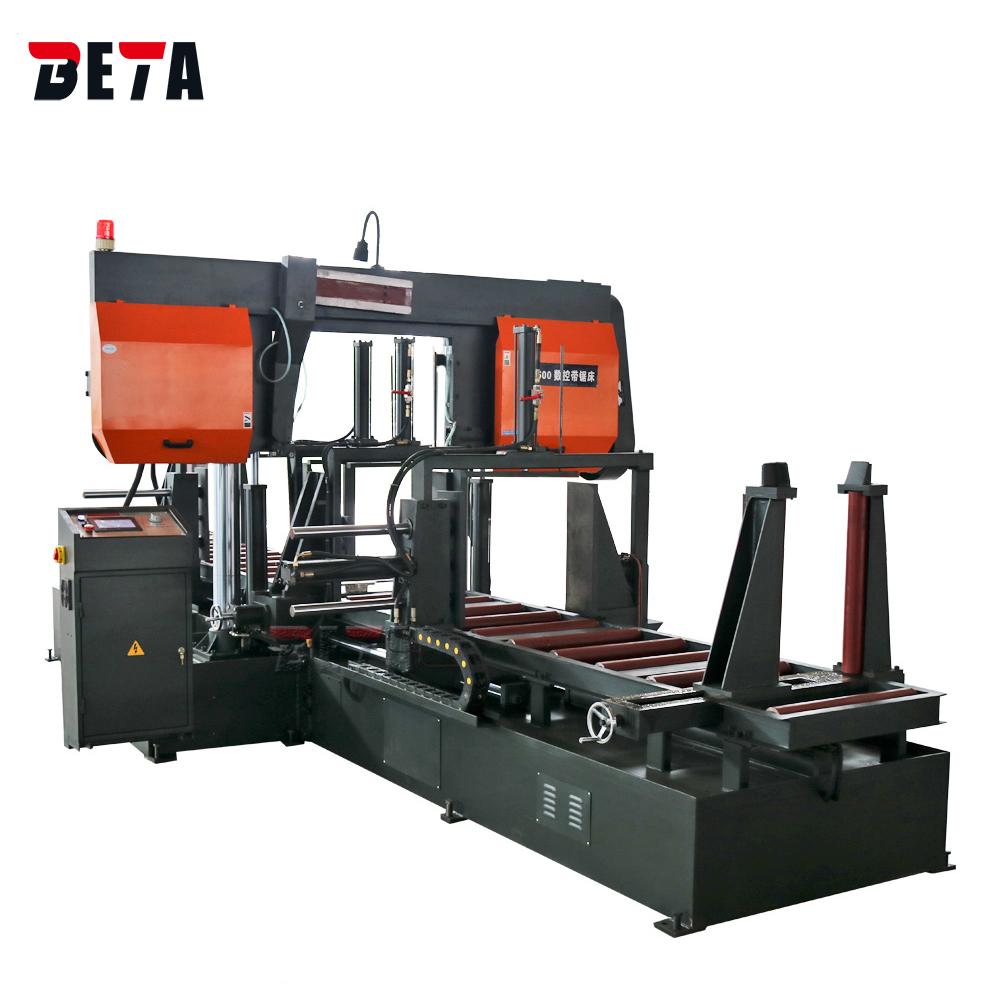

CNC band saw
GS600
PLC automatic control system
Max. cutting diameter 600mm
Hydraulic clamping
Hydraulic blade tensioning
  • Features
  • Specification
  • CONFIGURATION

1. Fully automatic CNC sawing machine, suitable for continuous cutting in batch production. Single stroke 500mm, repeated feeding accuracy 0.2mm.

2. Using PLC control system, one group or several groups of data can be set for continuous cutting.

3. Color touch screen operation, man-machine interface replaces the traditional button control panel.

4. Adopting grating ruler to control the feeding length, the single largest feeding stroke is 500mm, and the length of more than 500mm can be divided into multiple feedings.


ModelGS600
Cutting capacity at 0°round 600mm,  square 600*600mm
Bundle cutting capacityMax. 600x600mm
Blade size 6300*41*1.3 mm
Blade cutting speed 40/60/80 m/min
Main motor power5.5 kw
Oil pump motor power1.5 kw
Coolant pump motor power  0.12 kw
Clamping typeHydraulic
Saw blade tensionHydraulic
Overall dimension3100*3000*2000 mm
Machine weight3500 kg


Standard configuration:

PLC automatic control system

Hydraulic clamping

Hydraulic blade tensioning

5.5kw motor

Saw blade 1 piece

Hydraulic oil pump

Coolant water pump
