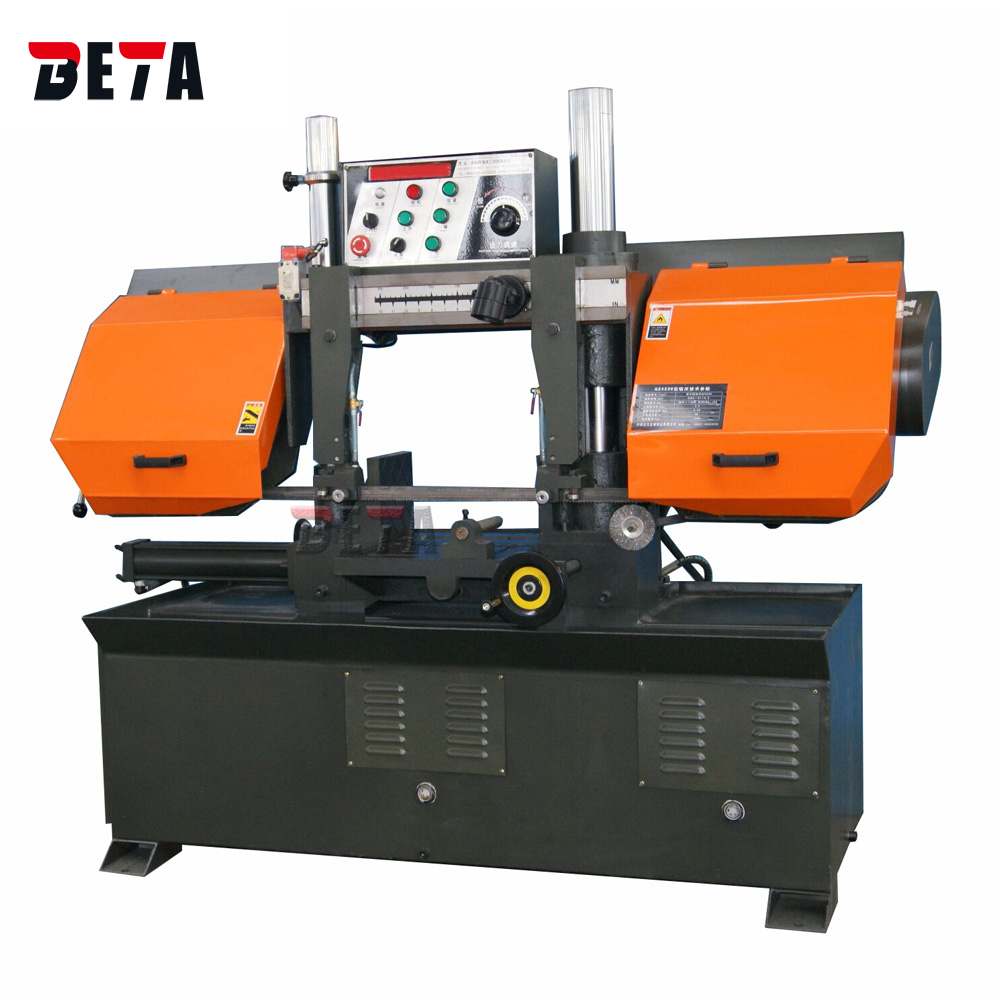

Horizontal band saw
GZ4230
Max. cutting diameter 300mm
​Hydraulic clamping
Manual blade tensioning
  • Features
  • Specification
  • CONFIGURATION

1. Double-cylindrical structure to ensure guiding accuracy, stable and reliable sawing

2. Semi-automatic control, hydraulic clamping, convenient operation, strong sawing ability

3. The transmission mechanism of the sawing machine is precisely balanced and corrected to reduce vibration and ensure that the saw belt is not easy to break or pull the teeth.


Model

GZ4230

Cutting capacity

300mm,  300x300mm

Blade size

3505x27x0.9mm

Blade cutting speed

40/60/80 m/min

Main motor power

2.2 kw

Oil pump motor power

0.42 kw

Coolant pump motor power

0.04 kw

Clamping type

Hydraulic

Saw blade tension

Manual

Main drive structure

Worm gear

Net weight

680 kg

Overall dimension

1700x900x1400 mm


Standard configuration:

Hydraulic clamping

Manual blade tensioning

2.2kw motor

Saw blade 1 piece

Hydraulic oil pump

Coolant water pump
