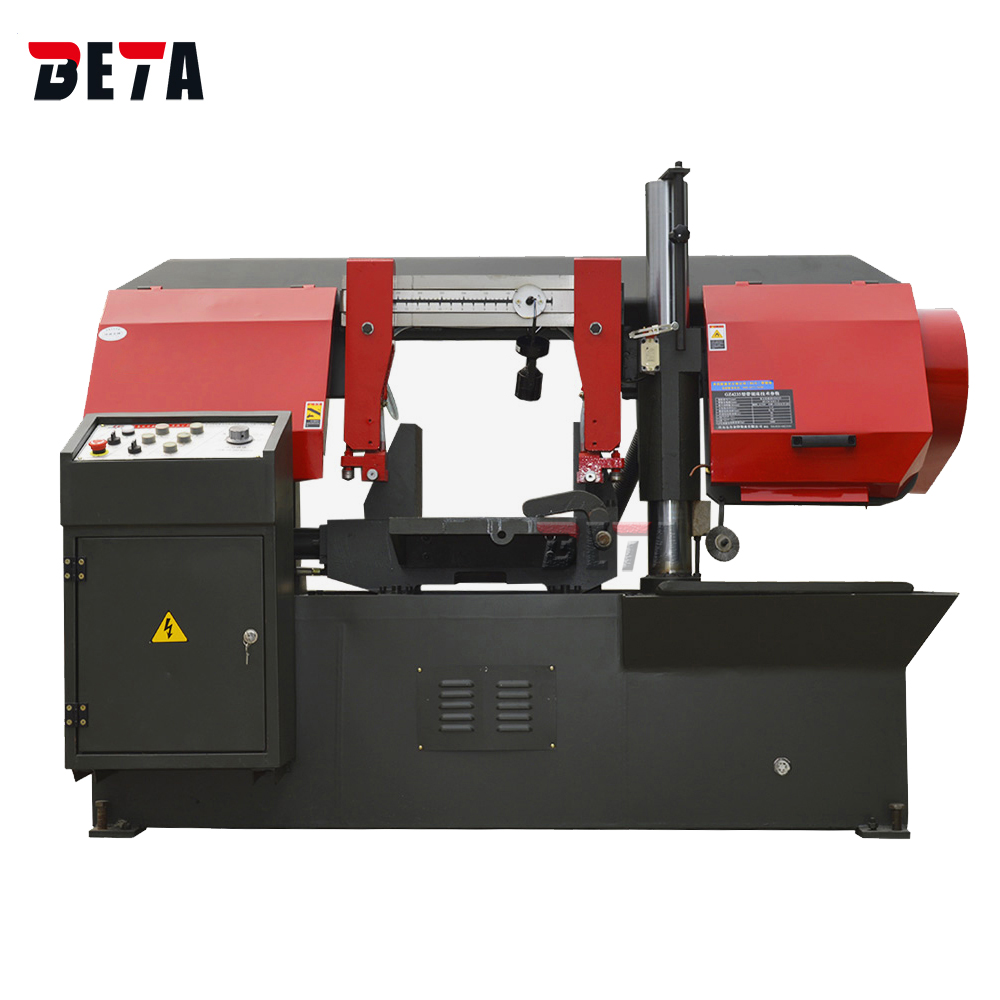

Horizontal band saw
GZ4235
Max. cutting diameter 350mm
​Hydraulic clamping
Manual blade tensioning
  • Features
  • Specification
  • CONFIGURATION

1. Double-column structure to ensure guiding accuracy, stable and reliable sawing.

2. Hydraulic clamping makes it easy to tighten the material, and the sawed workpiece will not loosen, so as to avoid pressure damage to the saw band and protect the saw band.

3. Single jaw hydraulic clamping, sawing can be minimized, reducing material loss.

4. The steel brush removes chips, effectively cleans the iron chips between the teeth, and prolongs the service life of the saw band.

5. The transmission mechanism of the sawing machine is precisely balanced and corrected to reduce vibration to ensure that the saw belt is not easy to break or pull the teeth.



Model

GZ4235

Cutting capacity

350mm,  350*350mm

Blade size

4110*34*1.1mm

Blade cutting speed

40/60/80 m/min

Main motor power

3 kw

Oil pump motor power

0.55 kw

Coolant pump motor power

0.04 kw

Clamping type

Hydraulic

Saw blade tension

Manual

Main drive structure

Worm gear

Net weight

1100 kg

Overall dimension

1950*1300*1500mm


Standard configuration:

Hydraulic clamping

Manual blade tensioning

3kw motor

Saw blade 1 piece

Hydraulic oil pump

Coolant water pump
