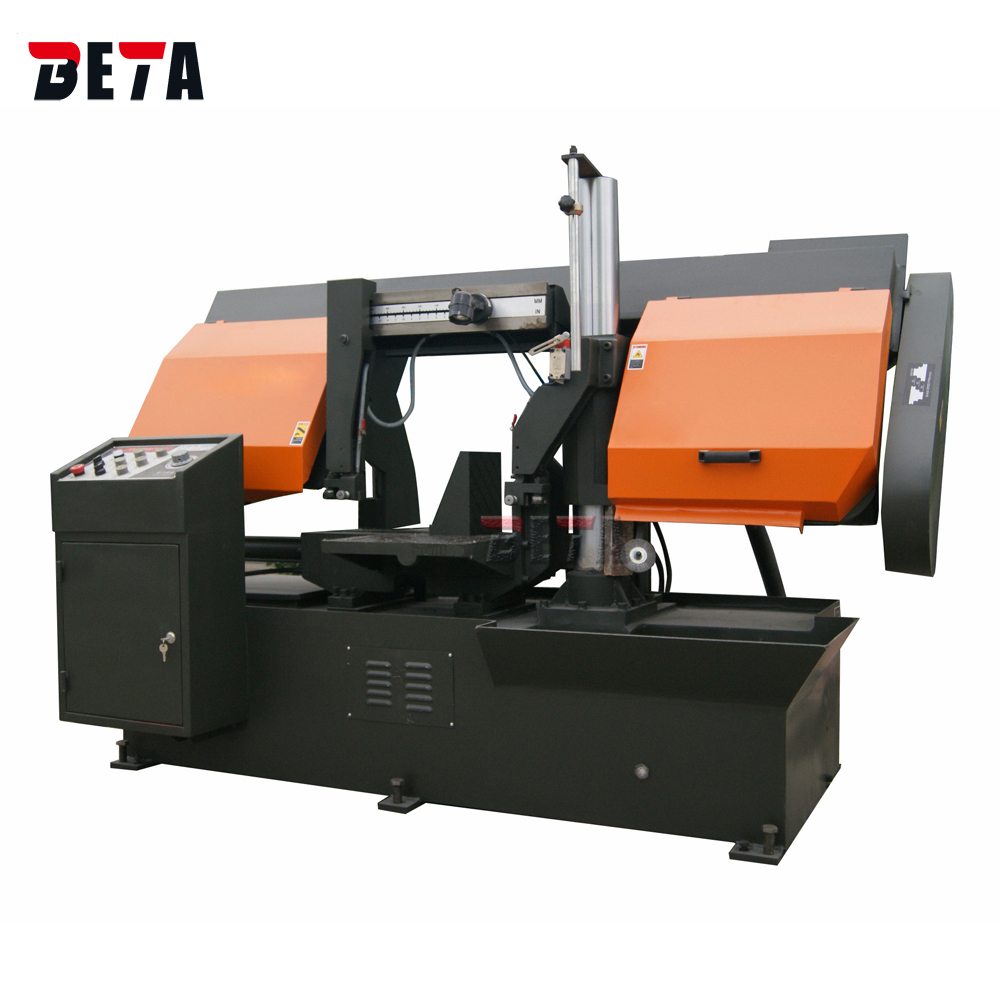

Horizontal band saw
GZ4240
Max. cutting diameter 400mm
​Hydraulic clamping
Manual blade tensioning
  • Features
  • Specification
  • CONFIGURATION

1. Double-column structure to ensure guiding accuracy, stable and reliable sawing.

2. Hydraulic clamping makes it easy to tighten the material, and the sawed workpiece will not loosen, so as to avoid pressure damage to the saw band and protect the saw band.

3. Single jaw hydraulic clamping, sawing can be minimized, reducing material loss.

4. The steel brush removes chips, effectively cleans the iron chips between the teeth, and prolongs the service life of the saw band.

5. The transmission mechanism of the sawing machine is precisely balanced and corrected to reduce vibration to ensure that the saw belt is not easy to break or pull the teeth.


Model

GZ4240

Cutting capacity

400mm,  400x400mm

Blade size

4570x34x1.1mm

Blade cutting speed

40/60/80 m/min

Main motor power

4 kw

Oil pump motor power

0.75 kw

Coolant pump motor power

0.09 kw

Clamping type

Hydraulic

Saw blade tension

Manual

Main drive structure

Worm gear

Net weight

1300 kg

Overall dimension

2200x1150x1650mm


Standard configuration:

Hydraulic clamping

Manual blade tensioning

4kw motor

Saw blade 1 piece

Hydraulic oil pump

Coolant water pump
