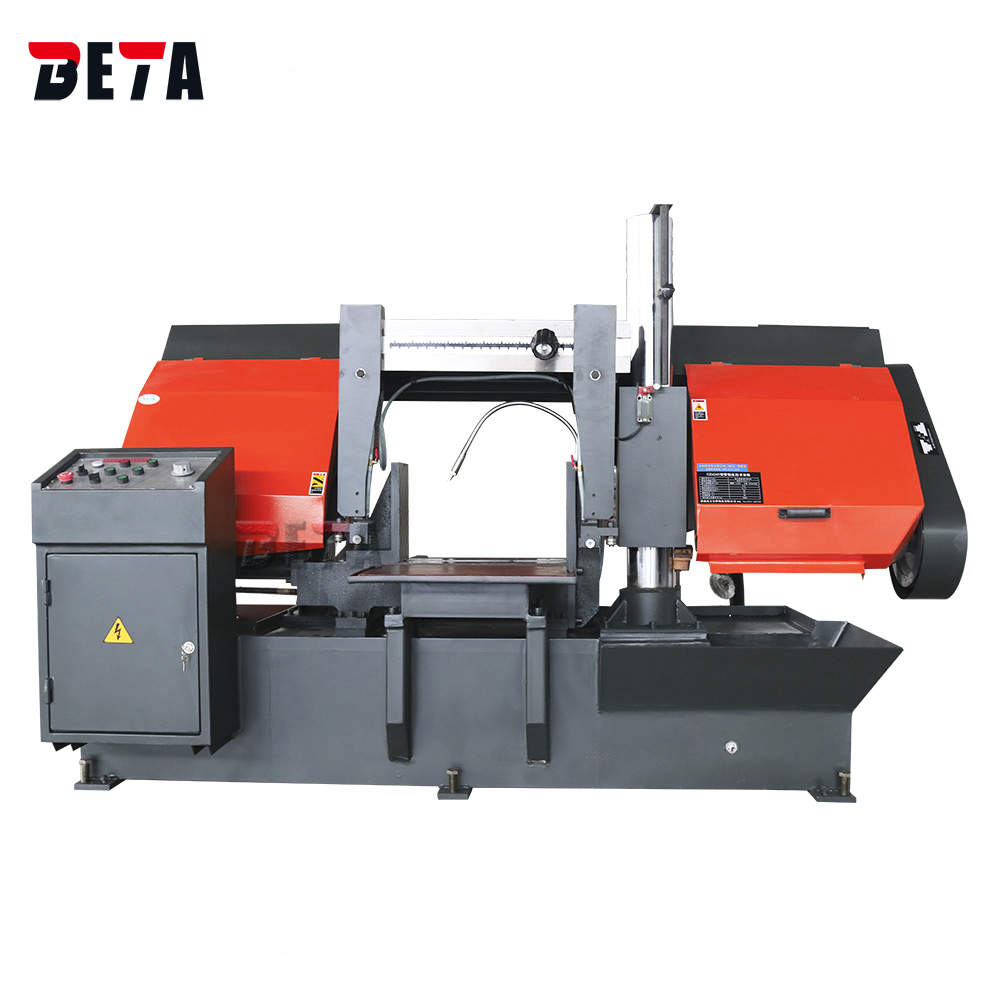

Horizontal band saw
GZ4245
Max. cutting diameter 450mm
​Hydraulic clamping
Manual blade tensioning
  • Features
  • Specification
  • CONFIGURATION

1. This machine adopts Taiwanese technology and double-pillar structure to ensure guiding accuracy and stable and reliable sawing;

2. Clamped by the vise, the sawed workpiece will not loosen, so as to avoid pressure damage to the saw band and protect the saw band;

3. The steel brush removes chips, effectively cleaning the iron chips between the teeth, and prolongs the service life of the saw band.

4. The transmission mechanism of the sawing machine is precisely balanced and corrected to reduce vibration and ensure that the saw belt is not easy to break or pull the teeth.


Model

GZ4245

Cutting capacity

450mm,  450x450mm

Blade size

4930x34x1.1mm

Blade cutting speed

40/60/80 m/min

Main motor power

4 kw

Oil pump motor power

0.75 kw

Coolant pump motor power

0.09 kw

Clamping type

Hydraulic

Saw blade tension

Manual

Main drive structure

Worm gear

Net weight

1600 kg

Overall dimension

2350x1150x1700 mm


Standard configuration:

Hydraulic clamping

Hydraulic blade tensioning

4kw motor

Saw blade 1 piece

Hydraulic oil pump

Coolant water pump
