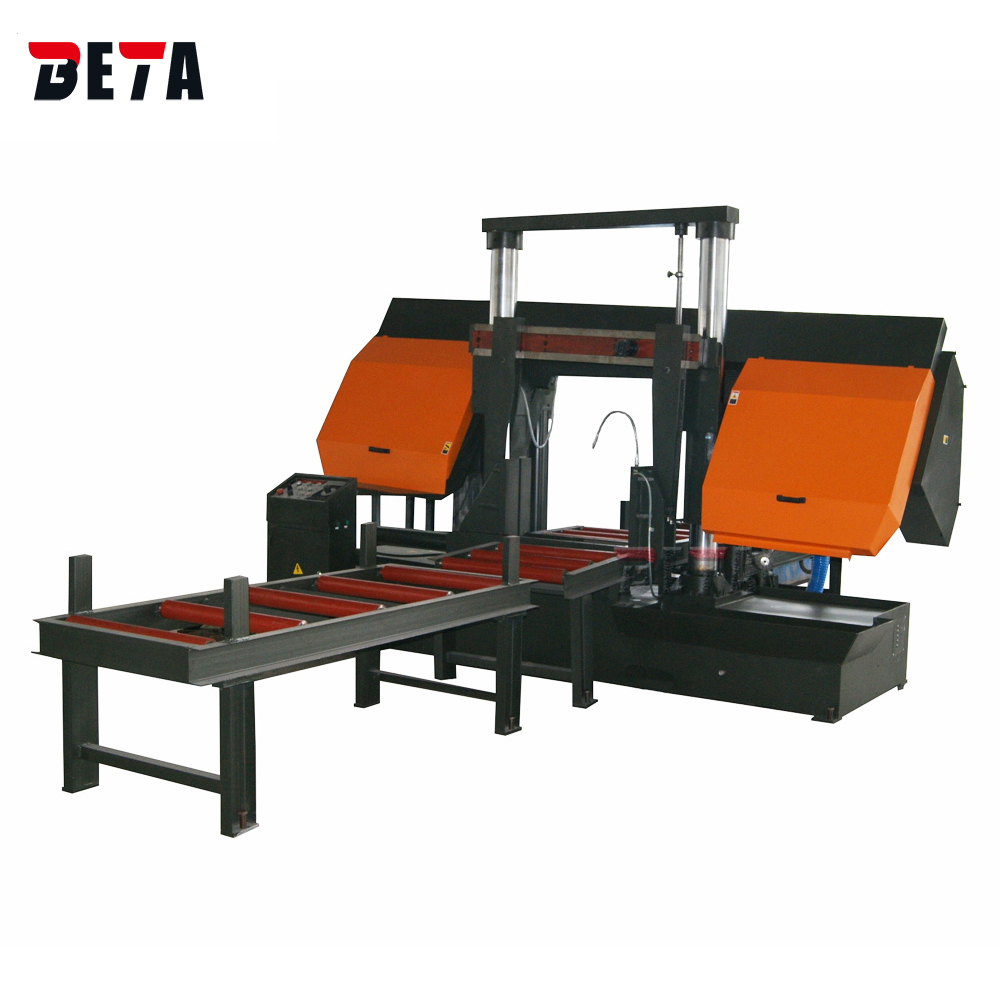

Horizontal band saw
GZ4270
Max. cutting diameter 700mm
​Hydraulic clamping
Hydraulic blade tensioning
frequency cutting speed
  • Features
  • Specification
  • CONFIGURATION

1. The structure of double cylinders and double cylinders and the extra-long sliding sleeve (with self-lubricating bearings) form a stable sawing structure to ensure guiding accuracy and stable and reliable sawing;

2. The saw band guide device is double-guided by hard alloy and rolling bearing, and the design is reasonable, which effectively extends the life of the saw band.

3. The performance of high-performance worm gear reducer, strong power, high reliability, precise balance correction, reduce noise and vibration.

4. Unique hydraulic system design, stable lowering speed, this precision system can prevent abnormal damage of saw blade and achieve ideal sawing effect.

5. Optional large-stroke electric roller material rack can quickly realize the movement and positioning of the workpiece, reduce the labor intensity of workers, and improve work efficiency.


Model

GZ4270

Cutting capacity

 Round 700mm,  square 700*700mm

Blade size

7400*54*1.6 mm

Blade cutting speed

30/45/65/75 m/min

Main motor power

7.5 kw

Oil pump motor power

1.5 kw

Coolant pump motor power

0.12 kw

Clamping type

Hydraulic

Saw blade tension

Hydraulic

Main drive structure

Worm gear

Net weight

2800 kg

Overall dimension

4000*1600*2100 mm


Standard configuration:

Hydraulic clamping

Hydraulic blade tensioning

7.5kw motor

Saw blade 1 piece

Hydraulic oil pump

Coolant water pump
