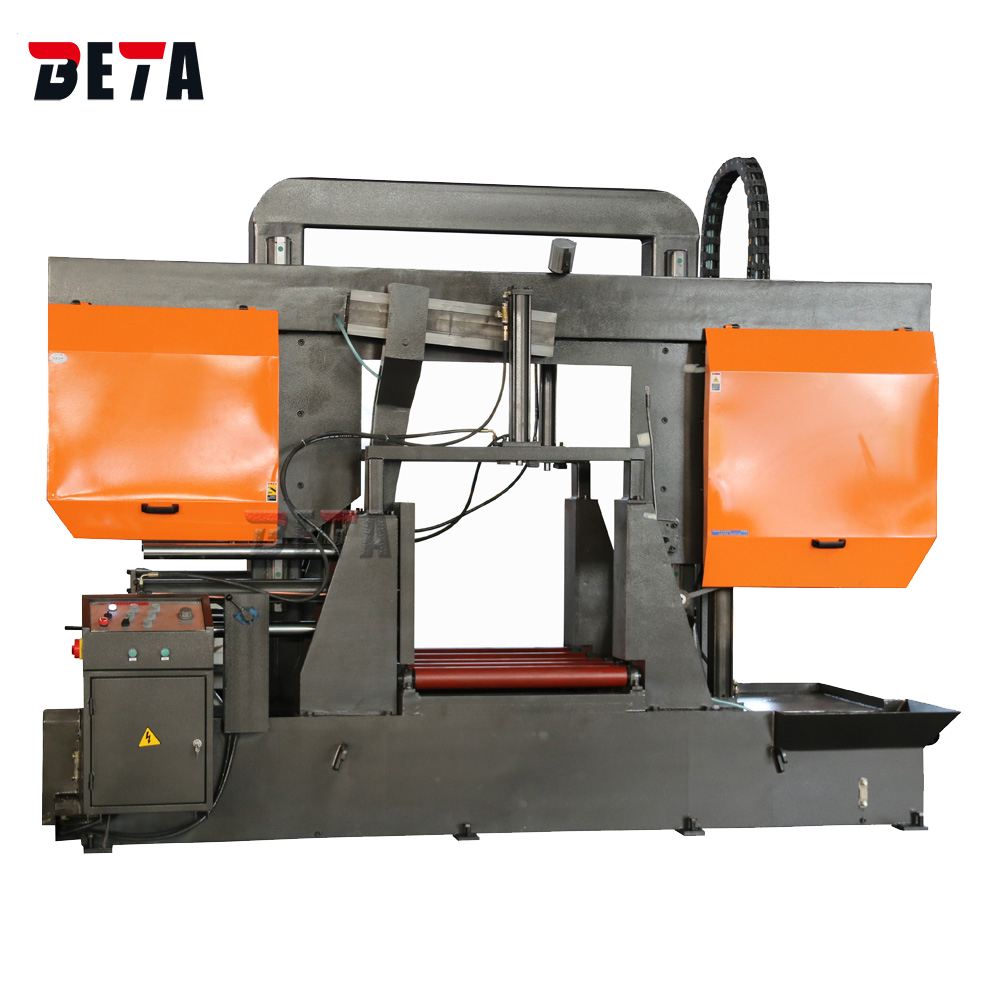

Horizontal band saw
GZ4280
Max. cutting diameter 800mm
​Hydraulic clamping
Hydraulic blade tensioning
frequency cutting speed
  • Features
  • Specification
  • CONFIGURATION

1. The structure of double cylinders and double cylinders and the extra-long sliding sleeve (with self-lubricating bearings) form a stable sawing structure to ensure guiding accuracy and stable and reliable sawing;

2. The saw band guide device is double-guided by hard alloy and rolling bearing, and the design is reasonable, which effectively extends the life of the saw band.

3. The performance of high-performance worm gear reducer, strong power, high reliability, precise balance correction, reduce noise and vibration.

4. Unique hydraulic system design, stable lowering speed, this precision system can prevent abnormal damage of saw blade and achieve ideal sawing effect.

5. Optional large-stroke electric roller material rack can quickly realize the movement and positioning of the workpiece, reduce the labor intensity of workers, and improve work efficiency.


Model

GZ4280

Cutting capacity

 Round 800mm,  square 800*800mm

Blade size

8800*67*1.6 mm

Blade cutting speed

15-80 m/min Frequency

Main motor power

11 kw

Oil pump motor power

1.5 kw

Coolant pump motor power

0.12 kw

Clamping type

Hydraulic

Saw blade tension

Hydraulic

Main drive structure

Worm gear

Net weight

4800 kg

Overall dimension

4500*1700*2480 mm


Standard configuration:

Hydraulic clamping

Hydraulic blade tensioning

Frequency cutting speed 15-80 meters/min

11kw motor

Saw blade 1 piece

Hydraulic oil pump

Coolant water pump
