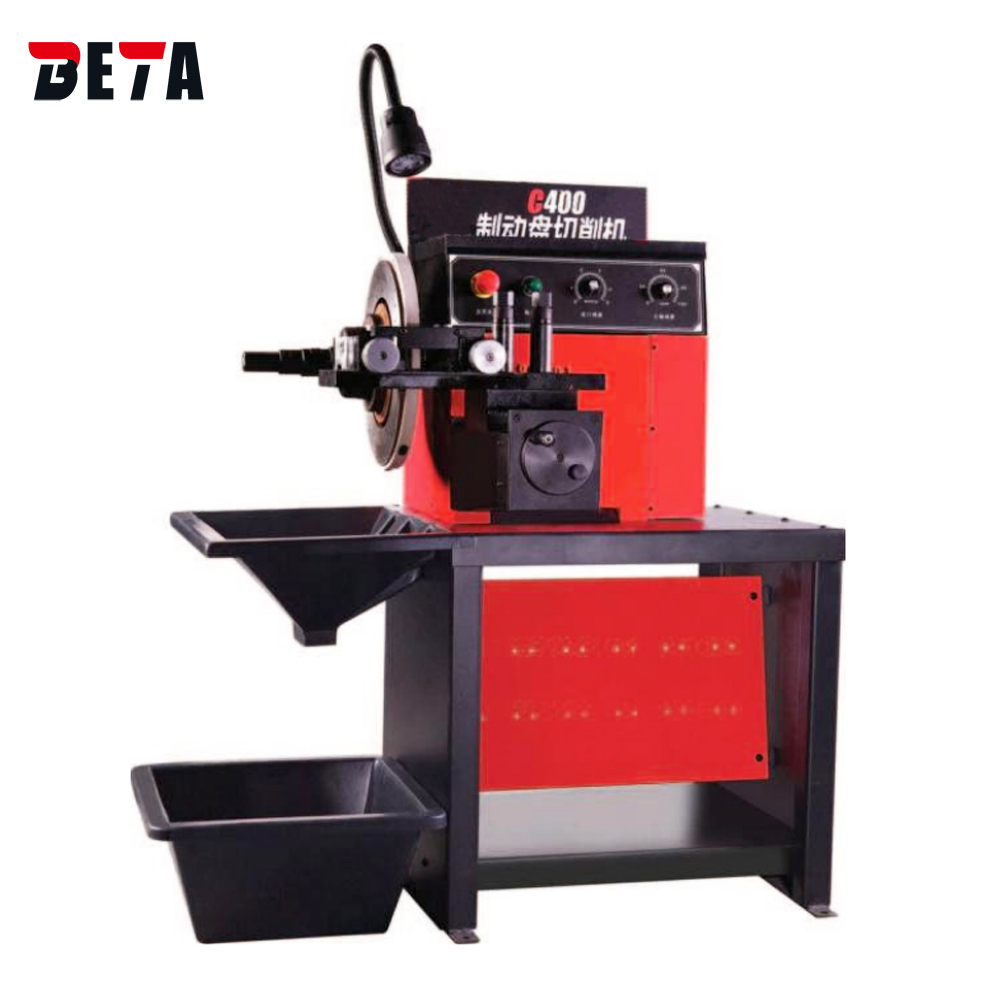

Brake drum and disc lathe
C400
Processing diameter:
brake disc 150-381 mm
Variable spindle speed
  • Features
  • Specification
  • CONFIGURATION

1.  With its rational construction, excellent performance and handiness, C400 is the brake lathe especially designed to cut discs.

2. The spindle and feeding are both driven by the independent motors, in order to achieve their infinitely variable speed.

3. The 6-edge blades are more efficient so as to increase the service life.

4. The customer can get the frequently-used accessories and tools easily from the hanging board and the tool box.

5. The big transparent safety shield can prevent the operator from the hazards.

6. C400 is equipped with a complete set of accessories to meet the needs of a variety of vehicles.

7. Accessories of special vehicles can be customized.

8. In all,  C400 is the desirable maintenance equipment in 4S stores and the medium- small repairing factories.


Model

C400

Spindle speed

0-120 rpm

Disc travel

110 mm

Disc diameter

150-381 mm

Motor

110V/220V/380V   60-60HZ

Feed speed

0-46.8 mm

Max. Cutting depth

0.2 mm

Disc thickness

40 mm

Dimension

1150*810*1200 mm

Gross weight

247 kg


Standard accessories:

arbor

adapter

wrench

spring

taper cone
