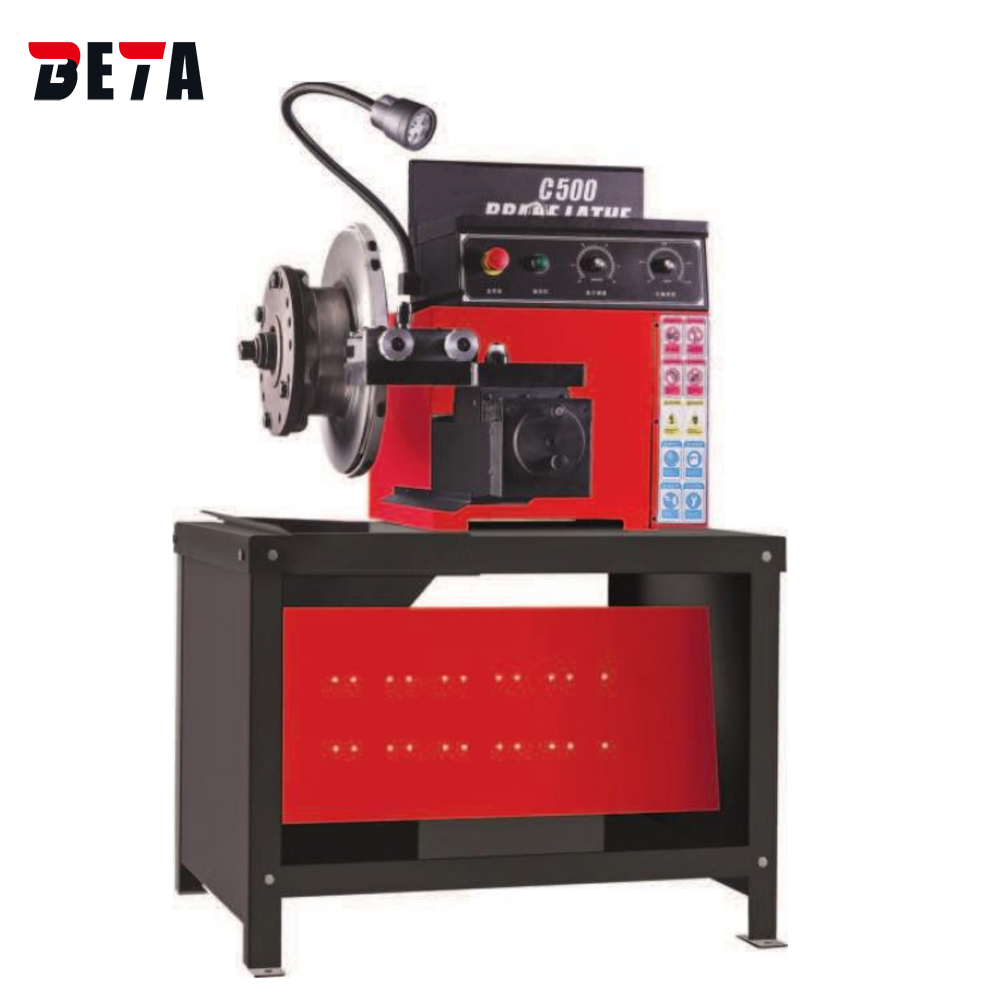

Brake drum and disc lathe
C500
Processing diameter:
brake disc 240-483 mm
Variable spindle speed
  • Features
  • Specification
  • CONFIGURATION

1.The machine is suitable for all kinds of vehicles, including buses, trucks, SUVs and so on.

2.The machine is equipped with a 1.5KW conversion motor.

3.Two working lamps will keep the work area lighted even in dark places.

4.The work bench will reduce the vibration and chattering.

5.The special holder and blade ensure the perfect finish.

6.Variable spindle speed and feed speed provide the high efficiency.


Model

C500

Spindle speed

0-120 rpm

Disc travel

130 mm

Disc diameter

240-483 mm

Motor

220V/380V   50-60HZ   1.5 kw

Feed speed

0-46.8 mm

Max. Cutting depth

0.6 mm

Disc thickness

50 mm

Dimension

1130*1030*1300 mm

Gross weight

300 kg


Standard accessories:

arbor

adapter

wrench

spring

taper cone
