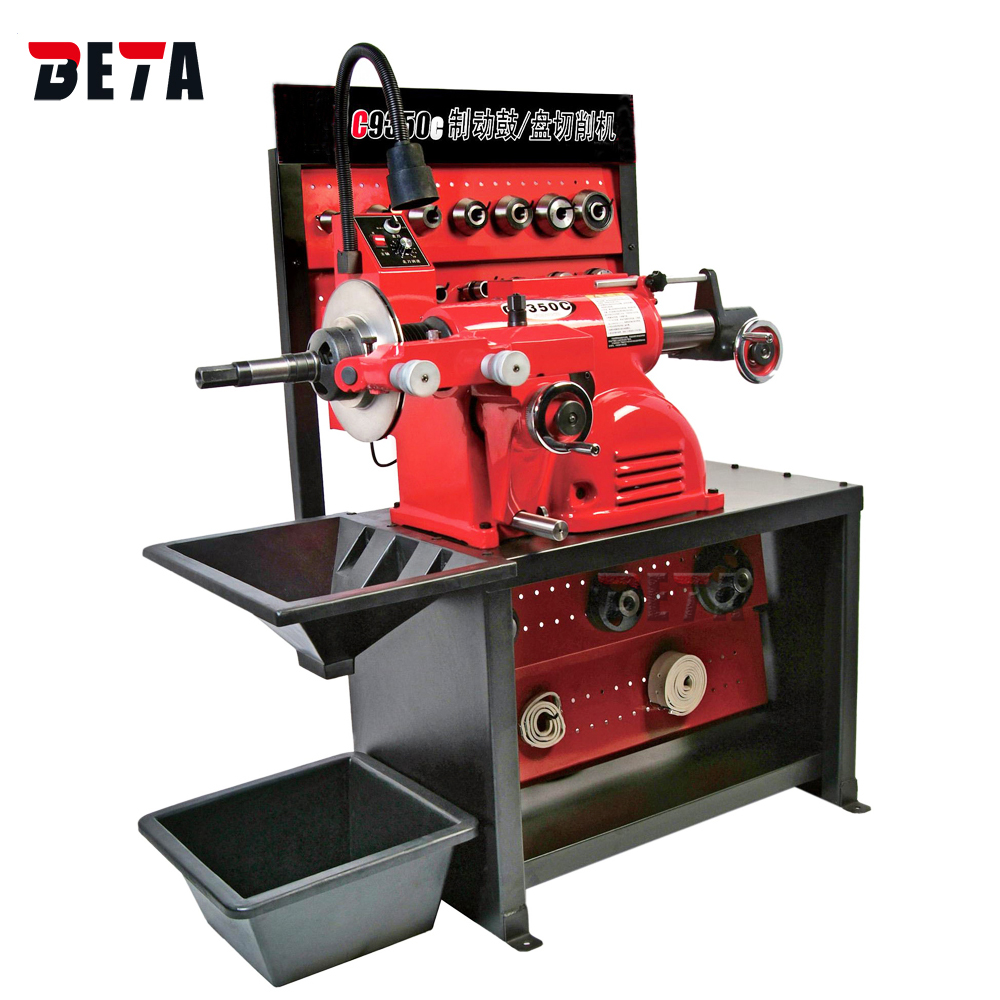

Brake drum and disc lathe
C9350C
DC motor
Variable spindle speed
Variable feeding speed
  • Features
  • Specification
  • CONFIGURATION

1. DC motors designed to meet the demanding requirement of industrial motion

control.

2. “Change Adapter” system to eliminate the need for conventional bell

clamps and cones.

3. The precision twin cutter tools and a quick drum to rotor changeover to help increase your service capability.

4. Infinitely variable spindle and cross feed speed settings for quick rough and precision finish cuts.

5. Positive rake cutter tip angle provides for a one pass finish virtually every time, allowing you to complete your work fast.


Model

C9350C

Spindle travel

175 mm

Spindle speed

70, 88, 118 rpm

Hand wheel graduation

0.05 mm

Spindle feed speed

0.05-0.5 mm/Rev

Cross feed speed

0.05-0.5 mm/Rev

Rotor diameter

180-381 mm

Rotor thickness

48 mm

Drum diameter

152-450 mm

Drum depth

175 mm

Motor

110V/220V/380V   50-60HZ

Dimension

1010*950*1150 mm

Gross weight

290 kg

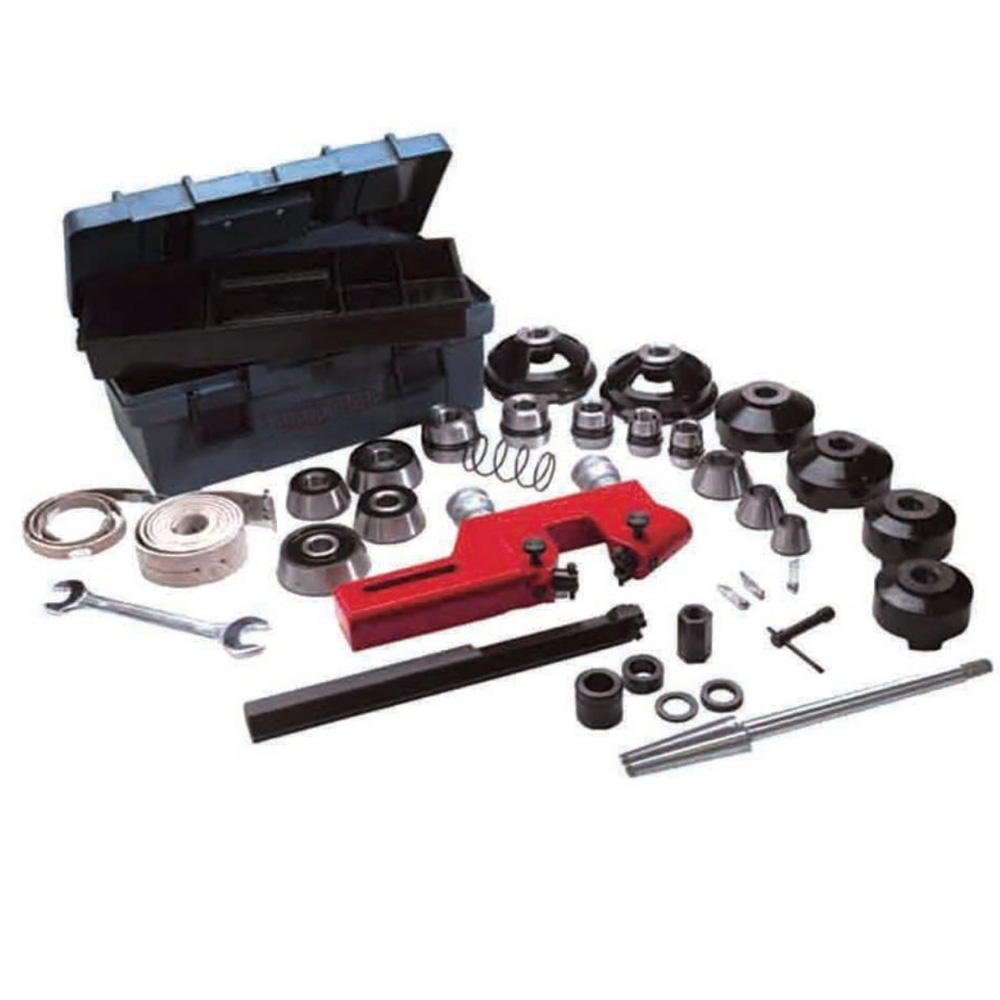

Standard accessories:

adapter

taper cone

clamp

spring

wrenches
